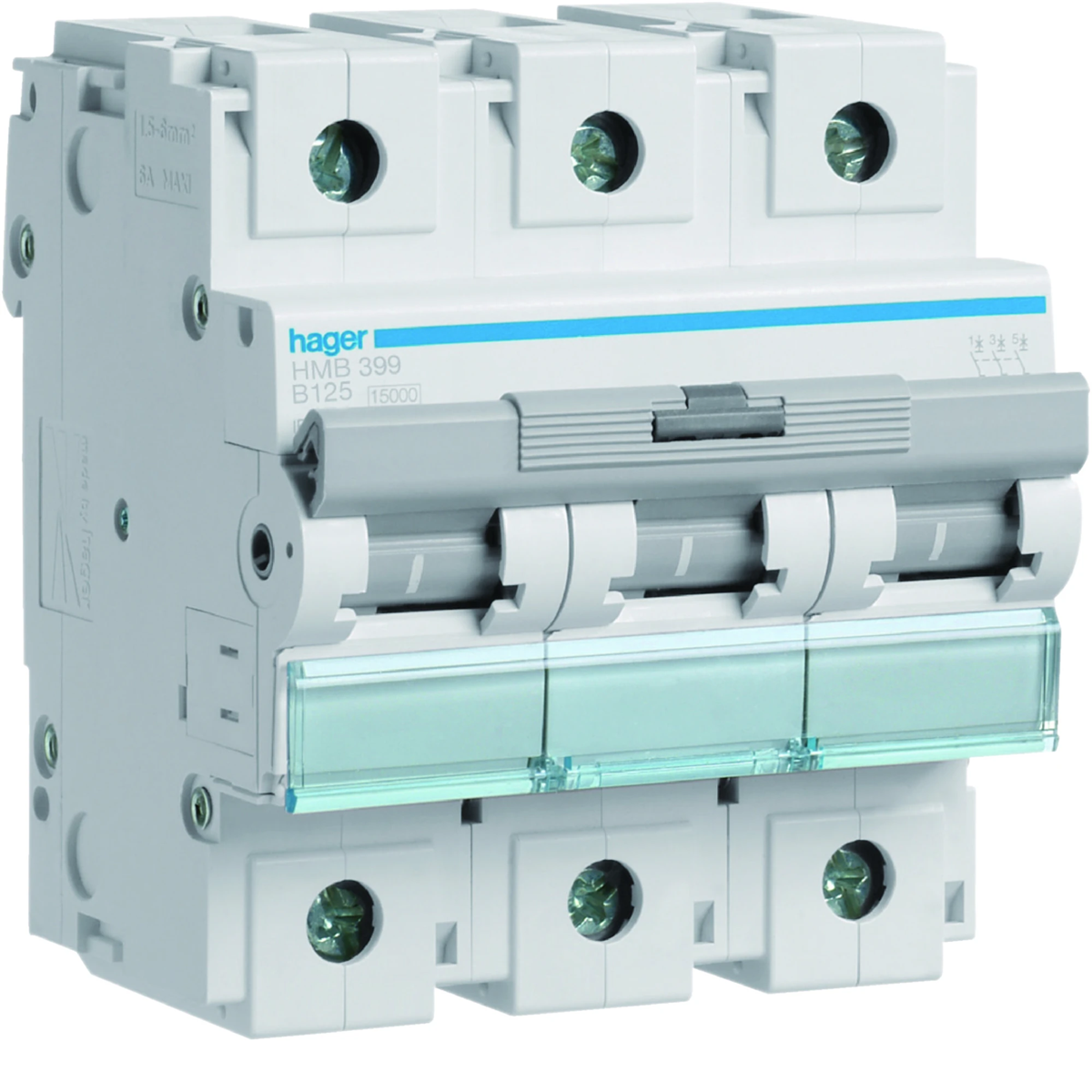

Miniature circuit breaker 15kA B 3-pole 125A HMB399

local index:
ABB036HAGE
Catalog No:
HMB399
EAN code:
3250613230098
Manufacturer: HAGER
Characteristic: b
Number of modules: 4.5
Number of poles: 3
Price:
276,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Miniature circuit breaker 15kA B 3-pole 125A

Technical data

  • Characteristic
    b
  • Number of poles
    3
  • Rated insulation voltage [V]
    500
  • power loss [W]
    13.2
  • Number of modules
    4.5
  • Number of modules
    4.5
  • Rated voltage [V]
    400
  • Rated current [A]
    125
  • Rated short-circuit breaking capacity [kA]
    15
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    3
  • Rated current
    125 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    15 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    15 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    4.5
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 70 mm²
  • Release characteristic
    B
  • Number of protected poles
    3
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 50 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 504 pcs.
Weight (kg) 0,704 0,705 8,680 387,560
Width (m) 0,080 0,080 0,310 0,800
Length (m) 0,090 0,100 0,105 1,050
Depth (m) 0,072 0,095 0,355 1,200
