Miniature circuit breaker 10kA D unipolar 4A NDN104

Name: Miniature circuit breaker 10kA D unipolar 4A
Brand: HAGER
SKU: ABD047HAGE
Price: 37.69 PLN

Indeks lokalny:

ABD047HAGE

Nr katalogowy:

NDN104

Kod EAN:

3250614611421

Miniature circuit breaker 10kA D unipolar 4A

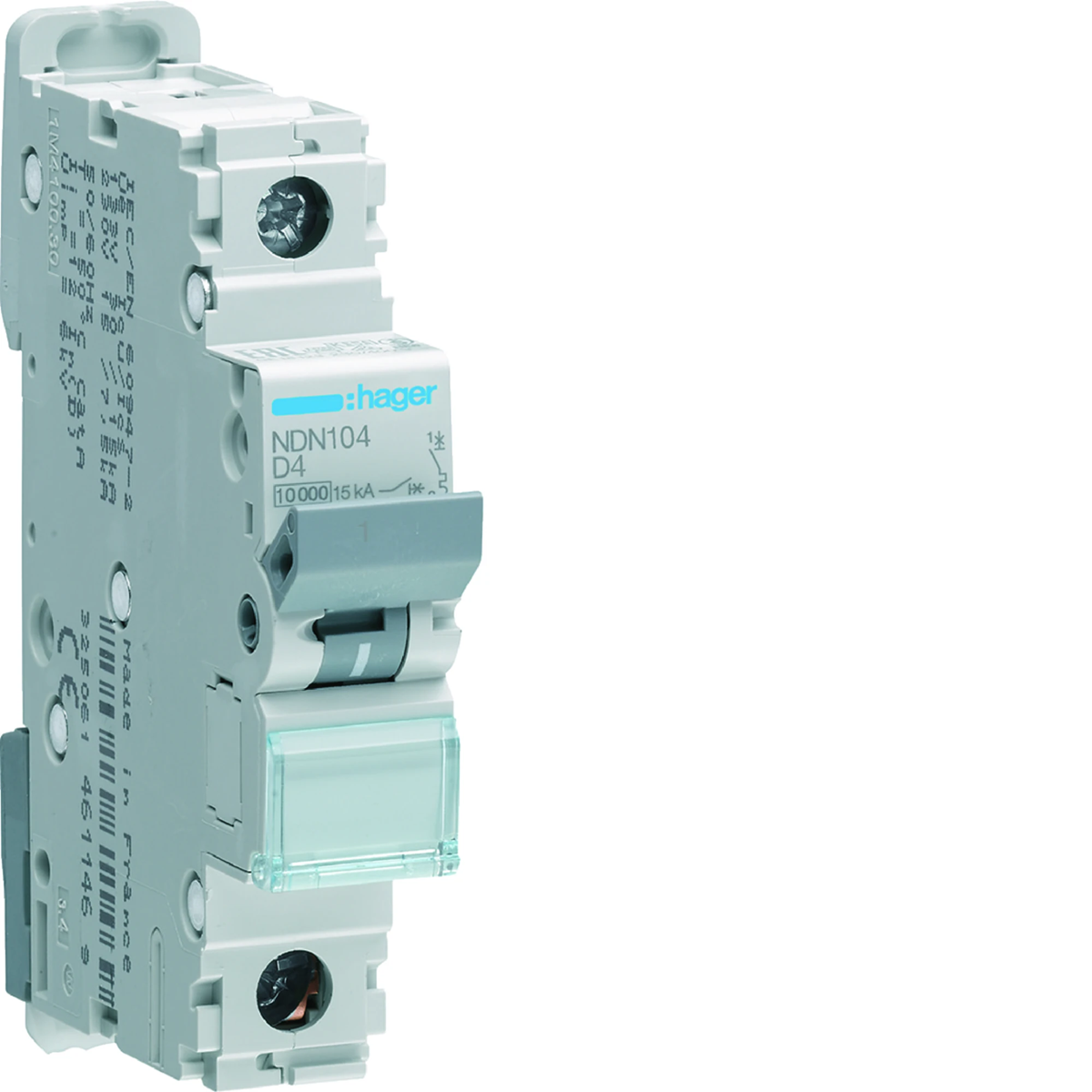

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Characteristic: d

Depth [mm]: 70

Number of modules: 1

Zobacz cały opis

Cena:

37,69 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 10 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Miniature circuit breakers 0.5 - 63 A. Type B, C and D. Rated short-circuit breaking capacity 10000 A
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm2, strand up to 25 mm2,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dane techniczne

Characteristic

d
Number of modules

1
Rated voltage [V]

230
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

10
PKWIU

27.12.22.0

Depth [mm]

70
Number of poles

1
Rated current [A]

4
Height [mm]

83
Number of modules

1

Pozostałe dane techniczne

Built-in depth

70 mm
Number of poles (total)

1
Rated current

4 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Release characteristic

D
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
