Miniature circuit breaker 10kA D unipolar 10A NDN110

Name: Miniature circuit breaker 10kA D unipolar 10A
Brand: HAGER
SKU: ABD109HAGE
Price: 6.42 PLN
Availability: InStock

local index:

ABD109HAGE

Catalog No:

NDN110

EAN code:

3250614611445

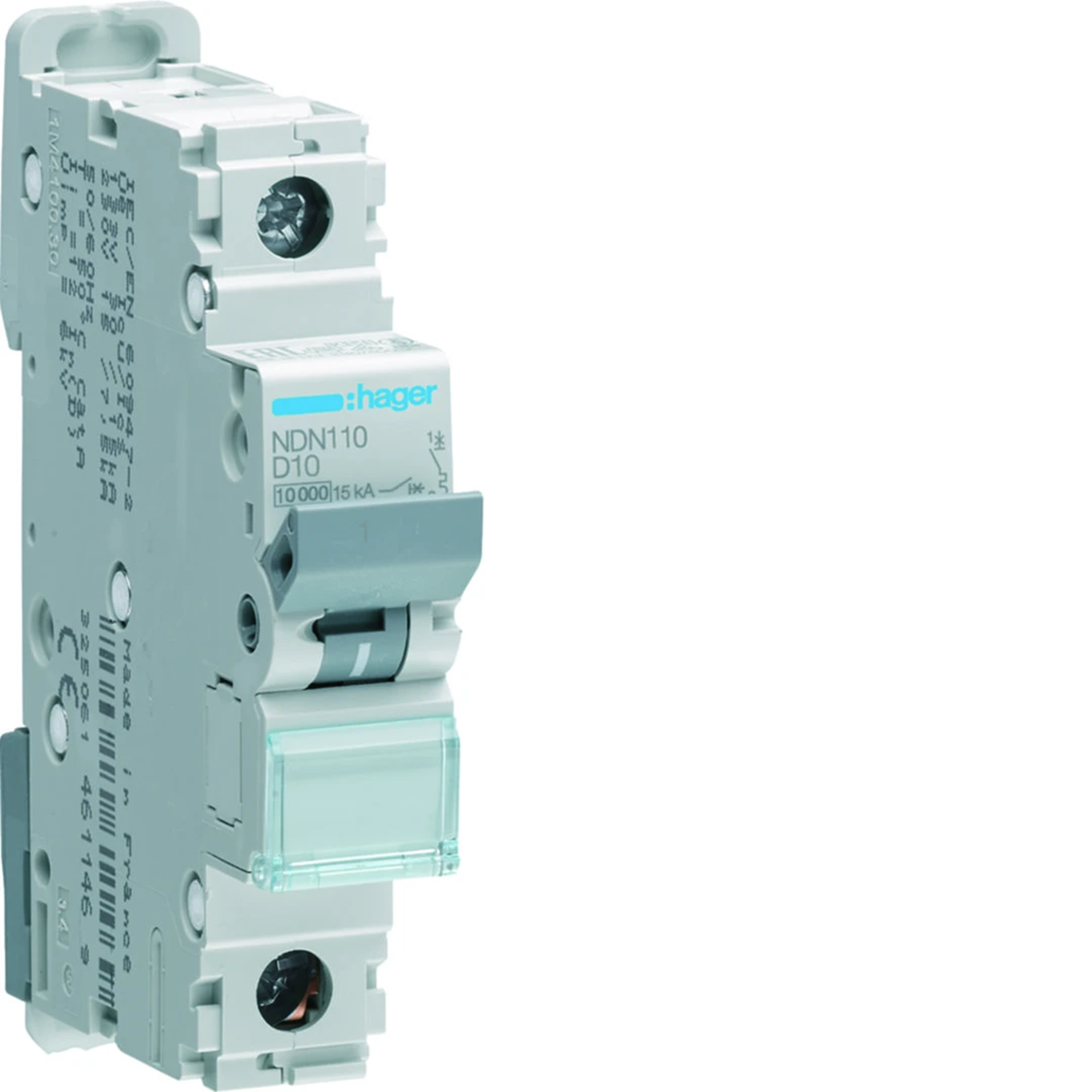

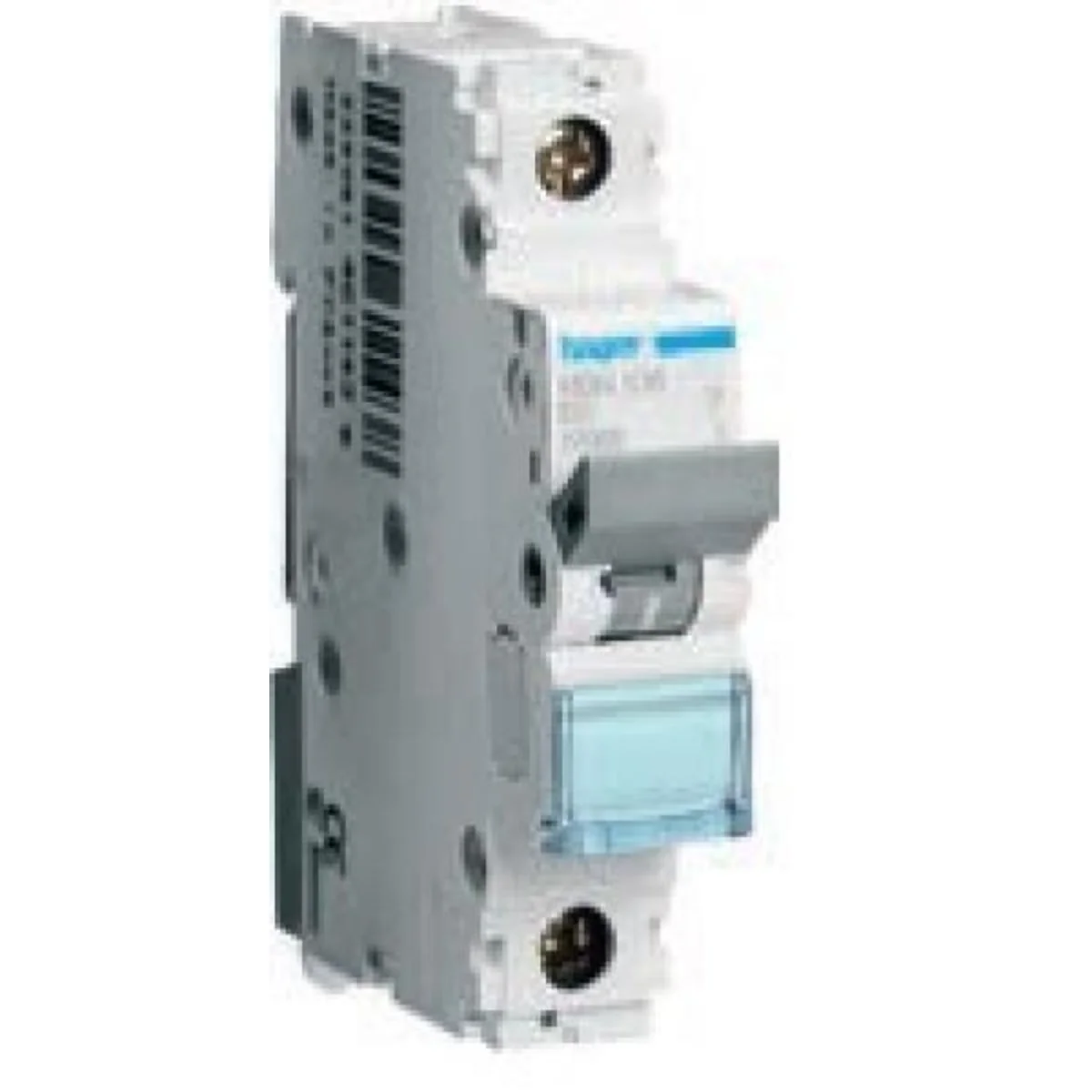

Miniature circuit breaker 10kA D unipolar 10A

Click on the photo to enlarge

Manufacturer: HAGER

Characteristic: d

Depth [mm]: 70

Number of modules: 1

See full description

Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Outlet

Price:

6,42 €

gross / pcs.

(including VAT 23%)

Last lowest price: 26,62 € gross

Base price: 26,59 € gross -76%

Accessible 1 pcs.

Quantity pcs.

(multiplicity:

)

It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Miniature circuit breakers 0.5 - 63 A. Type B, C and D. Rated short-circuit breaking capacity 10000 A
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm2, strand up to 25 mm2,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

Characteristic

d
Number of modules

1
Rated voltage [V]

230
Rated current [A]

10
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

10
PKWIU

27.12.22.0

Depth [mm]

70
Number of poles

1
Rated insulation voltage [V]

500
Power dissipation [W]

2.1
Height [mm]

83
Number of modules

1

Other technical data

Built-in depth

70 mm
Number of poles (total)

1
Rated current

10 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Release characteristic

D
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	144 pcs.	3456 pcs.
Weight (kg)	0,102	1,311	16,143	410,432
Width (m)	0,018	0,097	0,321	0,800
Length (m)	0,087	0,082	0,237	1,098
Depth (m)	0,074	0,226	0,368	1,200
