Miniature circuit breaker 10kA D unipolar 0 5A NDN100

Name: Miniature circuit breaker 10kA D unipolar 0 5A
Brand: HAGER
SKU: ABD100HAGE
Price: 156.23 PLN

Lokaler Index:

ABD100HAGE

Katalognummer:

NDN100

EAN-Code:

3250614611384

Miniature circuit breaker 10kA D unipolar 0 5A

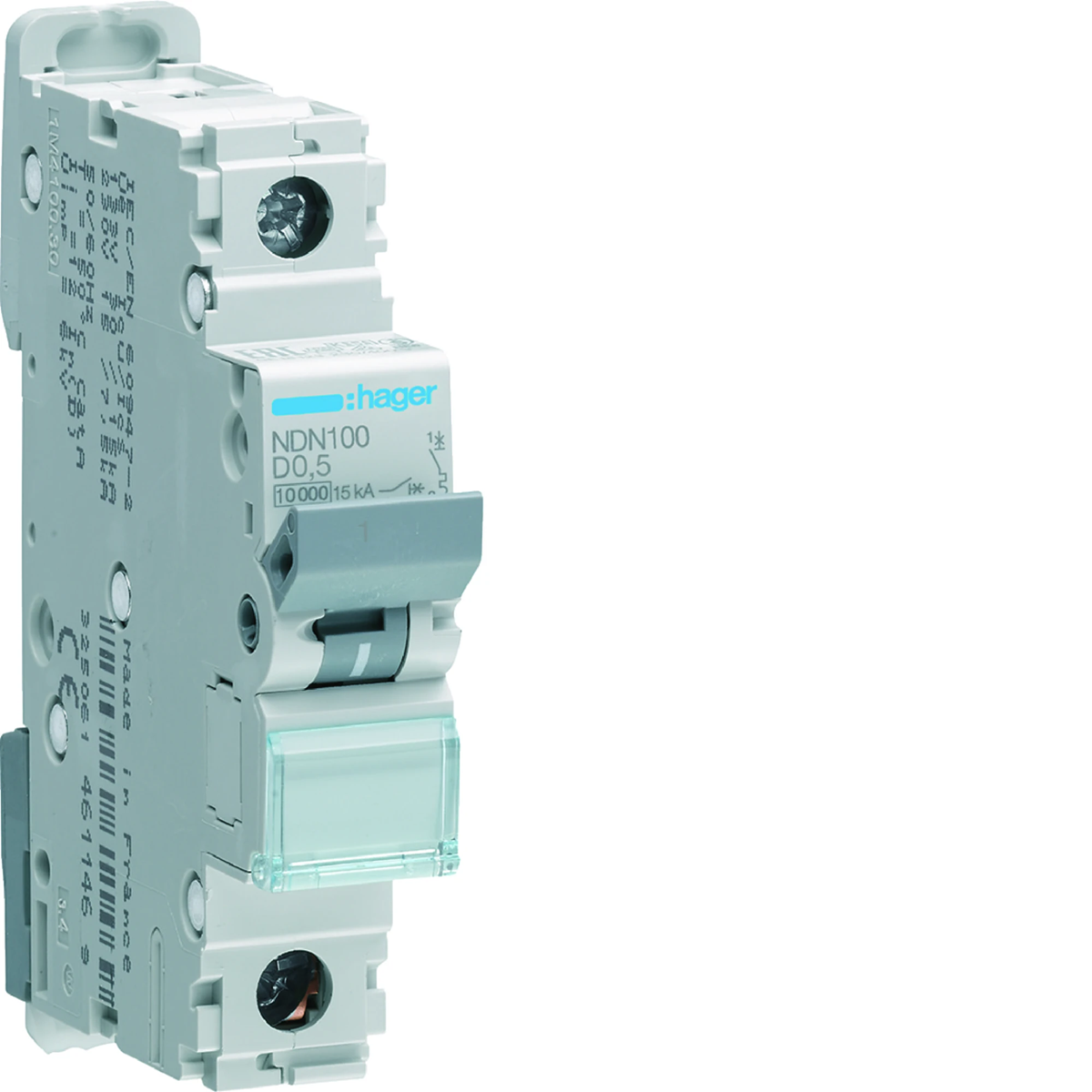

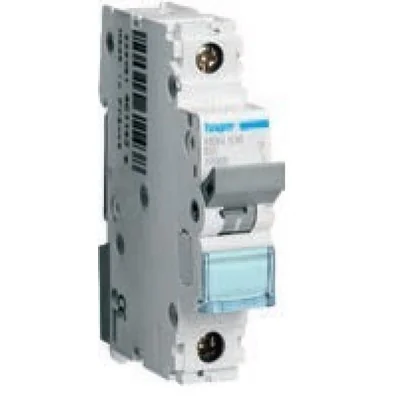

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Characteristic: d

Depth [mm]: 70

Number of modules: 1

Siehe vollständige Beschreibung

Preis:

156,23 zł

gross / stk.

(inklusive MwSt 23%)

Lieferung in 3h

bis zu 10 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Miniature circuit breakers 0.5 - 63 A. Type B, C and D. Rated short-circuit breaking capacity 10000 A
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm2, strand up to 25 mm2,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technische Daten

Characteristic

d
Number of modules

1
Rated voltage [V]

230
Power dissipation [W]

1.4
Height [mm]

83
Number of modules

1

Depth [mm]

70
Number of poles

1
Rated current [A]

0.5
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

10
PKWIU

27.12.22.0

Weitere technische Daten

Built-in depth

70 mm
Number of poles (total)

1
Rated current

0.5 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Release characteristic

D
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Hersteller-Details

Hersteller

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-Mail

wsparcie.klienta@hager.com

Großpackungen

Eine Art Paket	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Menge	12 stk.	144 stk.	3456 stk.	12 stk.	144 stk.	3456 stk.
Gewicht (kg)	1,290	15,550	373,240	1,290	15,550	373,240
Breite (m)	0,090	0,310	0,800	0,090	0,310	0,800
Länge (m)	0,080	0,230	1,090	0,080	0,230	1,090
Tiefe (m)	0,220	0,360	1,200	0,220	0,360	1,200
