Miniature circuit breaker, 10kA, C, 4-pole, 63A char. c NCN463

Name: Miniature circuit breaker, 10kA, C, 4-pole, 63A char. c
Brand: HAGER
SKU: ABC021HAGE
Price: 87.98 PLN

local index:

ABC021HAGE

Catalog No:

NCN463

EAN code:

3250614615139

Miniature circuit breaker, 10kA, C, 4-pole, 63A char. c

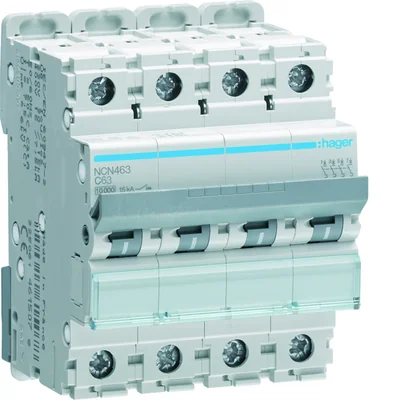

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 50/60

Depth [mm]: 70

Number of poles: 4

See full description

Price:

87,98 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Protecting the electrical installation against the effects of short circuits and overloads, they can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Circuit breakers overcurrent 0.5 - 63 A. Type B, C and D
Rated short-circuit breaking capacity 10000 A:
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage:
230/400 V AC - single-pole circuit breaker,
400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage clamps: wire up to 35 mm², stranded up to 25 mm²,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

Rated frequency [Hz]

50/60
Number of poles

4
Connection

With a screw
power loss [W]

25.7
Type

c
Electrical endurance (number of cycles)

4000
Rated short-circuit breaking capacity [kA]

10
PKWIU

27.12.22.0

Depth [mm]

70
Rated insulation voltage [V]

500
Rated current [A]

63
Width [mm]

70
Height [mm]

83
Mechanical durability (number of cycles)

20000
Number of modules

4

Other technical data

Built-in depth

70 mm
Number of poles (total)

4
Rated current

63 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

C
Number of protected poles

4
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

30 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	3 pcs.	36 pcs.	864 pcs.	3 pcs.	36 pcs.	864 pcs.
Weight (kg)	1,480	18,111	457,664	1,480	18,111	457,664
Width (m)	0,097	0,316	0,800	0,097	0,316	0,800
Length (m)	0,082	0,234	1,086	0,082	0,234	1,086
Depth (m)	0,228	0,364	1,200	0,228	0,364	1,200
