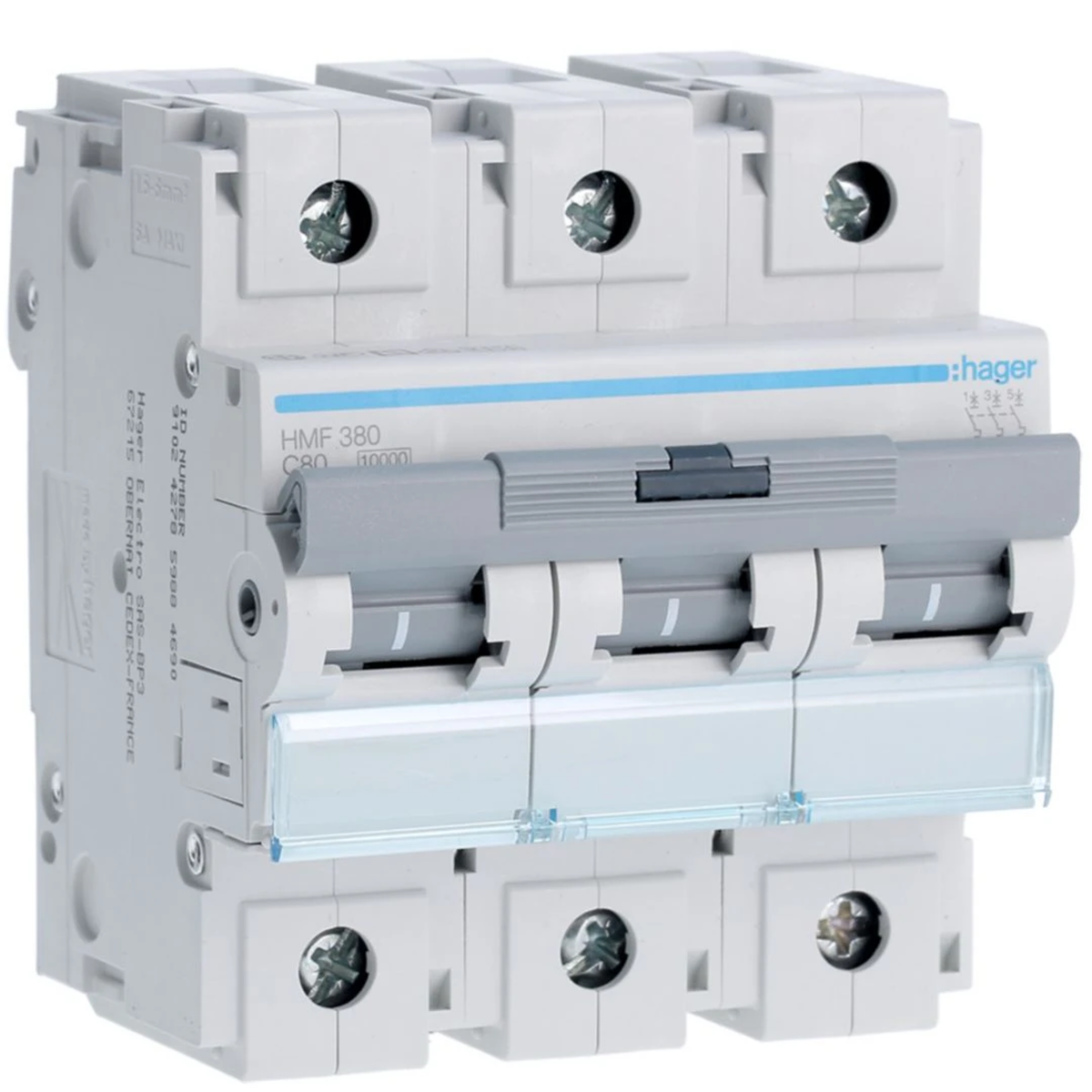

Miniature circuit breaker 10kA C 3-pole 80A HMF380

local index:
ABC162HAGE
Catalog No:
HMF380
EAN code:
3250613231033
Manufacturer: HAGER
Characteristic: c
Number of modules: 4.5
Number of poles: 3
Price:
231,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Miniature circuit breakers 80 - 100 A. Type B, C and D Rated short-circuit breaking capacity 10000 A
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm2, strand up to 25 mm2,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

  • Characteristic
    c
  • Number of poles
    3
  • Rated insulation voltage [V]
    500
  • Rated short-circuit breaking capacity [kA]
    10
  • PKWIU
    27.12.22.0
  • Number of modules
    4.5
  • Rated voltage [V]
    400
  • Rated current [A]
    80
  • Number of modules
    4.5

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    3
  • Rated current
    80 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    4.5
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 70 mm²
  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    10 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 50 mm²

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 504 pcs. 1 pcs. 12 pcs. 504 pcs.
Weight (kg) 0,670 8,140 342,210 0,670 8,140 342,210
Width (m) 0,080 0,310 0,800 0,080 0,310 0,800
Length (m) 0,100 0,100 0,790 0,100 0,100 0,790
Depth (m) 0,100 0,360 1,200 0,100 0,360 1,200
