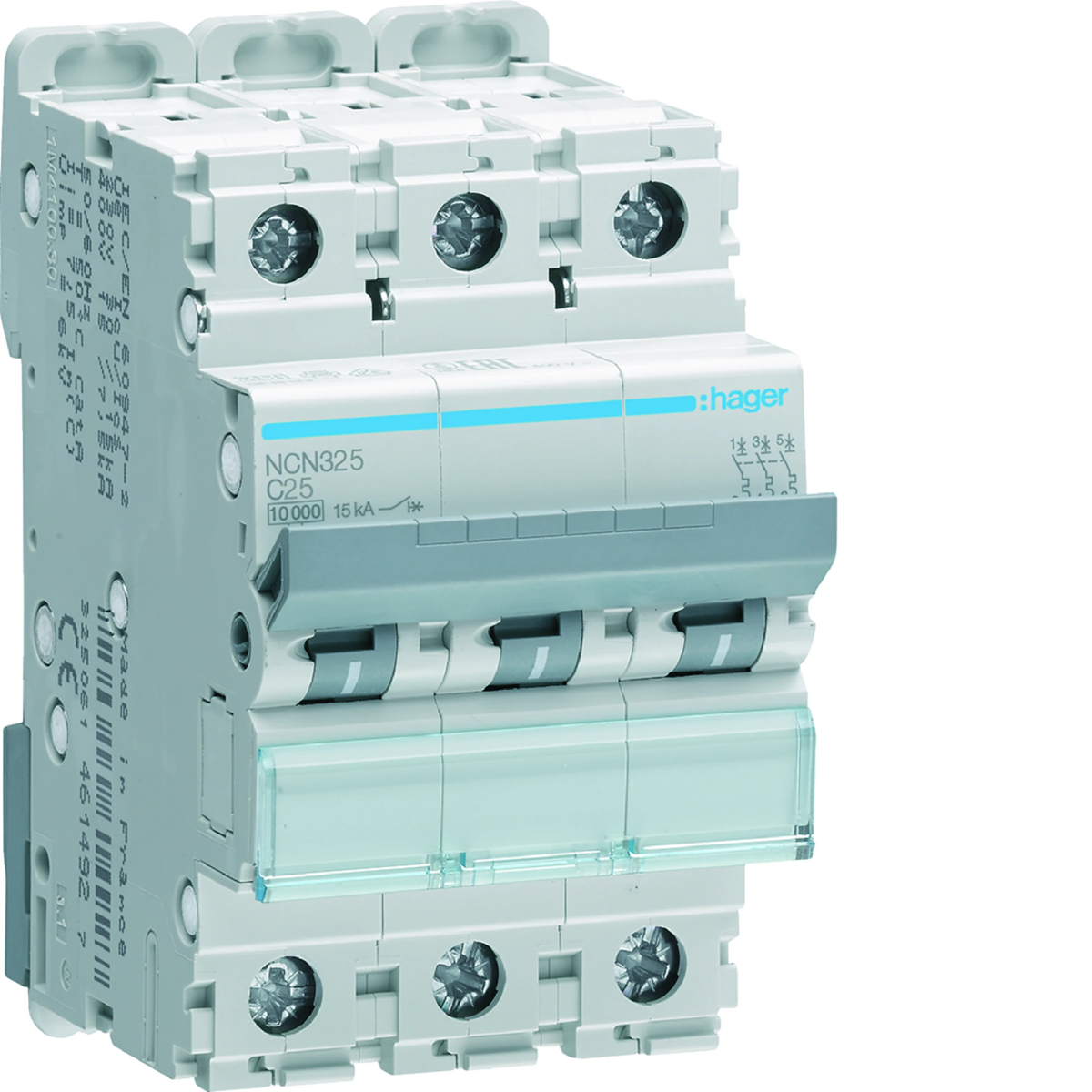

Miniature circuit breaker 10kA C 3-pole 25A NCN325

Name: Miniature circuit breaker 10kA C 3-pole 25A
Brand: HAGER
SKU: ABC171HAGE
Price: 45.30 PLN

Indice locale:

ABC171HAGE

Numero di catalogo:

NCN325

Codice EAN:

3250614614941

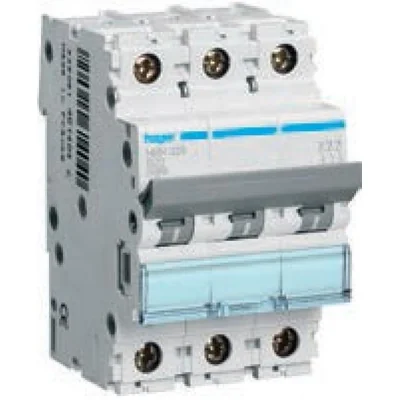

Miniature circuit breaker 10kA C 3-pole 25A

Clicca sulla foto per ingrandire

Produttore: HAGER

Characteristic: c

Depth [mm]: 70

Rated voltage [V]: 230

Vedi la descrizione completa

Prezzo:

45,30 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 10 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Miniature circuit breakers 25 A. Type B, C and D Rated short-circuit breaking capacity 10000 A
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm2, strand up to 25 mm2,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Dati tecnici

Characteristic

c
Rated voltage [V]

230
Rated current [A]

25
Width [mm]

52.5
Rated short-circuit breaking capacity [kA]

10

Depth [mm]

70
Rated insulation voltage [V]

500
Power dissipation [W]

10.5
Height [mm]

83
PKWIU

27.12.22.0

Altri dati tecnici

Built-in depth

70 mm
Number of poles (total)

3
Rated current

25 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

C
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

30 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Dettagli del produttore

Produttore

HAGER POLO Sp. z o. o.
Indirizzo

43-100 Tychy Fabryczna 10
NIP

6460015532

Imballaggio sfuso

Una specie di pacchetto	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantità	4 pezzi	48 pezzi	1152 pezzi	4 pezzi	48 pezzi	1152 pezzi
Peso (kg)	1,395	17,120	435,880	1,395	17,120	435,880
Larghezza (m)	0,100	0,315	0,800	0,100	0,315	0,800
Lunghezza (m)	0,085	0,210	1,050	0,085	0,210	1,050
Profondità (m)	0,225	0,360	1,200	0,225	0,360	1,200
