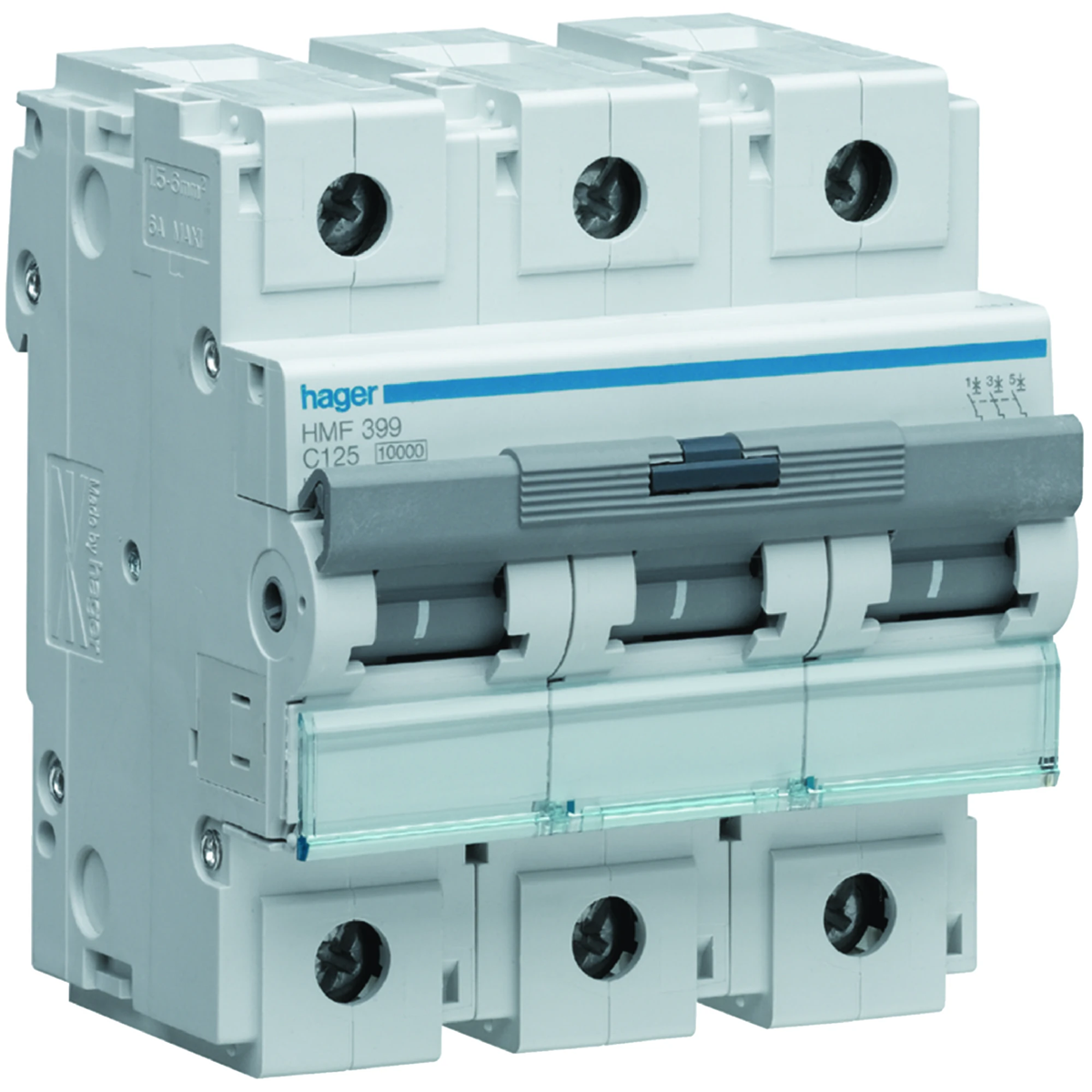

Miniature circuit breaker, 10kA, C, 3-pole, 125A char. c HMF399
local index:
ABC015HAGE
Catalog No:
HMF399
EAN code:
3250613231057
Price:
219,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Current circuit breaker, 10kA, C, 3-pole, 125A char. C
Technical data
-
Characteristicc
-
Number of poles3
-
Rated insulation voltage [V]500
-
power loss [W]13.2
-
Rated short-circuit breaking capacity [kA]10
-
PKWIU27.12.23.0
-
Number of modules4.5
-
Rated voltage [V]400
-
Rated current [A]125
-
Electrical endurance (number of cycles)4000
-
Number of modules4.5
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)3
-
Rated current125 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
-
Concurrently switching neutral conductorNo
-
Pollution degree3
-
Width in number of modular spacings4.5
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 70 mm²
-
Release characteristicC
-
Number of protected poles3
-
Rated voltage415 V
-
Rated impulse withstand voltage Uimp6 kV
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 50 mm²
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 576 pcs. |
| Weight (kg) | 0,700 | 0,723 | 8,935 | 451,880 |
| Width (m) | 0,100 | 0,097 | 0,316 | 0,800 |
| Length (m) | 0,090 | 0,079 | 0,105 | 0,990 |
| Depth (m) | 0,080 | 0,098 | 0,367 | 1,200 |
