Miniature circuit breaker 10kA B unipolar 6A NBN106

Name: Miniature circuit breaker 10kA B unipolar 6A
Brand: HAGER
SKU: ABB250HAGE
Price: 14.54 PLN

local index:

ABB250HAGE

Catalog No:

NBN106

EAN code:

3250614613692

Miniature circuit breaker 10kA B unipolar 6A

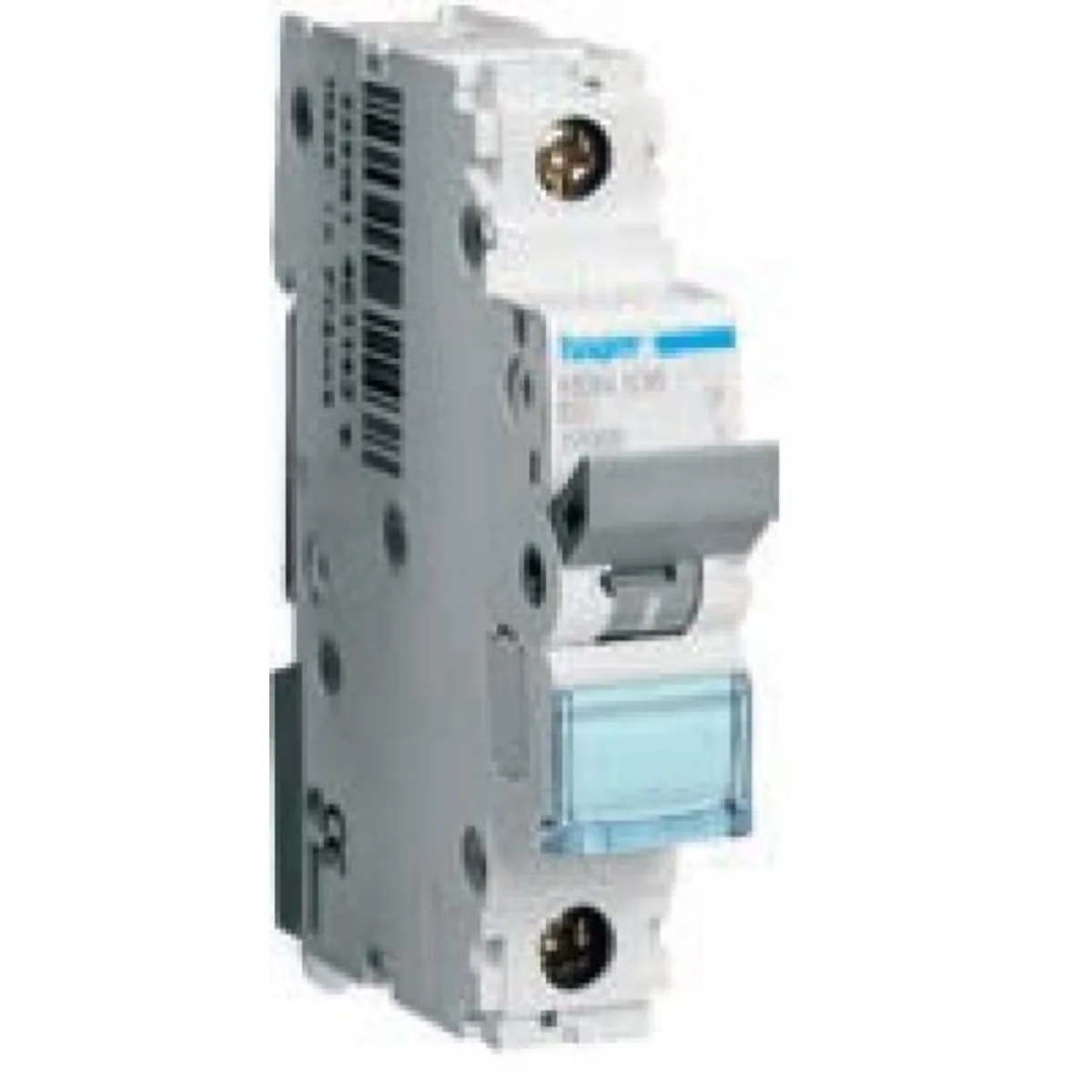

Click on the photo to enlarge

Manufacturer: HAGER

Characteristic: b

Depth [mm]: 70

Number of modules: 1

See full description

Price:

14,54 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Miniature circuit breakers 0.5 - 63 A. Type B, C and D Rated short-circuit breaking capacity 10000 A
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm2, strand up to 25 mm2,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

Characteristic

b
Number of modules

1
Rated voltage [V]

230
Rated current [A]

6
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

10
PKWIU

27.12.22.0

Depth [mm]

70
Number of poles

1
Rated insulation voltage [V]

500
Power dissipation [W]

1.3
Height [mm]

83
Number of modules

1

Other technical data

Built-in depth

70 mm
Number of poles (total)

1
Rated current

6 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	144 pcs.	3456 pcs.
Weight (kg)	0,102	1,345	16,520	421,480
Width (m)	0,018	0,100	0,315	0,800
Length (m)	0,087	0,080	0,210	1,050
Depth (m)	0,074	0,230	0,360	1,200
