Miniature circuit breaker 10kA B unipolar 16A NBN116

Name: Miniature circuit breaker 10kA B unipolar 16A
Brand: HAGER
SKU: ABB252HAGE
Price: 11.45 PLN

Lokaler Index:

ABB252HAGE

Katalognummer:

NBN116

EAN-Code:

3250614613722

Miniature circuit breaker 10kA B unipolar 16A

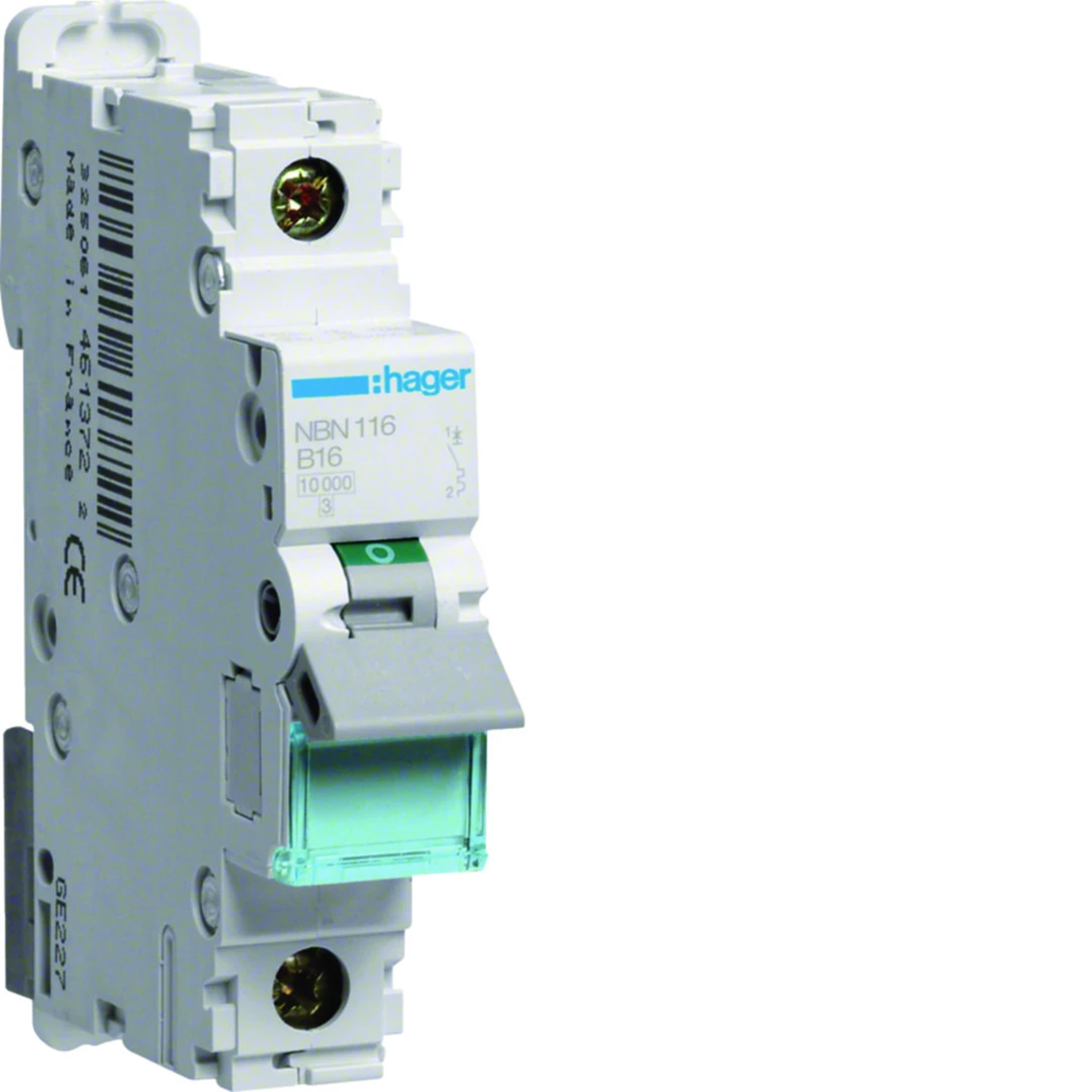

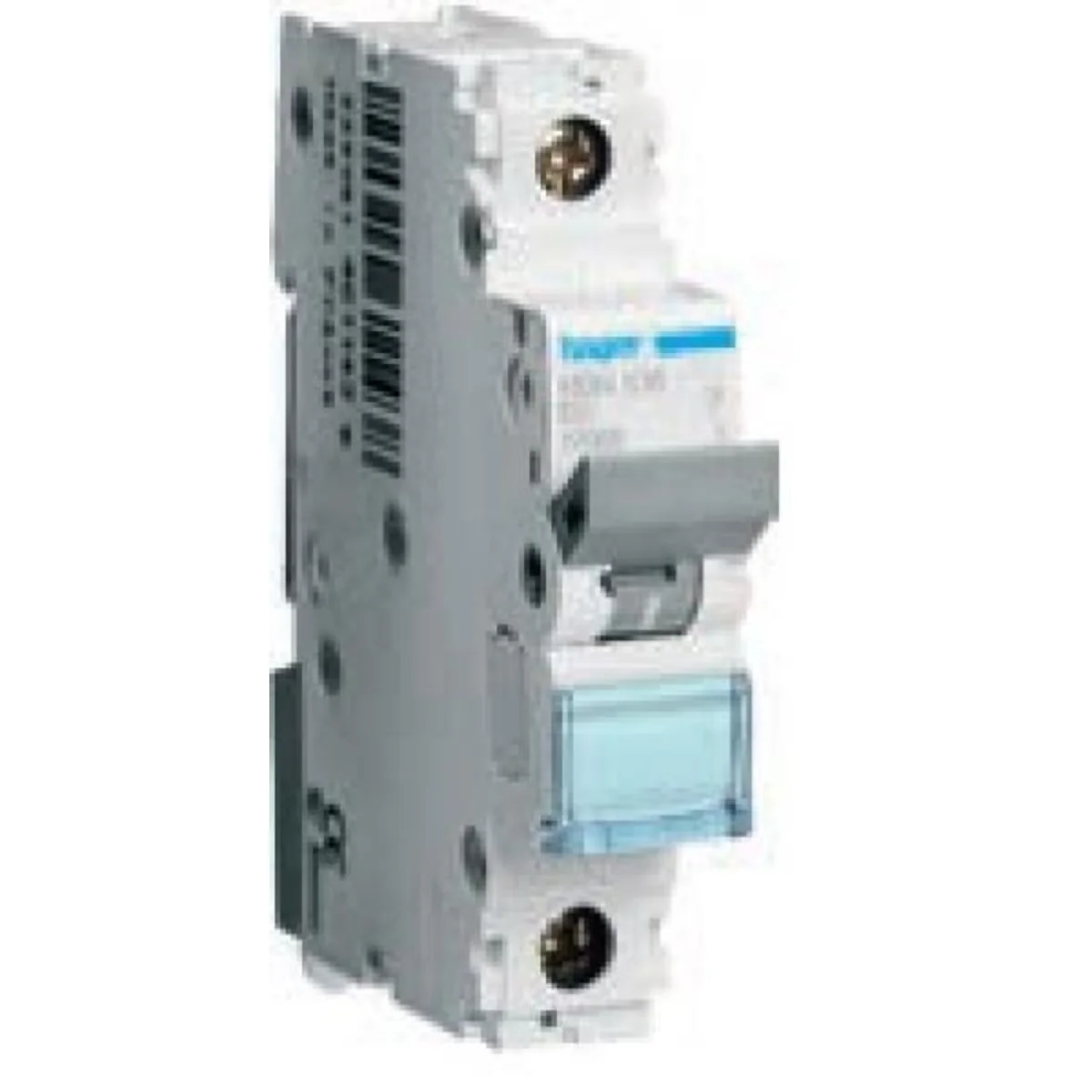

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Characteristic: b

Depth [mm]: 70

Number of modules: 1

Siehe vollständige Beschreibung

Preis:

11,45 €

gross / stk.

(inklusive MwSt 23%)

Lieferung in 3h

bis zu 10 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Miniature circuit breakers 0.5 - 16 A. Type B, C and D Rated short-circuit breaking capacity 10000 A
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories, including insulating barriers between poles,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 35 mm2, strand up to 25 mm2,
• description field with a safety flap,
• top and bottom openable mounting clips,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear

Technische Daten

Characteristic

b
Number of modules

1
Rated voltage [V]

230
Rated current [A]

16
Width [mm]

17.5
Rated short-circuit breaking capacity [kA]

10
PKWIU

27.12.22.0

Depth [mm]

70
Number of poles

1
Rated insulation voltage [V]

500
Power dissipation [W]

2.7
Height [mm]

83
Number of modules

1

Weitere technische Daten

Built-in depth

70 mm
Number of poles (total)

1
Rated current

16 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Hersteller-Details

Hersteller

Hager Electro S.A.S.
Adresse

FR 67215 Obernai 123 boulevard d’Europe Francja
E-Mail

wsparcie.klienta@hager.com

Großpackungen

Eine Art Paket	Karton	Pakiet	Paleta
Menge	12 stk.	144 stk.	3456 stk.
Gewicht (kg)	1,280	15,400	369,790
Breite (m)	0,100	0,310	0,800
Länge (m)	0,080	0,210	1,050
Tiefe (m)	0,220	0,360	1,200
