Miniature circuit breaker 10kA B unipolar 10A fuse characteristics B NBN110

Name: Miniature circuit breaker 10kA B unipolar 10A fuse characteristics B
Brand: HAGER
SKU: ABB251HAGE
Price: 10.77 PLN

local index:

ABB251HAGE

Catalog No:

NBN110

EAN code:

3250614613708

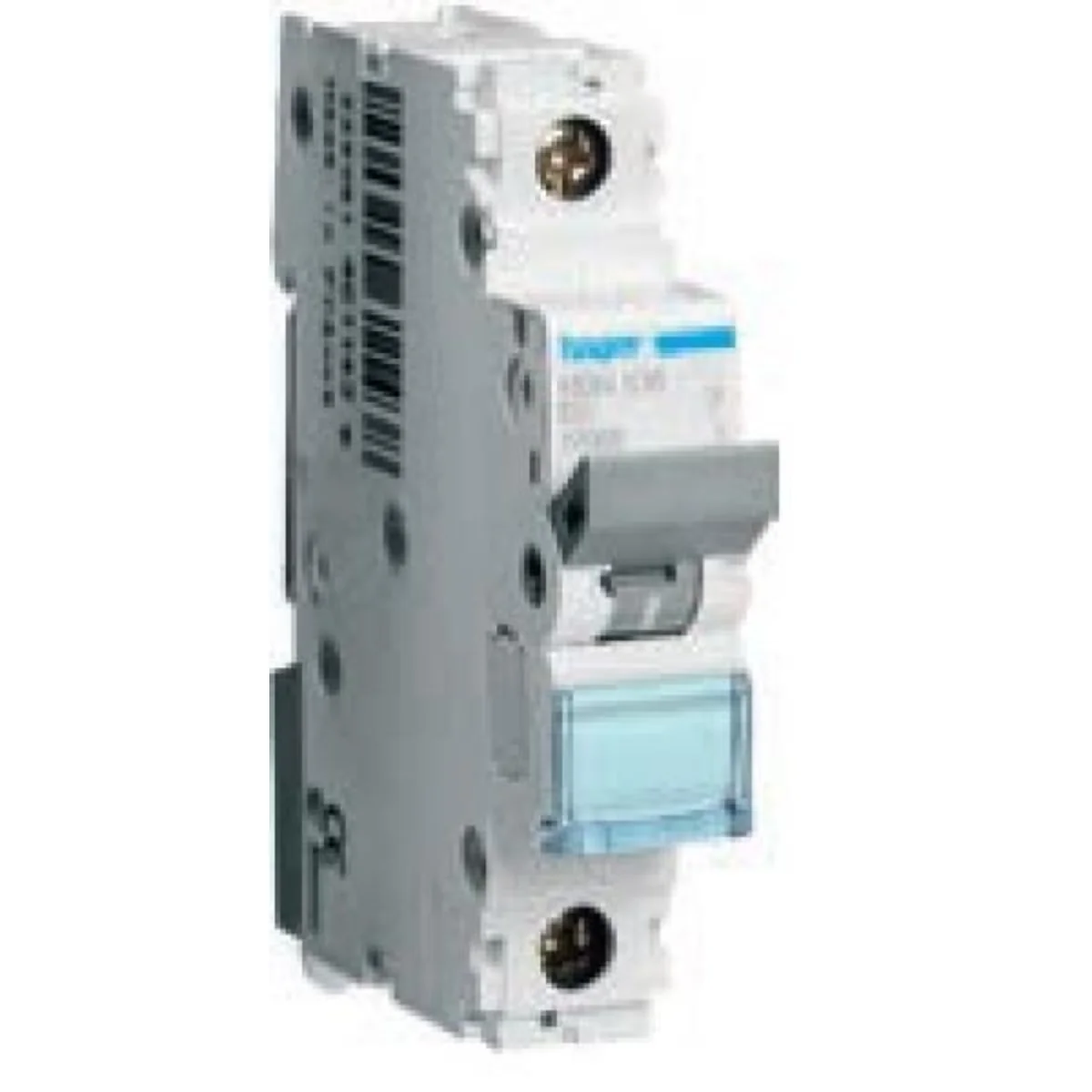

Miniature circuit breaker 10kA B unipolar 10A fuse characteristics B

Click on the photo to enlarge

Manufacturer: HAGER

Characteristic: b

Depth [mm]: 70

Number of modules: 1

See full description

Price:

10,77 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Current circuit breakers 0.5 - 10A. Type B, C and D Rated short-circuit breaking capacity 10000 A

• Rated ultimate short-circuit breaking capacity (Icu): 15 kA, according to EN 60947-2,

• energy limitation class: 3,

• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,

• possibility of use in current circuits

• wide range of accessories, including insulating barriers between poles,

• possibility of connection using vertical and horizontal comb busbars,

• cage terminals: wire up to 35 mm2, stranded cable up to 25 mm2,

• description field with a protective flap,

• upper and lower openable mounting clips,

• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear

Technical data

Characteristic

b
Number of modules

1
Rated voltage [V]

230
Power dissipation [W]

2.1
Height [mm]

83
PKWIU

27.12.22.0

Depth [mm]

70
Number of poles

1
Rated current [A]

10
Width [mm]

17.5
Number of modules

1

Other technical data

Built-in depth

70 mm
Number of poles (total)

1
Rated current

10 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	144 pcs.	3456 pcs.
Weight (kg)	0,102	1,324	16,169	381,312
Width (m)	0,018	0,102	0,323	0,800
Length (m)	0,087	0,082	0,234	0,150
Depth (m)	0,074	0,230	0,371	1,200
