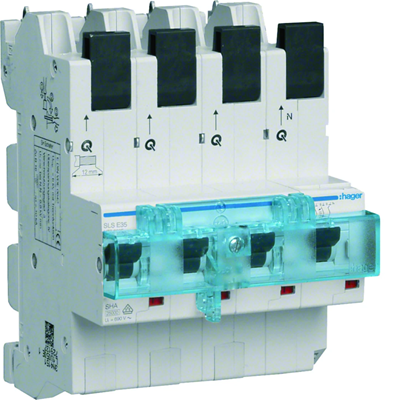

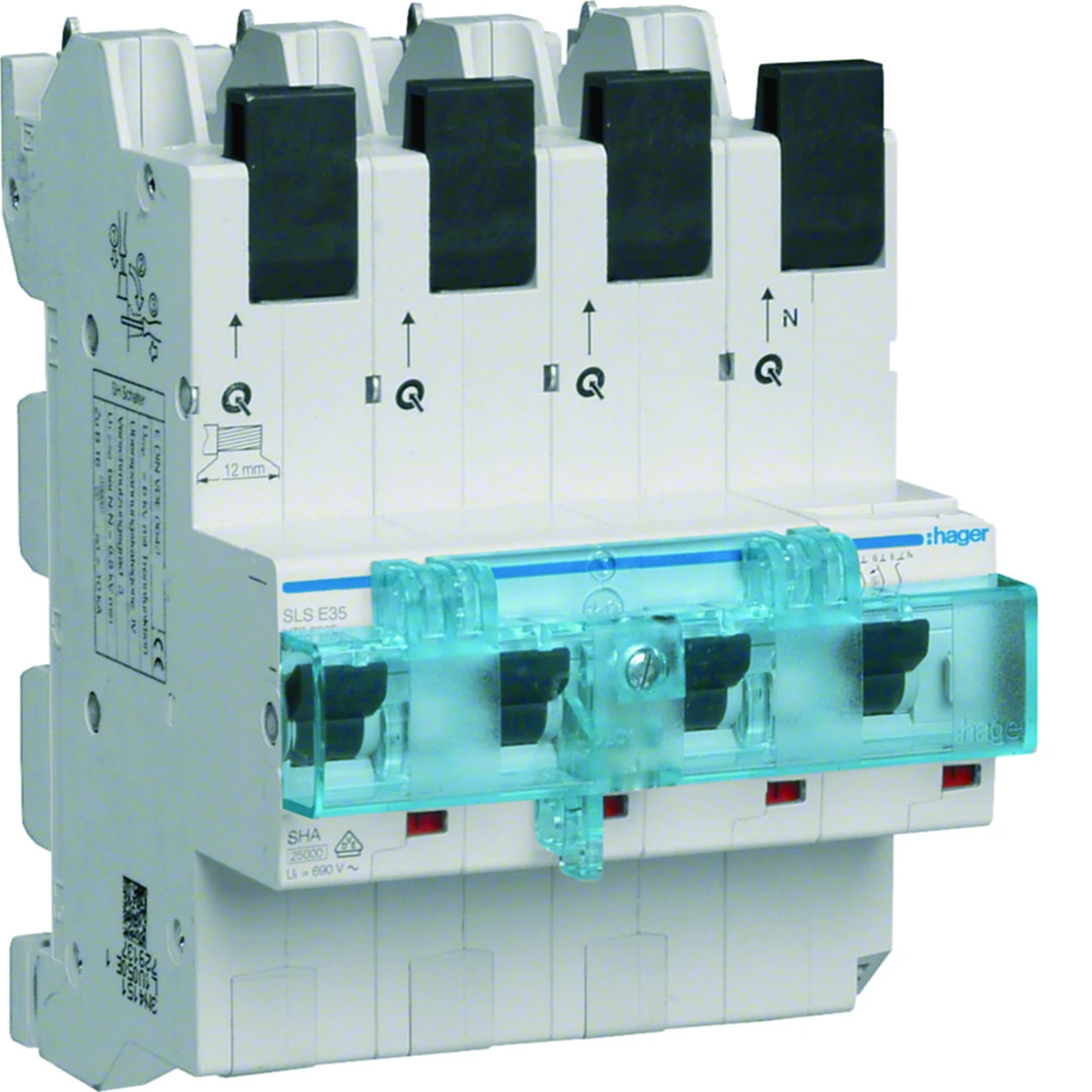

MCB SLS Selective overcurrent circuit breaker 3P+N Cs 16A Cu busbar 12x5/10mm 40mm HTS616C

Selective overcurrent circuit breaker MCB, SLS series.

• 16A,
• number of poles: 3P+ N,
• for mounting on busbars,
• for busbars with a distance of 40 mm Cu 12x5/10mm,
• tripping characteristic Cs:
  • thermal release 1.13 to 1.45 x IN
  • electromagnetic release 6.5 x 10 IN
• rated voltage: 230/400 V< /li>
• contact position indicator

Specifications of the SLS series:

Selective circuit breaker ensures easy operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.
