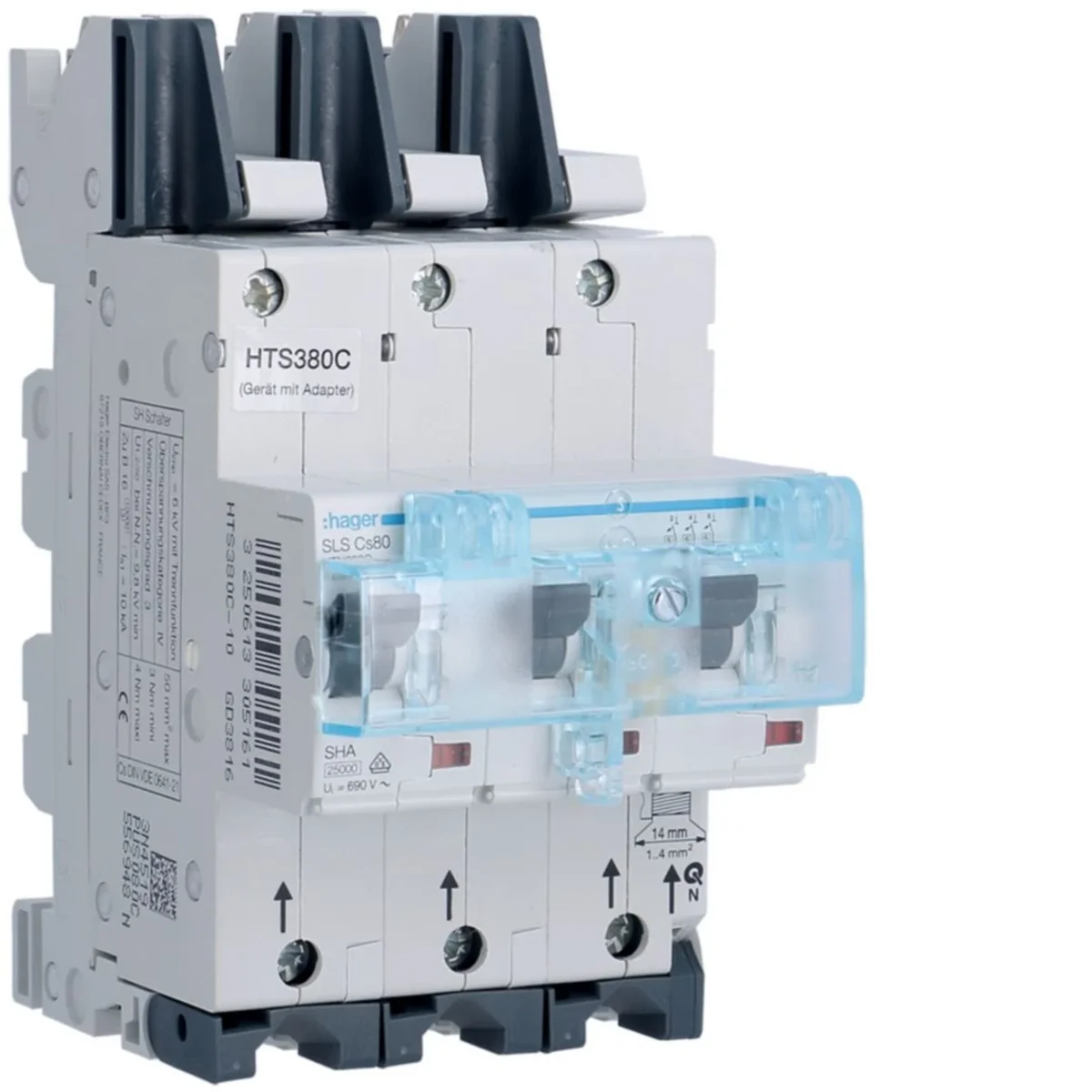

SLS circuit breakers - selective overcurrent circuit breakers
for mounting on busbars:
• for busbars with a distance of 40 mm Cu 5/10x12 mm according to DIN 43870 part 2
• for currents from 10 to 63 A, outputs 1.5 to 16 mm² with screwless terminals
• VDE mark, production control expertise in accordance with reg. VDE No. A639
Tested and certified according to E DIN VDE 0643:2003-09 chapter 5 to 8.18 and DIN EN 60947-1 (VDE 0660 Teil 100):2002-12 EN 60947-1:1999 chapter 8.2.5.2, 8.2.5.3. A1:2000 and A2:2003 DIN VDE 0641-21
• main place of application:
pre-meter protection
• Tripping characteristic Cs -
thermal trigger
1.13 to 1.45 x IN
- electromagnetic trigger
6.5 x 10 IN
• rated voltage 230/400V~
• short-circuit switching capacity 25 kA
• can be closed and locked as standard
• L1, L2, L3 supplied separately
• contact position status indicator
• compliant with EN 60898

Rated frequency [Hz]

50/60
Installation

For rails
Rated current [A]

80
Width [mm]

81
Height [mm]

158
Mechanical durability (number of cycles)

10000
AC rated voltage [V]

230/400

Number of poles

3
Rated insulation voltage [V]

690
Power dissipation [W]

42.6
Working temperature [°C]

-25 to 55
Electrical endurance (number of cycles)

1500
Number of modules

4.5
PKWIU

27.12.22.0

Other technical data

Release characteristic

Cs
Rated current

80 A
Rated insulation voltage Ui

690 V
Concurrently switching neutral conductor

No
Over voltage category

4
Rated surge voltage invariability

6 kV
Degree of protection (IP)

IP20

Number of poles

3
Rated voltage

400 V
Rated switching capacity

25 kA
Frequency

50 Hz
Pollution degree

3
Mounting method

Busbar

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	8 pcs.	192 pcs.
Weight (kg)	1,200	1,338	11,090	289,160
Width (m)	0,081	0,150	0,315	0,800
Length (m)	0,151	0,084	0,210	0,990
Depth (m)	0,118	0,180	0,365	1,200
