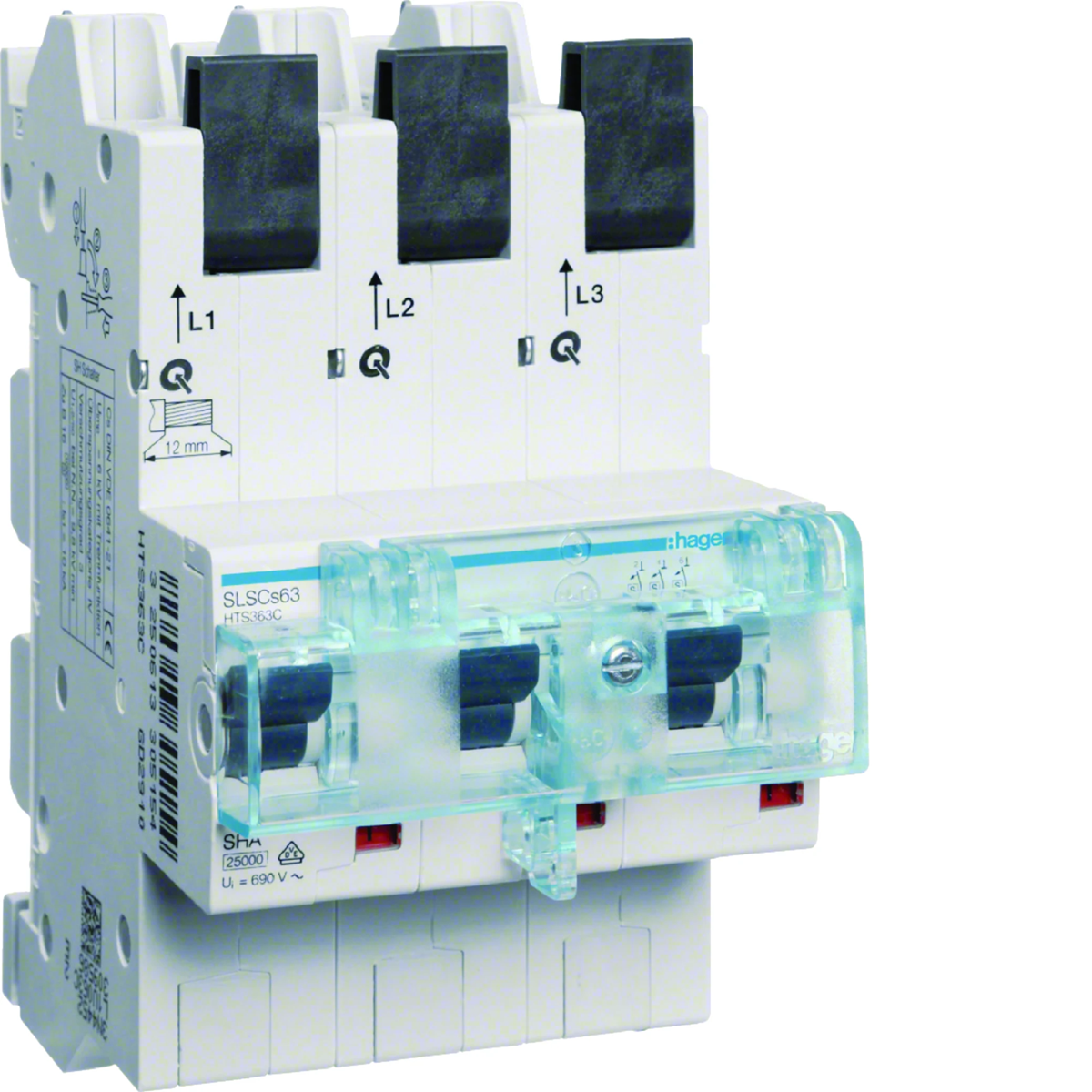

MCB SLS Selective overcurrent circuit breaker 3P Cs 63A, bus bars 40mm-12x5/10mm HTS363C

local index:
ABS006HAGE
Catalog No:
HTS363C
EAN code:
3250613305154
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Number of poles: 3
Installation: For rails
Price:
236,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SLS circuit breakers - selective overcurrent circuit breakers
for mounting on busbars:
• for busbars with a distance of 40 mm Cu 5/10x12 mm according to DIN 43870 part 2
• for currents from 10 to 63 A, outputs 1.5 to 16 mm² with screwless terminals
• VDE mark, production control expertise in accordance with reg. VDE No. A639
Tested and certified according to E DIN VDE 0643:2003-09 chapter 5 to 8.18 and DIN EN 60947-1 (VDE 0660 Teil 100):2002-12 EN 60947-1:1999 chapter 8.2.5.2, 8.2.5.3. A1:2000 and A2:2003 DIN VDE 0641-21
• main place of application:
pre-meter protection
• Tripping characteristic Cs -
thermal trigger
1.13 to 1.45 x IN
- electromagnetic trigger
6.5 x 10 IN
• rated voltage 230/400V~
• short-circuit switching capacity 25 kA
• can be closed and locked as standard
• L1, L2, L3 supplied separately
• contact position status indicator
• compliant with EN 60898

Technical data

  • Rated frequency [Hz]
    50/60
  • Installation
    For rails
  • Rated current [A]
    63
  • Width [mm]
    81
  • Height [mm]
    158
  • Mechanical durability (number of cycles)
    10000
  • AC rated voltage [V]
    230/400
  • Number of poles
    3
  • Rated insulation voltage [V]
    690
  • Power dissipation [W]
    thirty
  • Working temperature [°C]
    -25 to 55
  • Electrical endurance (number of cycles)
    1500
  • Number of modules
    4.5
  • PKWIU
    27.12.22.0

Other technical data

  • Release characteristic
    Cs
  • Rated current
    63 A
  • Rated insulation voltage Ui
    690 V
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    4
  • Rated surge voltage invariability
    6 kV
  • Degree of protection (IP)
    IP20
  • Number of poles
    3
  • Rated voltage
    400 V
  • Rated switching capacity
    25 kA
  • Frequency
    50 Hz
  • Pollution degree
    3
  • Mounting method
    Busbar

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 8 pcs. 192 pcs.
Weight (kg) 1,278 1,260 10,440 278,560
Width (m) 0,081 0,150 0,315 0,800
Length (m) 0,151 0,086 0,207 0,978
Depth (m) 0,118 0,179 0,363 1,200
