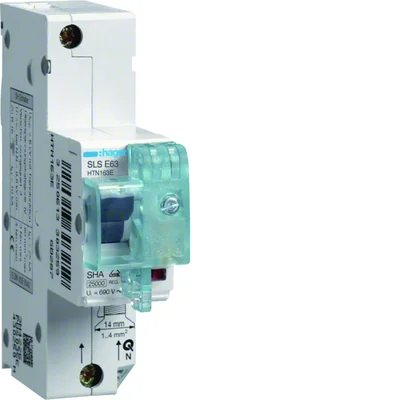

Selective overcurrent circuit breaker SLS series MCB.

63A,
can be mounted on a TS35 mounting rail or via busbar adapter (distance 40 mm),
tripping characteristic E:
- thermal release 1.05 to 1.20 x IN
- electromagnetic release 5 x 6.25 IN
rated voltage: 230/400 V
contact position indicator
cage terminals:
- solid wire up to 50 mm²
- stranded wire up to 35 mm²

Specifications of the SLS series:< /p>

The selective circuit breaker provides ease of operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.

Rated frequency [Hz]

60
Depth [mm]

85
Tightening torque [Nm]

4
Rated insulation voltage [V]

690
Family

SLS
Power dissipation [W]

10
Power loss per pole [W]

8.6
Height [mm]

110
Mechanical durability (number of cycles)

10000
Rated switching voltage [V]

230/400
Max/min value of the AC current of the protection activation

5/6.25 in
storage temperature [°C]

from -25 to 80
Wire cross-section (cord) [mm²]

1.5 - 35
PKWIU

27.12.22.0

Length [mm]

91
Number of poles

1
Installation

On the TH-35 rail
Rated current [A]

63
Level of security

IP20
power loss [W]

8.6
Width [mm]

27
Electrical endurance (number of cycles)

1500
Operating temperature range [°C]

from -25 to 55
Number of modules

1.5
Operating short-circuit breaking current Ics [kA]

12.5
Rated surge voltage [V]

6000
Conductor cross-section (wire) [mm²]

1.5 - 50

Other technical data

Release characteristic

E
Rated current

63 A
Rated insulation voltage Ui

690 V
Concurrently switching neutral conductor

No
Over voltage category

4
Rated surge voltage invariability

6 kV
Degree of protection (IP)

IP20

Number of poles

1
Rated voltage

400 V
Rated switching capacity

25 kA
Frequency

50 Hz
Pollution degree

3
Mounting method

DIN rail

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	3 pcs.	24 pcs.	576 pcs.
Weight (kg)	0,320	1,053	8,834	235,016
Width (m)	0,027	0,123	0,318	0,800
Length (m)	0,110	0,084	0,211	0,994
Depth (m)	0,089	0,152	0,366	1,200
