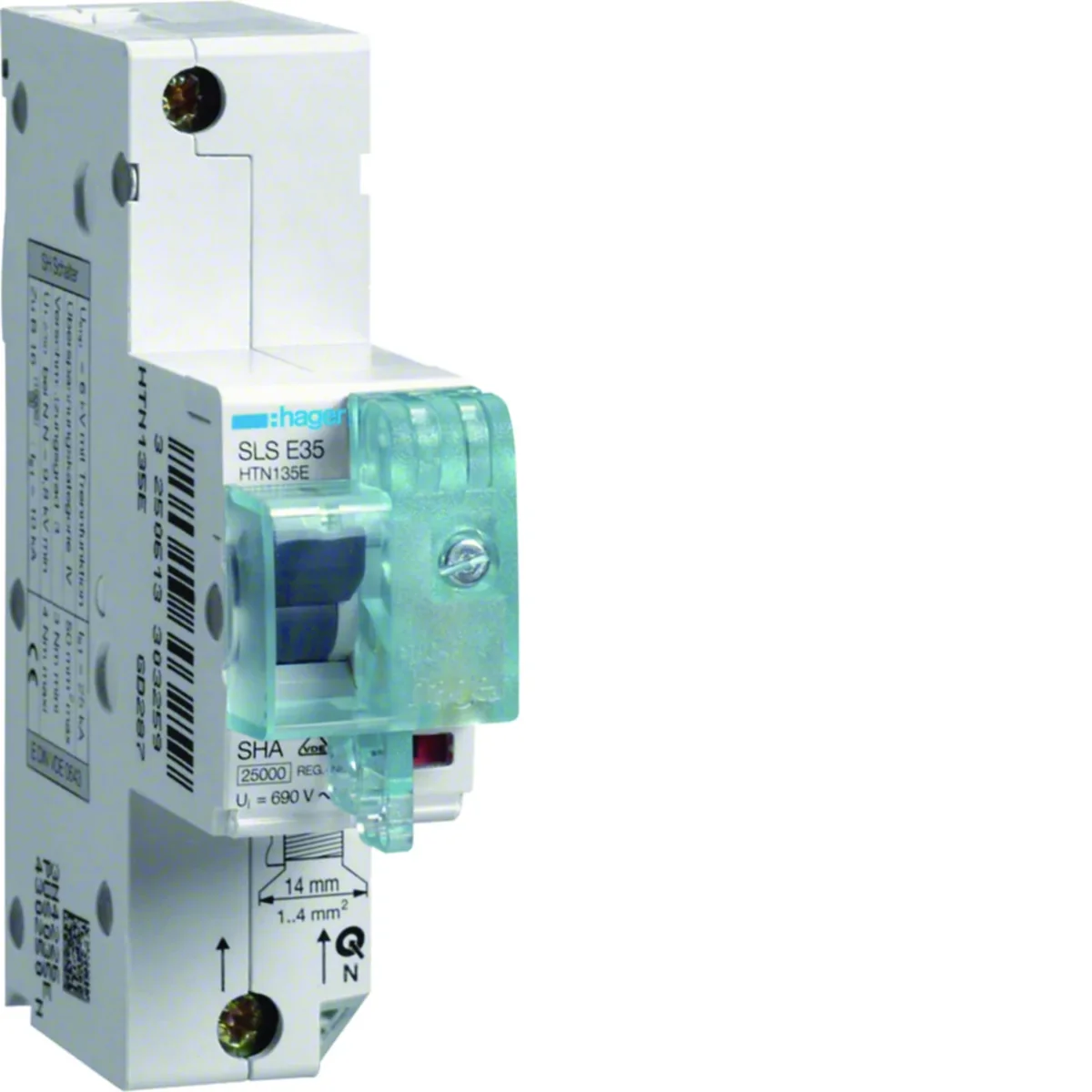

MCB SLS Selective overcurrent circuit breaker 1P E 35A TS35 HTN135E

Selective overcurrent circuit breaker SLS series MCB.

• 35A,
• can be mounted on a TS35 mounting rail or via busbar adapter (distance 40 mm),
• tripping characteristic E:
  • thermal release 1.05 to 1.20 x IN
  • electromagnetic release 5 x 6.25 IN
• rated voltage: 230/400 V
• contact position indicator
• cage terminals:
  • solid wire up to 50 mm²
  • stranded wire up to 35 mm²

Specifications of the SLS series:< /p>

The selective circuit breaker provides ease of operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.
