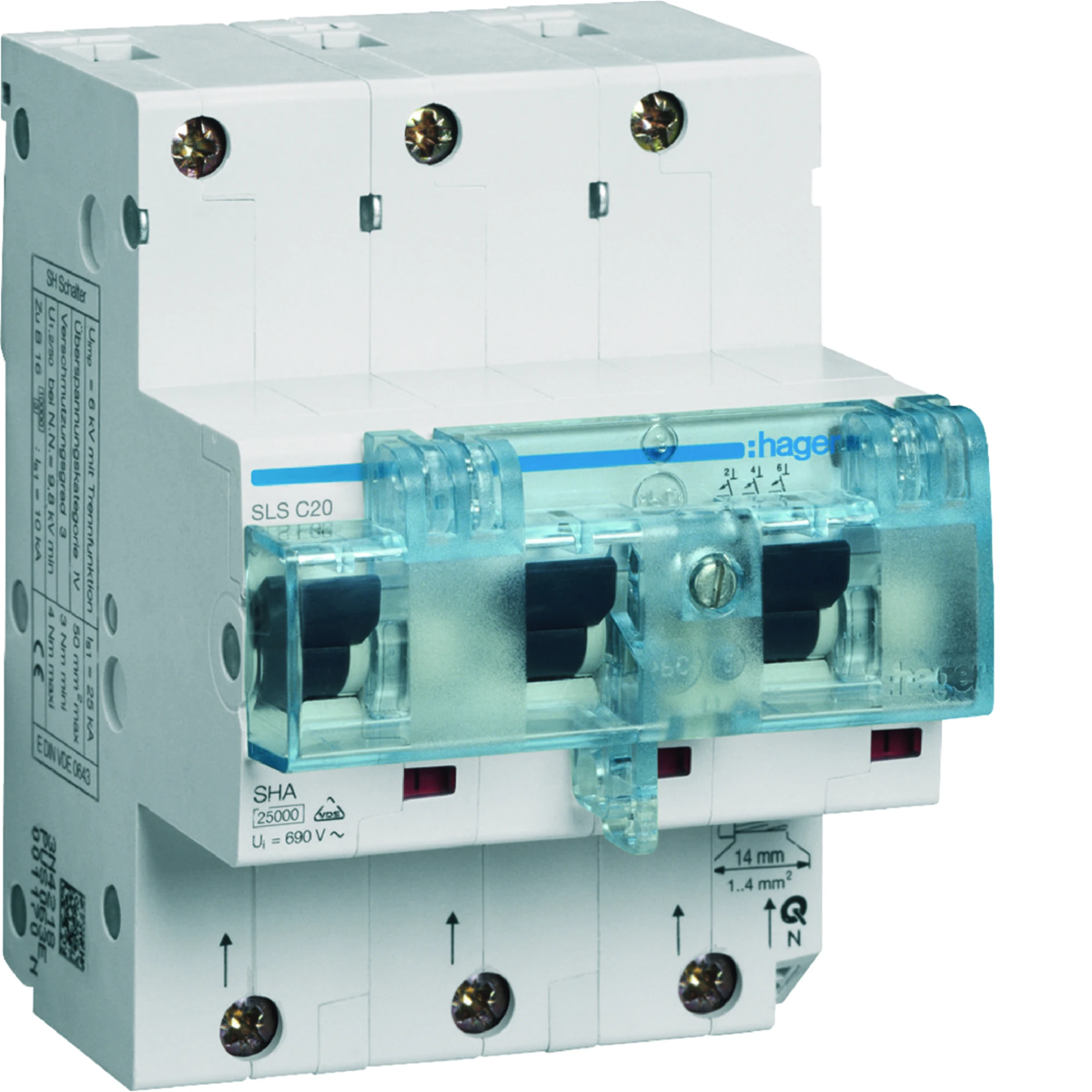

MCB SLS Selective circuit breaker 3P Cs 20A TS35 HTN320C

SLS circuit breakers - selective overcurrent circuit breakers
for mounting on TS35 rail:
• SLS circuit breakers can be mounted on a TS35 mounting rail or using an adapter on busbars (spacing
40mm)
• VDE mark, production control expertise
• tested and certified according to E DIN VDE 0643:2003-09, DIN VDE 0641-21
• main application: pre-meter protection
• compliant with EN 60898
• Tripping characteristic Cs -
thermal trigger
1.13 to 1.45 x IN
- electromagnetic trigger
6.5 x 10 IN
• rated voltage:
230/400V~
• short-circuit switching capacity
25kA
• can be closed and locked as standard
• L1, L2, L3 supplied separately
• contact position status indicator
• cage clamps:
- wire up to 50 mm²
- stranded up to 35 mm²
