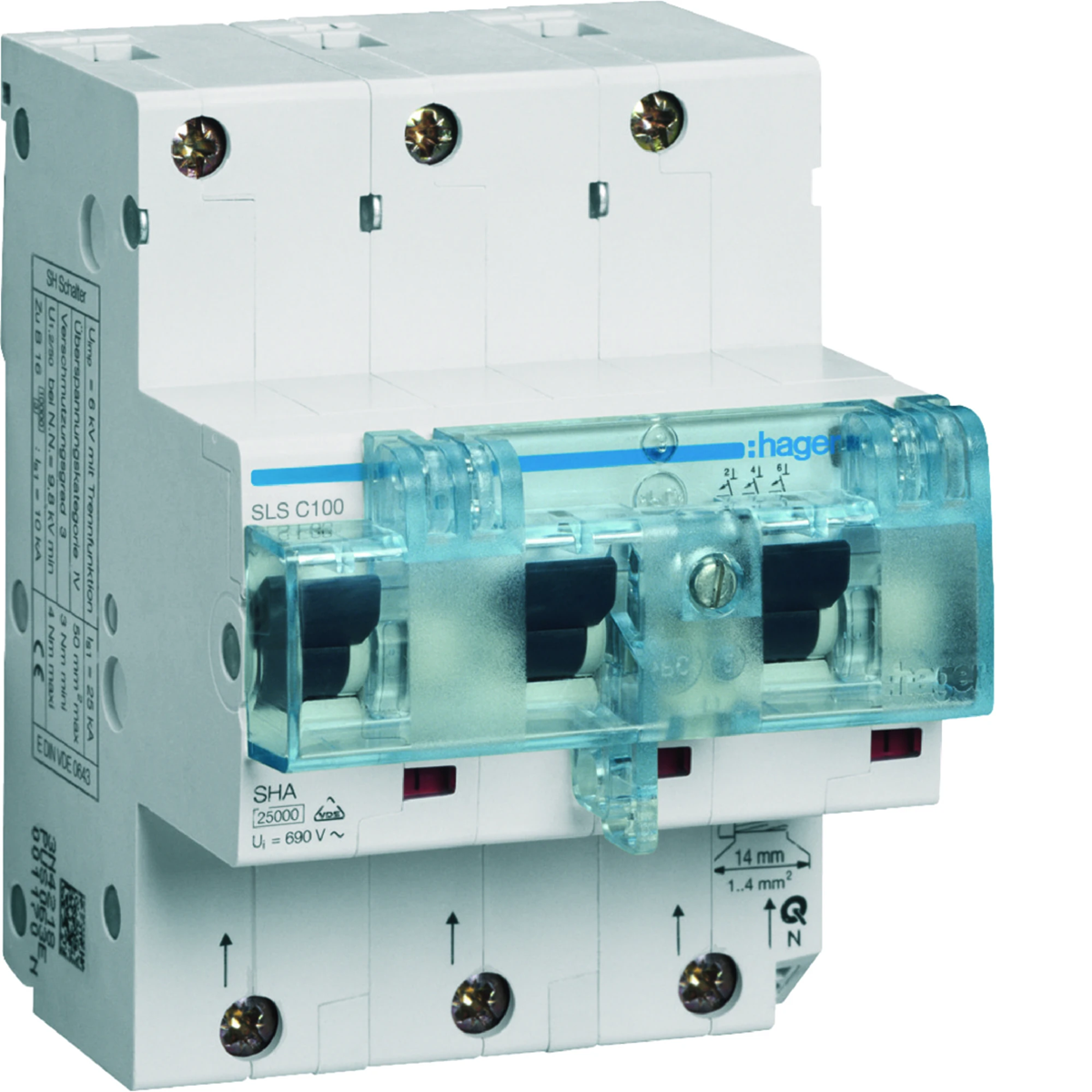

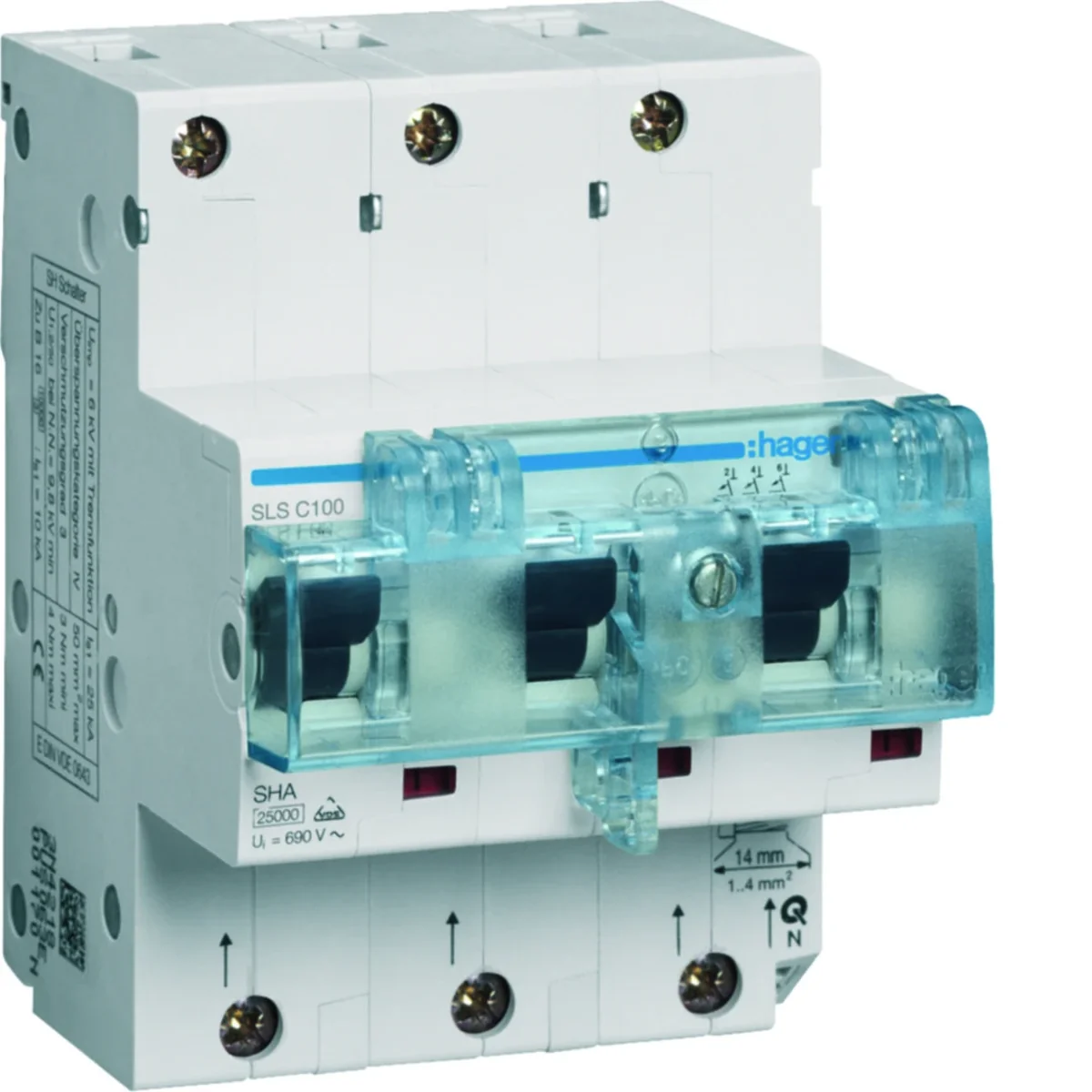

MCB SLS Selective circuit breaker 3P Cs 100A TS35 HTN390C

local index:
ABS034HAGE
Catalog No:
HTN390C
EAN code:
3250613305475
Manufacturer: HAGER
Rated frequency [Hz]: 60
Length [mm]: 91
Depth [mm]: 85
Price:
244,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Selective overcurrent circuit breaker SLS series MCB.

  • 100A,
  • can be mounted on a TS35 mounting rail or via busbar adapter (40 mm spacing),
  • Tripping characteristics Cs:
    • Thermal release 1.13 to 1.45 x IN
    • Electromagnetic release 6 .5 x 10 IN
  • rated voltage: 230/400 V
  • contact position indicator
  • cage terminals:
    • solid wire up to 50 mm²
    • stranded wire up to 35 mm²

Specifications of the SLS series:< /p>

The selective circuit breaker provides ease of operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.

Technical data

  • Rated frequency [Hz]
    60
  • Depth [mm]
    85
  • Tightening torque [Nm]
    4
  • Rated insulation voltage [V]
    690
  • Family
    SLS
  • Power dissipation [W]
    15
  • Power loss per pole [W]
    13.1
  • Height [mm]
    110
  • Mechanical durability (number of cycles)
    10000
  • Rated switching voltage [V]
    230/400
  • Max/min value of the AC current of the protection activation
    6.5/10 in
  • storage temperature [°C]
    from -25 to 80
  • Wire cross-section (cord) [mm²]
    1.5 - 35
  • PKWIU
    27.12.22.0
  • Length [mm]
    91
  • Number of poles
    3
  • Installation
    On the TH-35 rail
  • Rated current [A]
    100
  • Level of security
    IP20
  • power loss [W]
    39.3
  • Width [mm]
    81
  • Electrical endurance (number of cycles)
    1500
  • Operating temperature range [°C]
    from -25 to 55
  • Number of modules
    4.5
  • Operating short-circuit breaking current Ics [kA]
    12.5
  • Rated surge voltage [V]
    6000
  • Conductor cross-section (wire) [mm²]
    1.5 - 50

Other technical data

  • Release characteristic
    Cs
  • Rated current
    100 A
  • Rated insulation voltage Ui
    690 V
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    4
  • Rated surge voltage invariability
    6 kV
  • Degree of protection (IP)
    IP20
  • Number of poles
    3
  • Rated voltage
    400 V
  • Rated switching capacity
    25 kA
  • Frequency
    50 Hz
  • Pollution degree
    3
  • Mounting method
    DIN rail

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 8 pcs. 192 pcs.
Weight (kg) 0,999 1,000 8,355 223,520
Width (m) 0,081 0,125 0,315 0,800
Length (m) 0,110 0,085 0,210 1,142
Depth (m) 0,089 0,150 0,360 1,200
