MCB SLS Selective circuit breaker 1P Cs 40A TS35 HTN140C

Name: MCB SLS Selective circuit breaker 1P Cs 40A TS35
Brand: HAGER
SKU: ABS014HAGE
Price: 358.24 PLN
Availability: BackOrder

Místní index:

ABS014HAGE

Katalogové číslo.:

HTN140C

EAN kód:

3250613305352

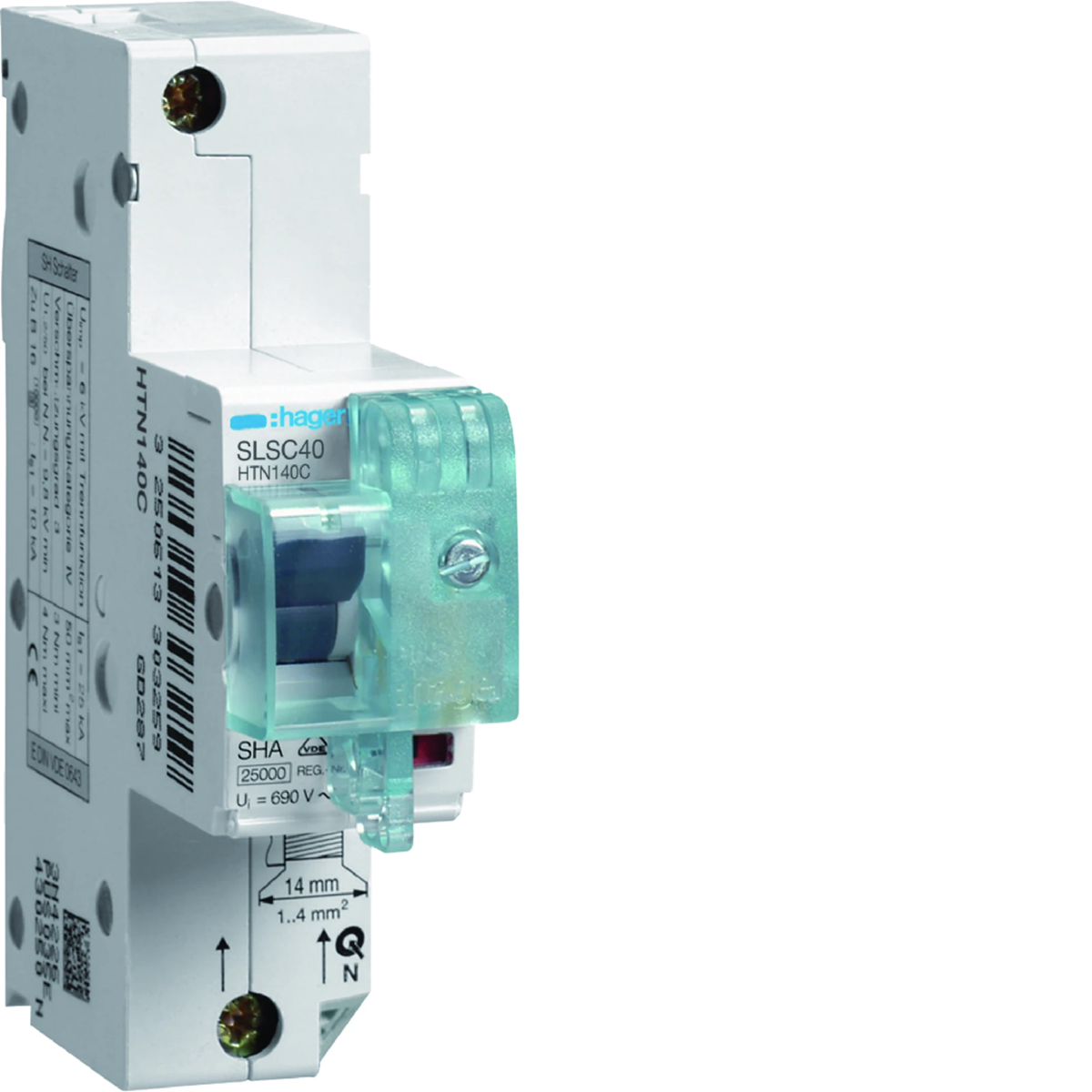

MCB SLS Selective circuit breaker 1P Cs 40A TS35

Kliknutím na obrázek jej zvětšíte

Výrobce: HAGER

Rated frequency [Hz]: 60

Length [mm]: 91

Depth [mm]: 85

Zobrazit celý popis

Cena:

358,24 zł

gross / kusů.

(včetně DPH 23%)

do 10 týdnů

Na zakázku

Množství kusů.

(vícenásobné:

)

Přidat do žádosti o cenovou nabídku

Přidat do schránky

Vytisknout

Dotaz na výrobek

Popis produktu Technické údaje Podrobnosti o výrobci Velkoobjemová balení Soubory ke stažení

Popis produktu

Selective overcurrent circuit breaker SLS series MCB.

40A,
can be mounted on a TS35 mounting rail or via busbar adapter (40 mm spacing),
Tripping characteristics Cs:
- Thermal release 1.13 to 1.45 x IN
- Electromagnetic release 6 .5 x 10 IN
rated voltage: 230/400 V
contact position indicator
cage terminals:
- solid wire up to 50 mm²
- stranded wire up to 35 mm²

Specifications of the SLS series:< /p>

The selective circuit breaker provides ease of operation of the circuit breaker, high short-circuit resistance (25 kA) and full selectivity for protected standard circuit breakers. For the purposes of full integration with the basic protections, special tripping characteristics E and Cs have been developed, which allows for full use of the protection capabilities of the entire system.

Technické údaje

Rated frequency [Hz]

60
Depth [mm]

85
Tightening torque [Nm]

4
Rated insulation voltage [V]

690
Family

SLS
Power dissipation [W]

8
Power loss per pole [W]

6
Height [mm]

110
Mechanical durability (number of cycles)

10000
Rated switching voltage [V]

230/400
Max/min value of the AC current of the protection activation

6.5/10 in
storage temperature [°C]

from -25 to 80
Wire cross-section (cord) [mm²]

1.5 - 35
PKWIU

27.12.22.0

Length [mm]

91
Number of poles

1
Installation

On the TH-35 rail
Rated current [A]

40
Level of security

IP20
power loss [W]

6
Width [mm]

27
Electrical endurance (number of cycles)

1500
Operating temperature range [°C]

from -25 to 55
Number of modules

1.5
Operating short-circuit breaking current Ics [kA]

12.5
Rated surge voltage [V]

6000
Conductor cross-section (wire) [mm²]

1.5 - 50

Další technické údaje

Release characteristic

Cs
Rated current

40 A
Rated insulation voltage Ui

690 V
Concurrently switching neutral conductor

No
Over voltage category

4
Rated surge voltage invariability

6 kV
Degree of protection (IP)

IP20

Number of poles

1
Rated voltage

400 V
Rated switching capacity

25 kA
Frequency

50 Hz
Pollution degree

3
Mounting method

DIN rail

Podrobnosti o výrobci

Výrobce

Hager Electro S.A.S.
Adresa

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Velkoobjemová balení

Typ obalu	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Množství	3 kusů.	24 kusů.	576 kusů.	3 kusů.	24 kusů.	576 kusů.
Hmotnost (kg)	1,072	8,798	234,152	1,072	8,798	234,152
Šířka (m)	0,120	0,310	0,800	0,120	0,310	0,800
Délka (m)	0,080	0,210	0,990	0,080	0,210	0,990
Hloubka (m)	0,150	0,360	1,200	0,150	0,360	1,200
