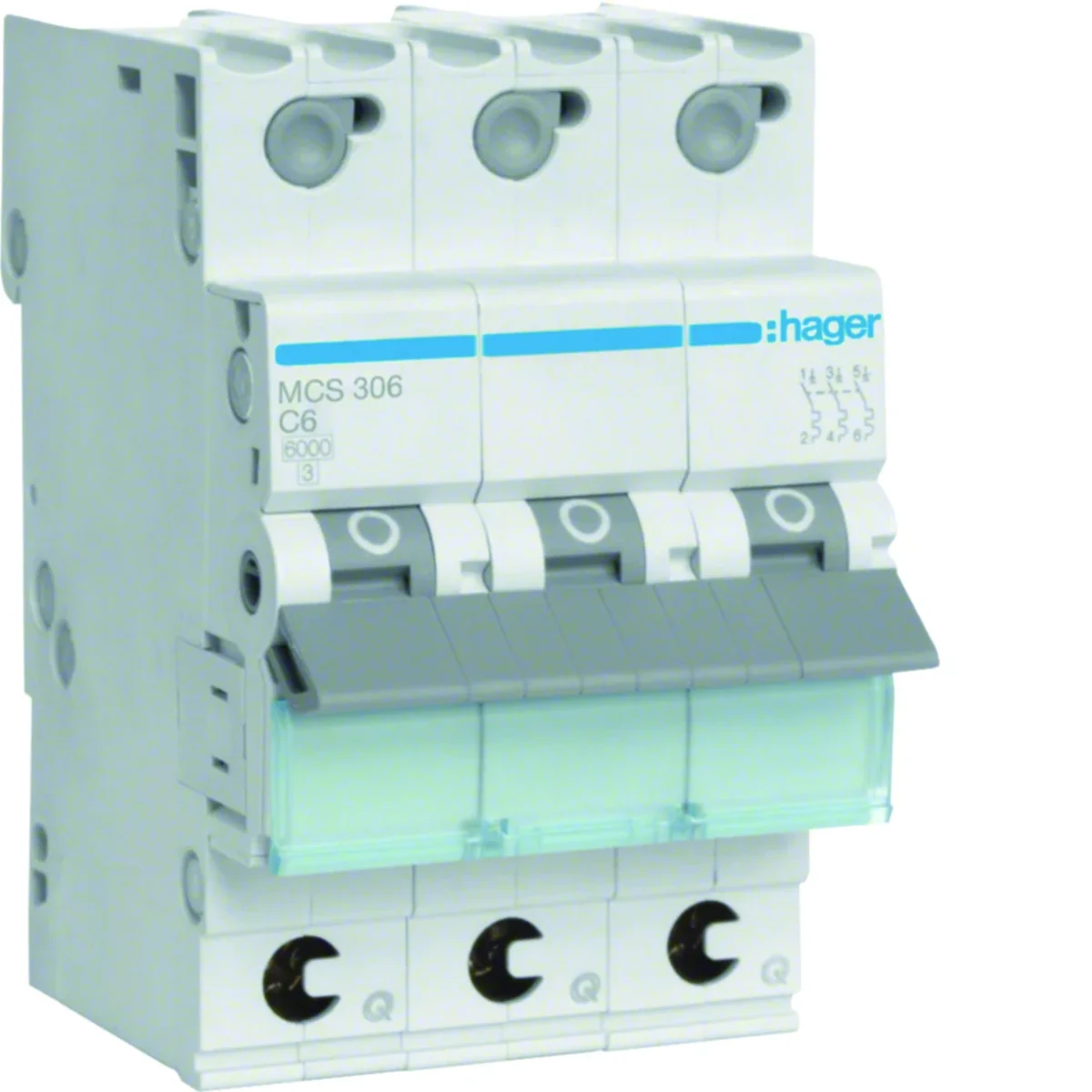

MCB Circuit breaker 6kA 3P C 6A QuickConnect MCS306
local index:
ABC209HAGE
Catalog No:
MCS306
EAN code:
3250614315305
Manufacturer:
HAGER
Family: MCB
Price:
29,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
MCB Circuit breaker 6kA 3P C 6A QuickConnect
Technical data
-
FamilyMCB
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)3
-
Rated current6 A
-
Rated insulation voltage Ui500 V
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
-
Current limiting class3
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings3
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
-
Release characteristicC
-
Number of protected poles3
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
-
Frequency50 ... 60 Hz
-
Flush-mounted installationYes
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Explosion-proofNo
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 4 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,267 | 1,144 | 14,198 | 365,752 |
| Width (m) | 0,052 | 0,097 | 0,315 | 0,800 |
| Length (m) | 0,087 | 0,079 | 0,239 | 1,106 |
| Depth (m) | 0,073 | 0,225 | 0,365 | 1,200 |
