MCB Circuit Breaker 6kA 2 Pole 13A Characteristic B MBN213E

Name: MCB Circuit Breaker 6kA 2 Pole 13A Characteristic B
Brand: HAGER
SKU: ABB070HAGE
Price: 99.16 PLN

Index local:

ABB070HAGE

Numéro de catalogue:

MBN213E

Code EAN:

3250614312908

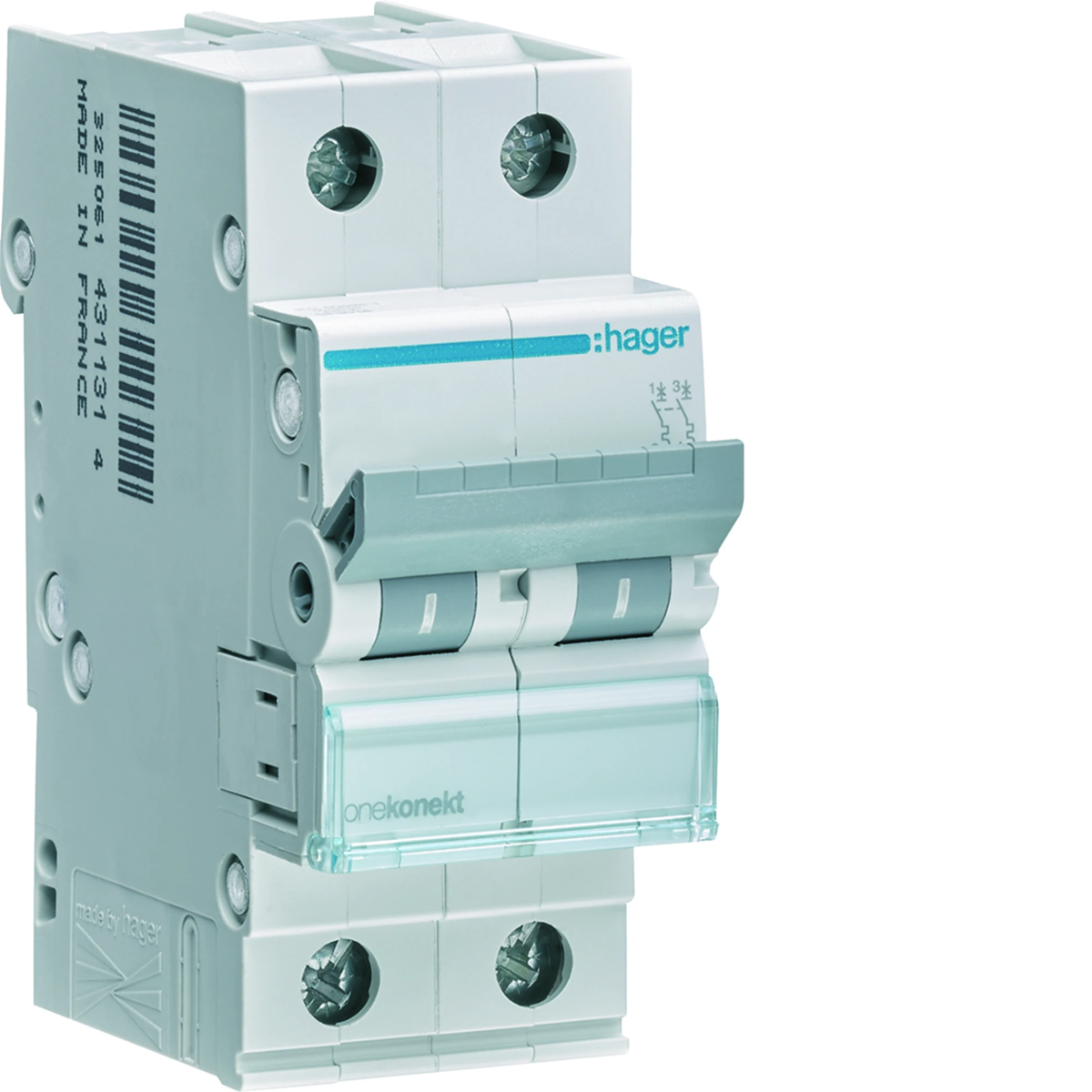

MCB Circuit Breaker 6kA 2 Pole 13A Characteristic B

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Characteristic: b

Rated frequency [Hz]: 60

Depth [mm]: 70

Voir la description complète

Prix:

99,16 zł

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 10 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Données techniques

Characteristic

b
Depth [mm]

70
Tightening torque [Nm]

2.8
Rated current [A]

13
Level of security

IP20
power loss [W]

4.6
Width [mm]

35
Height [mm]

83
Mechanical durability (number of cycles)

20000
Rated short-circuit breaking capacity [kA]

6
Rated short-circuit breaking capacity Icn [kA]

6
Max/min value of the AC current of the protection activation

3/5 In
Ultimate short-circuit breaking capacity per pole for 400V [kA]

3
Rated current at 30°C [A]

13
Rated current at 45°C [A]

12.2
Rated current at 55°C [A]

11.5
Rated current at 65°C [A]

10.8
Operating short-circuit breaking current Ics [kA]

6
Supply voltage type

AC
Rated current correction factor for 3 devices installed side by side

0.95
Number of protected poles

2

Rated frequency [Hz]

60
Number of poles

2
Rated insulation voltage [V]

500
Family

MCB
Power dissipation [W]

3.5
Power loss per pole [W]

2.3
Connection type

With a screw
Electrical endurance (number of cycles)

4000
Operating temperature range [°C]

from -25 to 60
Rated switching voltage [V]

230/400
Number of modules

2
Ultimate short-circuit breaking capacity Icu for 415V [kA]

10
Rated current at 20°C [A]

13.9
Rated current at 40°C [A]

12.5
Rated current at 50°C [A]

12
Rated current at 60°C [A]

11.2
Rated current at 70°C [A]

10.5
storage temperature [°C]

from -25 to 80
Rated current correction factor for 2 devices installed side by side

1
Rated surge voltage [V]

4000
PKWIU

27.12.22.0

Autres données techniques

Built-in depth

70 mm
Number of poles (total)

2
Rated current

13 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

2
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²
