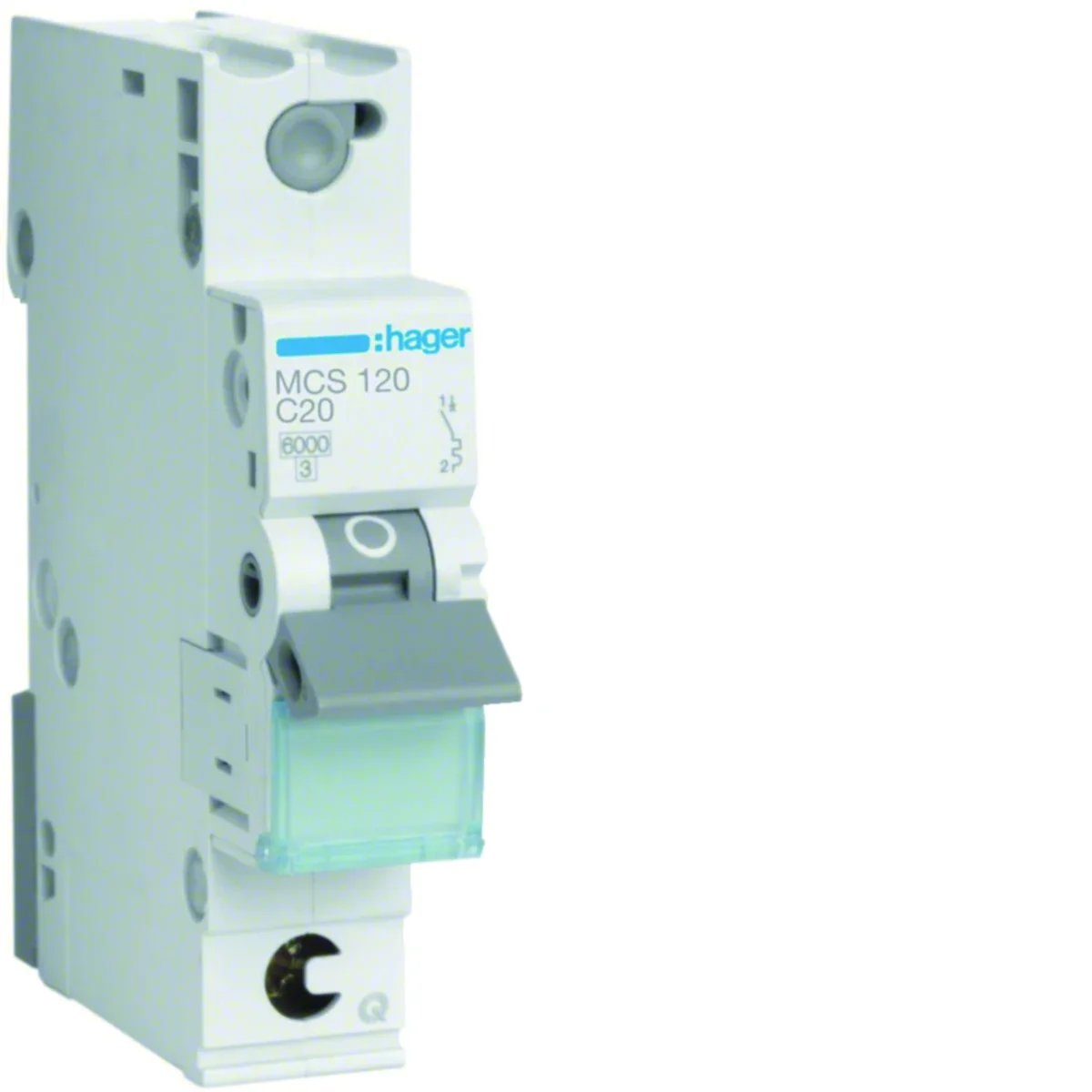

MCB Circuit breaker 6kA 1P C 20A QuickConnect MCS120
local index:
ABC204HAGE
Catalog No:
MCS120
EAN code:
3250614315190
Manufacturer:
HAGER
Family: MCB
Price:
6,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
MCB Circuit breaker 6kA 1P C 20A QuickConnect
Technical data
-
FamilyMCB
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)1
-
Rated current20 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
-
Current limiting class3
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings1
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
-
Release characteristicC
-
Number of protected poles1
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeAC
-
Frequency50 ... 60 Hz
-
Flush-mounted installationYes
-
Over voltage category3
-
Additional equipment possibleNo
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Explosion-proofNo
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,099 | 1,199 | 14,780 | 377,720 |
| Width (m) | 0,018 | 0,096 | 0,313 | 0,800 |
| Length (m) | 0,087 | 0,080 | 0,230 | 1,070 |
| Depth (m) | 0,074 | 0,225 | 0,360 | 1,200 |
