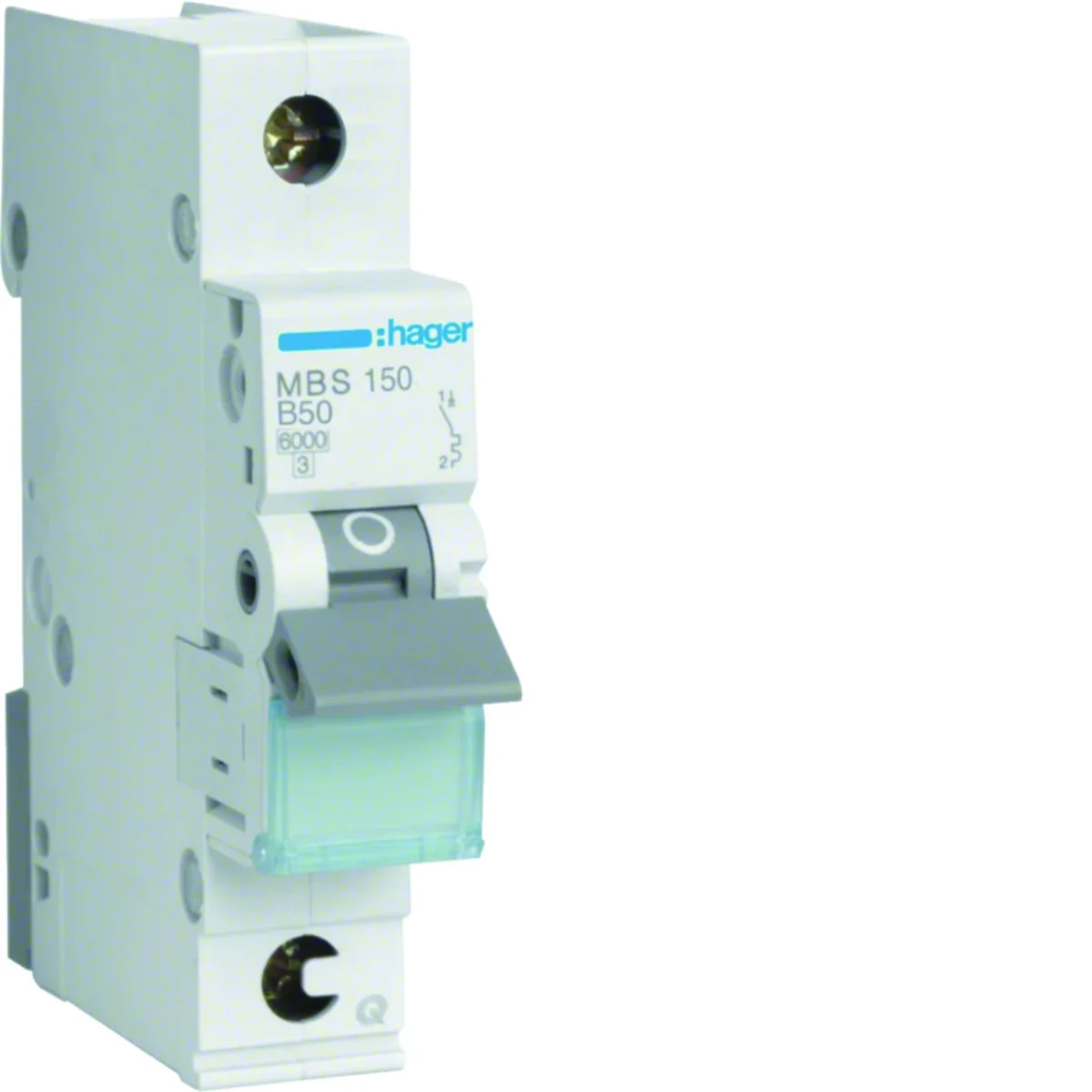

MCB Circuit breaker 6kA 1P B 50A QuickConnect MBS150

local index:
ABB079HAGE
Catalog No:
MBS150
EAN code:
3250614314780
Manufacturer: HAGER
Family: MCB
Price:
15,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

MCB Circuit breaker 6kA 1P B 50A QuickConnect

Technical data

  • Family
    MCB

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    1
  • Rated current
    50 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    10 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    Yes
  • Over voltage category
    3
  • Additional equipment possible
    No
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 144 pcs. 3456 pcs.
Weight (kg) 0,128 1,570 19,280 487,720
Width (m) 0,018 0,096 0,315 0,800
Length (m) 0,087 0,080 0,237 1,098
Depth (m) 0,074 0,226 0,370 1,200
