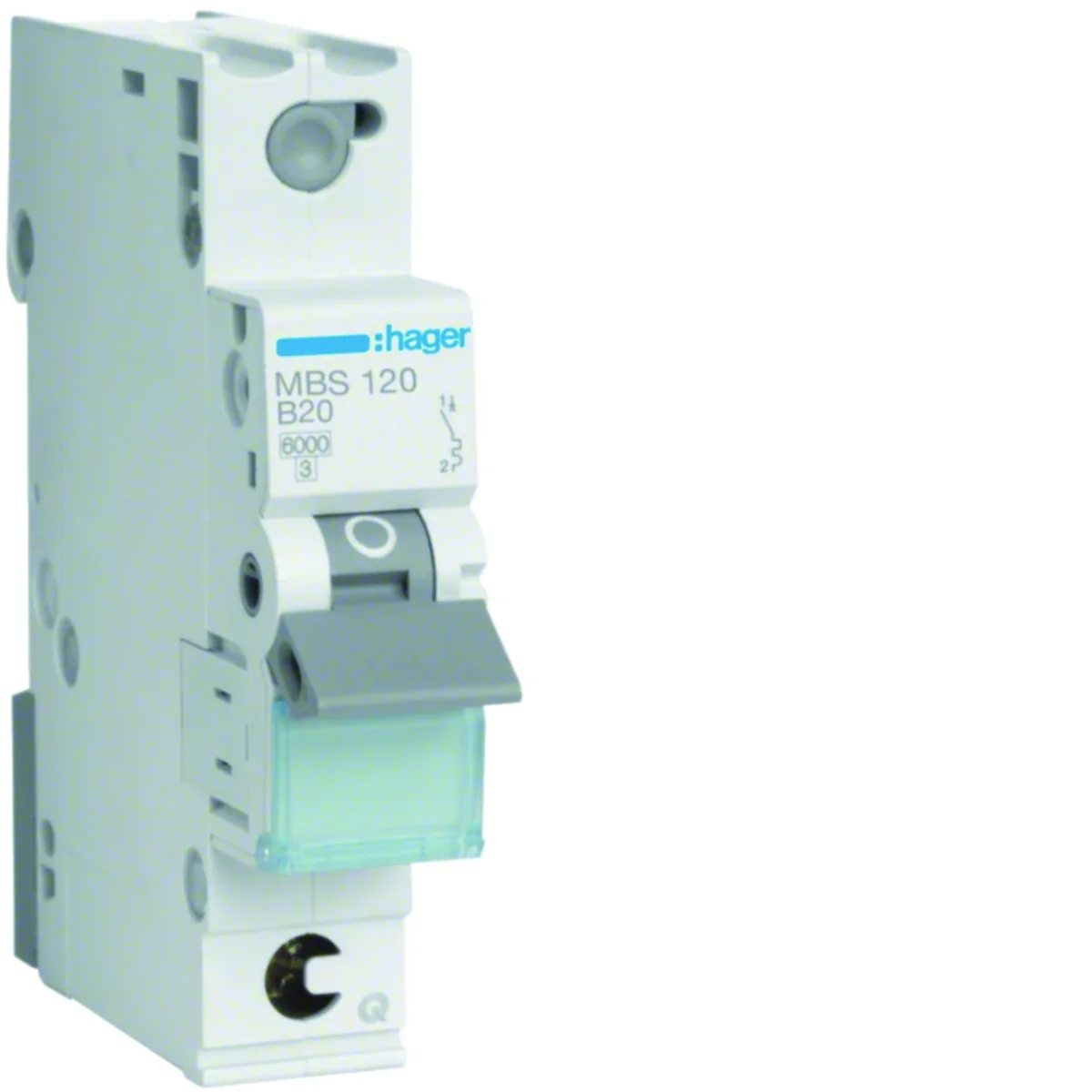

MCB Circuit breaker 6kA 1P B 20A QuickConnect MBS120
local index:
ABB025HAGE
Catalog No:
MBS120
EAN code:
3250614314742
Manufacturer:
HAGER
Family: MCB
Price:
5,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
MCB Circuit breaker 6kA 1P B 20A QuickConnect
Technical data
-
FamilyMCB
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)1
-
Rated current20 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6 kA
-
Current limiting class3
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings1
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
-
Release characteristicB
-
Number of protected poles1
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeAC
-
Frequency50 ... 60 Hz
-
Flush-mounted installationYes
-
Over voltage category3
-
Additional equipment possibleNo
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Explosion-proofNo
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,081 | 1,049 | 13,026 | 337,624 |
| Width (m) | 0,018 | 0,097 | 0,316 | 0,800 |
| Length (m) | 0,087 | 0,084 | 0,234 | 1,050 |
| Depth (m) | 0,073 | 0,226 | 0,363 | 1,200 |
