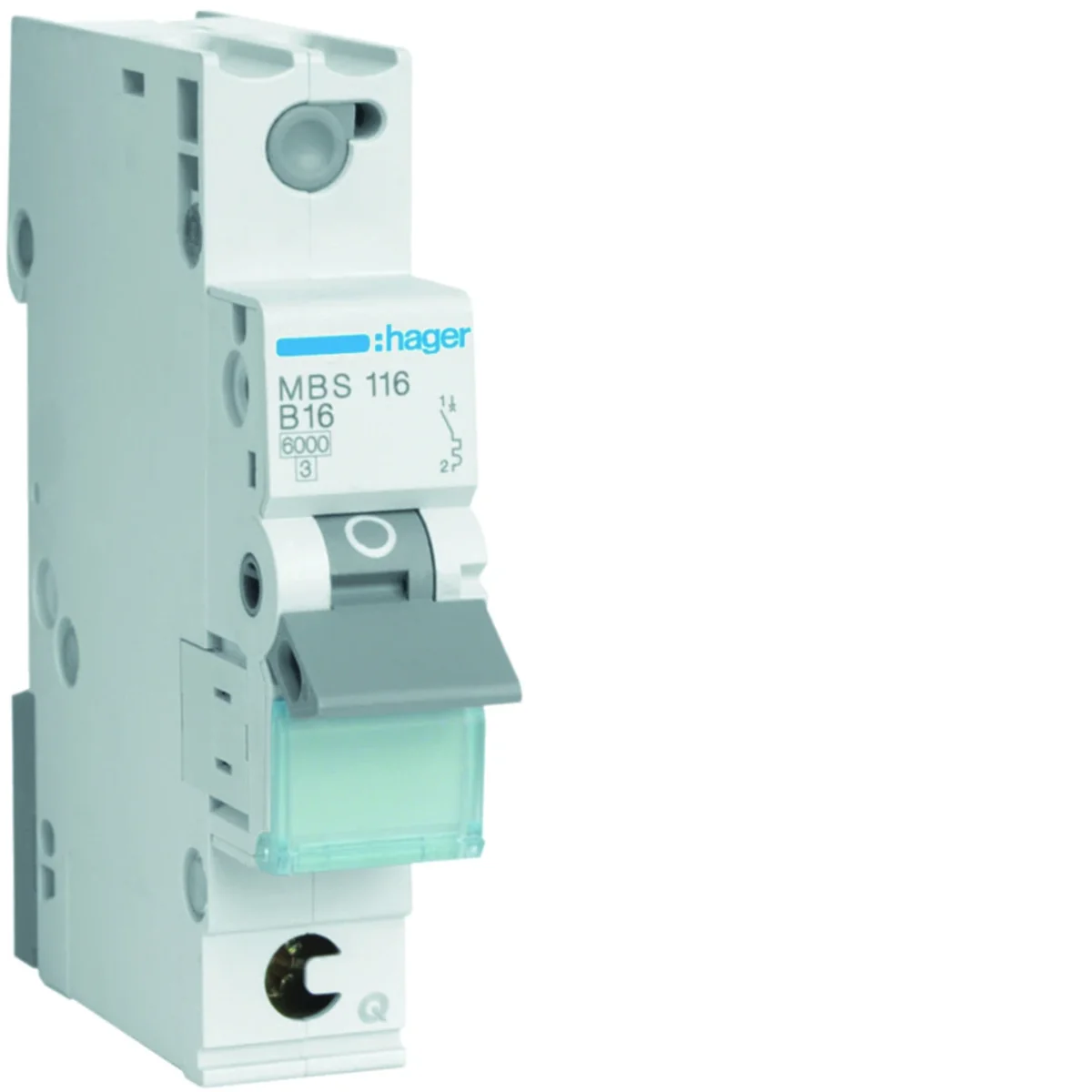

MCB Circuit breaker 6kA 1P B 16A QuickConnect MBS116

local index:
ABB074HAGE
Catalog No:
MBS116
EAN code:
3250614314735
Manufacturer: HAGER
Family: MCB
Price:
4,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

MCB Circuit breaker 6kA 1P B 16A QuickConnect

Technical data

  • Family
    MCB
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    1
  • Rated current
    16 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    6 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 144 pcs. 3456 pcs.
Weight (kg) 0,080 1,040 12,910 332,840
Width (m) 0,018 0,095 0,310 0,800
Length (m) 0,087 0,080 0,230 1,070
Depth (m) 0,073 0,225 0,360 1,200
