Click on the photo to enlarge

HAGER

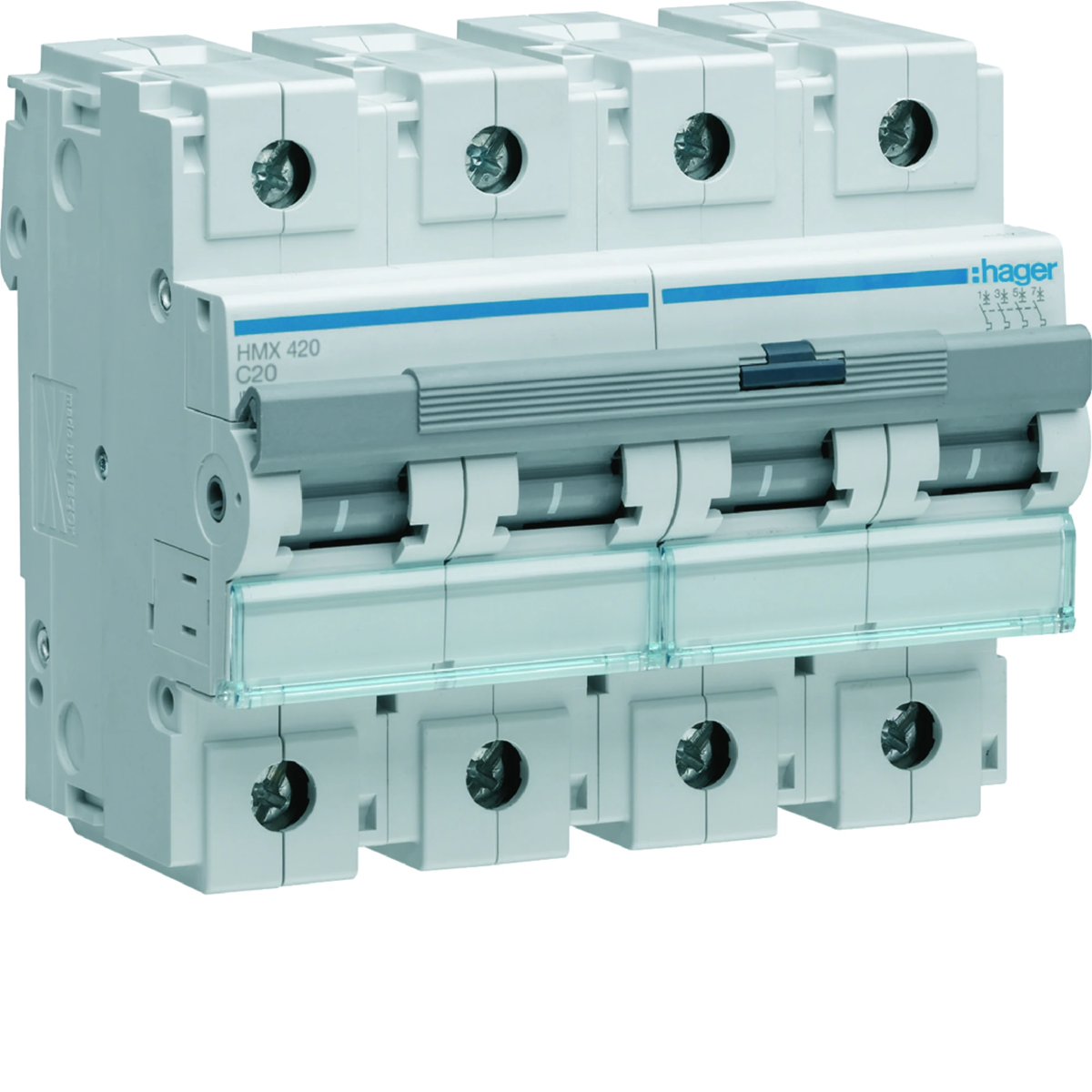

MCB Circuit breaker 50kA 4P C 20A HMX420

Name: MCB Circuit breaker 50kA 4P C 20A
Brand: HAGER
SKU: ABC080HAGE
Price: 478.72 PLN

local index:

ABC080HAGE

Catalog No:

HMX420

EAN code:

3250613232078

Price:

478,72 €

gross / pcs.

including VAT 23%

Availability:

up to 10 weeks (business days)

Delivery:

From 3,68 € (prepaid courier) Details

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

details

Payment methods:

details

Go to section:

Product description Technical data

Product description

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Report an error

Technical data

Characteristic

c
Depth [mm]

70
Tightening torque [Nm]

3.5 to 5
Rated current [A]

20
Level of security

IP20
power loss [W]

7.75
Width [mm]

106
Height [mm]

90
Mechanical durability (number of cycles)

20000
Rated switching voltage [V]

415
Number of modules

6
Ultimate short-circuit breaking capacity Icu for 230V [kA]

50
Ultimate short-circuit breaking capacity Icu for 400V [kA]

50
Ultimate short-circuit breaking capacity per pole for 400V [kA]

4.5
storage temperature [°C]

from -25 to 80
Rated current correction factor for 2 devices installed side by side

1
Rated surge voltage [V]

6000
Wire cross-section (cord) [mm²]

1.5 - 35

Rated frequency [Hz]

60
Number of poles

4
Rated insulation voltage [V]

500
Family

MCB
Power dissipation [W]

4.5
Power loss per pole [W]

1.97
Connection type

Clamps with alignment system
Electrical endurance (number of cycles)

4000
Operating temperature range [°C]

from -5 to 60
Rated short-circuit breaking capacity Icn [kA]

50
Max/min value of the AC current of the protection activation

8.5/12.75 in
Ultimate short-circuit breaking capacity Icu for 240V [kA]

50
Ultimate short-circuit breaking capacity Icu for 415V [kA]

50
Service short-circuit breaking capacity Ics [%]

50
Supply voltage type

AC
Rated current correction factor for 3 devices installed side by side

0.95
Number of protected poles

4
Conductor cross-section (wire) [mm²]

1.5 - 50

Other technical data

Built-in depth

70 mm
Number of poles (total)

4
Rated current

20 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

50 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 50 mm²

Release characteristic

C
Number of protected poles

4
Rated voltage

415 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

no
Pollution degree

3
Width in number of modular spacings

6
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 70 mm²
