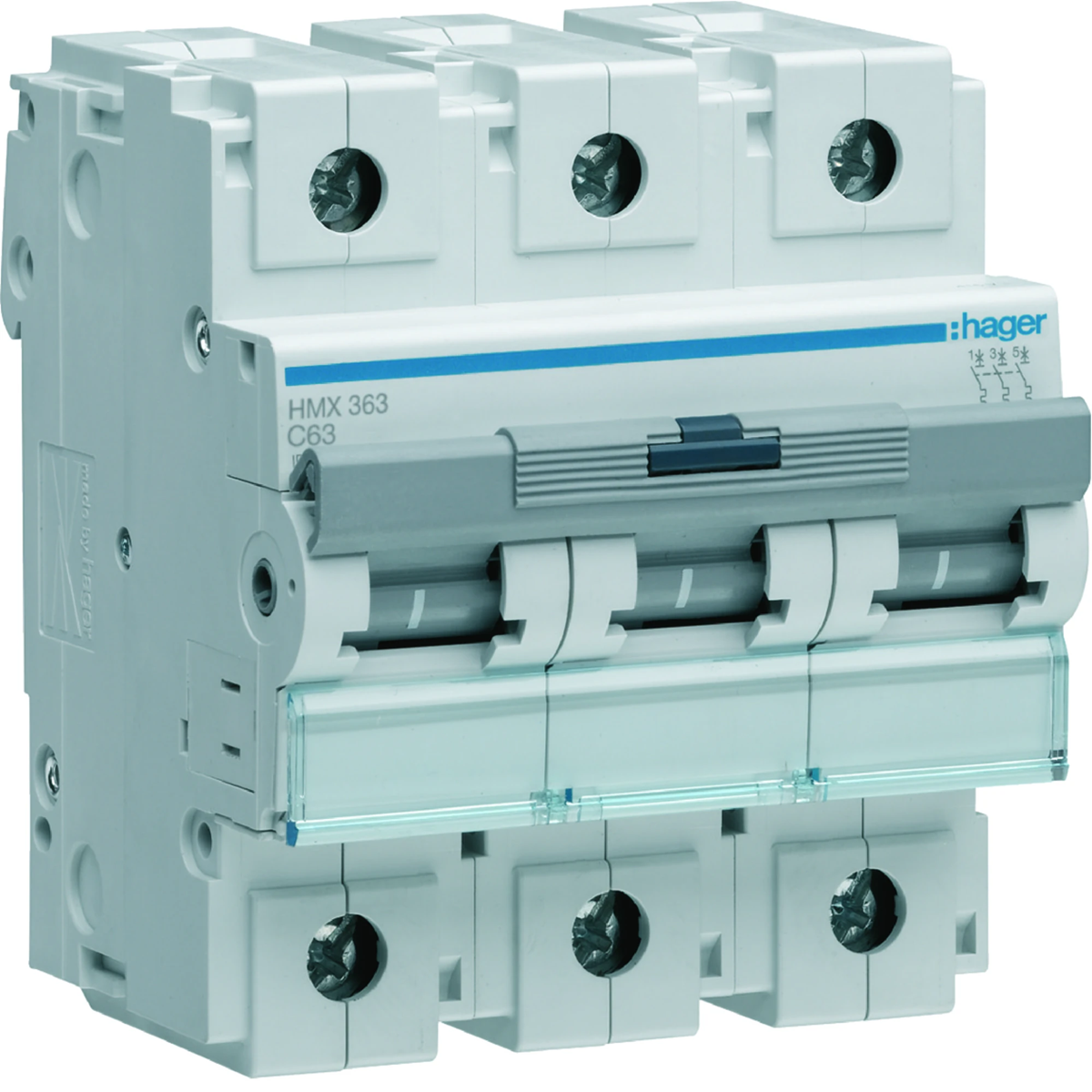

MCB Circuit breaker 50kA 3P C 63A HMX363
local index:
ABC029HAGE
Catalog No:
HMX363
EAN code:
3250613232047
Price:
384,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Circuit breakers 80 - 125 A, Type C
Rated ultimate short-circuit breaking capacity 50 kA:
• rated ultimate short-circuit breaking capacity (Icu): 50 kA, in accordance with PN-EN 60947-2,
• low power loss,
• the open state is indicated by a green marker above the lever,
• cage terminals: wire up to 70 mm², strand up to 35 mm²,
• the possibility of using residual current blocks.
Technical data
-
Rated frequency [Hz]50/60
-
Number of poles3
-
Rated insulation voltage [V]500
-
power loss [W]16.23
-
Working temperature [°C]-25 to 80
-
Electrical endurance (number of cycles)4000
-
Rated short-circuit breaking capacity [kA]50
-
Number of modules4.5
-
PKWIU27.12.22.0
-
Depth [mm]70
-
Tightening torque [Nm]3.5 to 5
-
Rated current [A]63
-
Width [mm]80
-
Height [mm]90
-
Mechanical durability (number of cycles)20000
-
Connection typeClamps with alignment system
-
AC rated voltage [V]415
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)3
-
Rated current63 A
-
Rated insulation voltage Ui500 V
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50 kA
-
Current limiting class3
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 50 mm²
-
Release characteristicC
-
Number of protected poles3
-
Rated voltage415 V
-
Rated impulse withstand voltage Uimp6 kV
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorNo
-
Pollution degree3
-
Width in number of modular spacings4.5
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 70 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 576 pcs. |
| Weight (kg) | 0,600 | 0,605 | 7,290 | 372,920 |
| Width (m) | 0,080 | 0,095 | 0,305 | 0,800 |
| Length (m) | 0,090 | 0,080 | 0,105 | 1,166 |
| Depth (m) | 0,072 | 0,100 | 0,360 | 1,200 |
