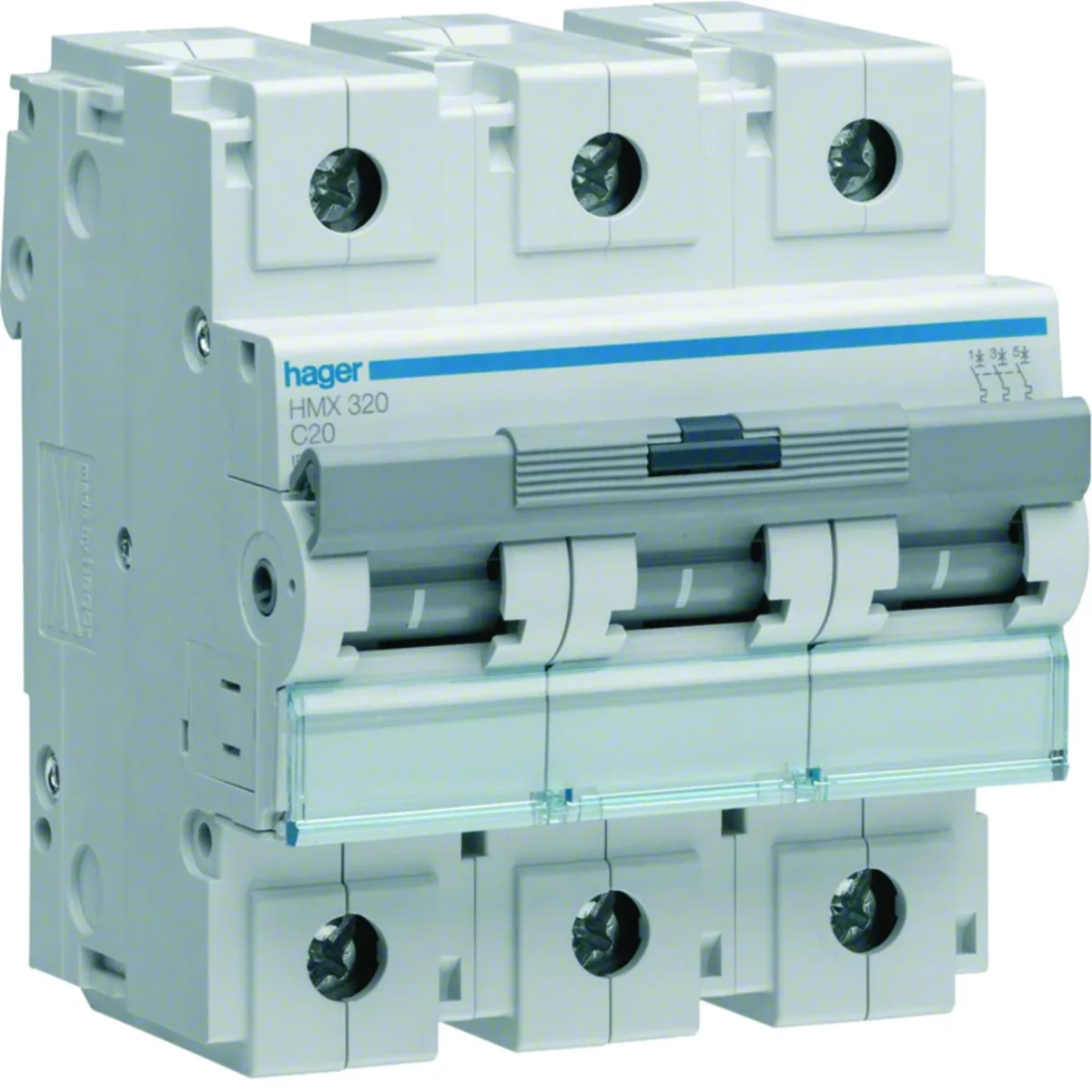

MCB Circuit breaker 50kA 3P C 20A HMX320

local index:
ABC073HAGE
Catalog No:
HMX320
EAN code:
3250613231996
Manufacturer: HAGER
Characteristic: c
Rated frequency [Hz]: 60
Depth [mm]: 70
Price:
361,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Technical data

  • Characteristic
    c
  • Depth [mm]
    70
  • Tightening torque [Nm]
    3.5 to 5
  • Rated current [A]
    20
  • Level of security
    IP20
  • power loss [W]
    5.8
  • Width [mm]
    80
  • Height [mm]
    90
  • Mechanical durability (number of cycles)
    20000
  • Rated switching voltage [V]
    415
  • Number of modules
    4.5
  • Ultimate short-circuit breaking capacity Icu for 230V [kA]
    50
  • Ultimate short-circuit breaking capacity Icu for 400V [kA]
    50
  • Ultimate short-circuit breaking capacity per pole for 400V [kA]
    4.5
  • storage temperature [°C]
    from -25 to 80
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    6000
  • Wire cross-section (cord) [mm²]
    1.5 - 35
  • PKWIU
    27.12.23.0
  • Rated frequency [Hz]
    60
  • Number of poles
    3
  • Rated insulation voltage [V]
    500
  • Family
    MCB
  • Power dissipation [W]
    4.5
  • Power loss per pole [W]
    1.97
  • Connection type
    Clamps with alignment system
  • Electrical endurance (number of cycles)
    4000
  • Operating temperature range [°C]
    from -5 to 60
  • Rated short-circuit breaking capacity Icn [kA]
    50
  • Max/min value of the AC current of the protection activation
    8.5/12.75 in
  • Ultimate short-circuit breaking capacity Icu for 240V [kA]
    50
  • Ultimate short-circuit breaking capacity Icu for 415V [kA]
    50
  • Service short-circuit breaking capacity Ics [%]
    50
  • Supply voltage type
    AC
  • Rated current correction factor for 3 devices installed side by side
    0.95
  • Number of protected poles
    3
  • Conductor cross-section (wire) [mm²]
    1.5 - 50

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    3
  • Rated current
    20 A
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    50 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 50 mm²
  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    50 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    4.5
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 70 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 288 pcs.
Weight (kg) 0,574 0,575 7,140 194,360
Width (m) 0,080 0,095 0,305 0,800
Length (m) 0,090 0,080 0,100 1,050
Depth (m) 0,072 0,100 0,355 1,200
