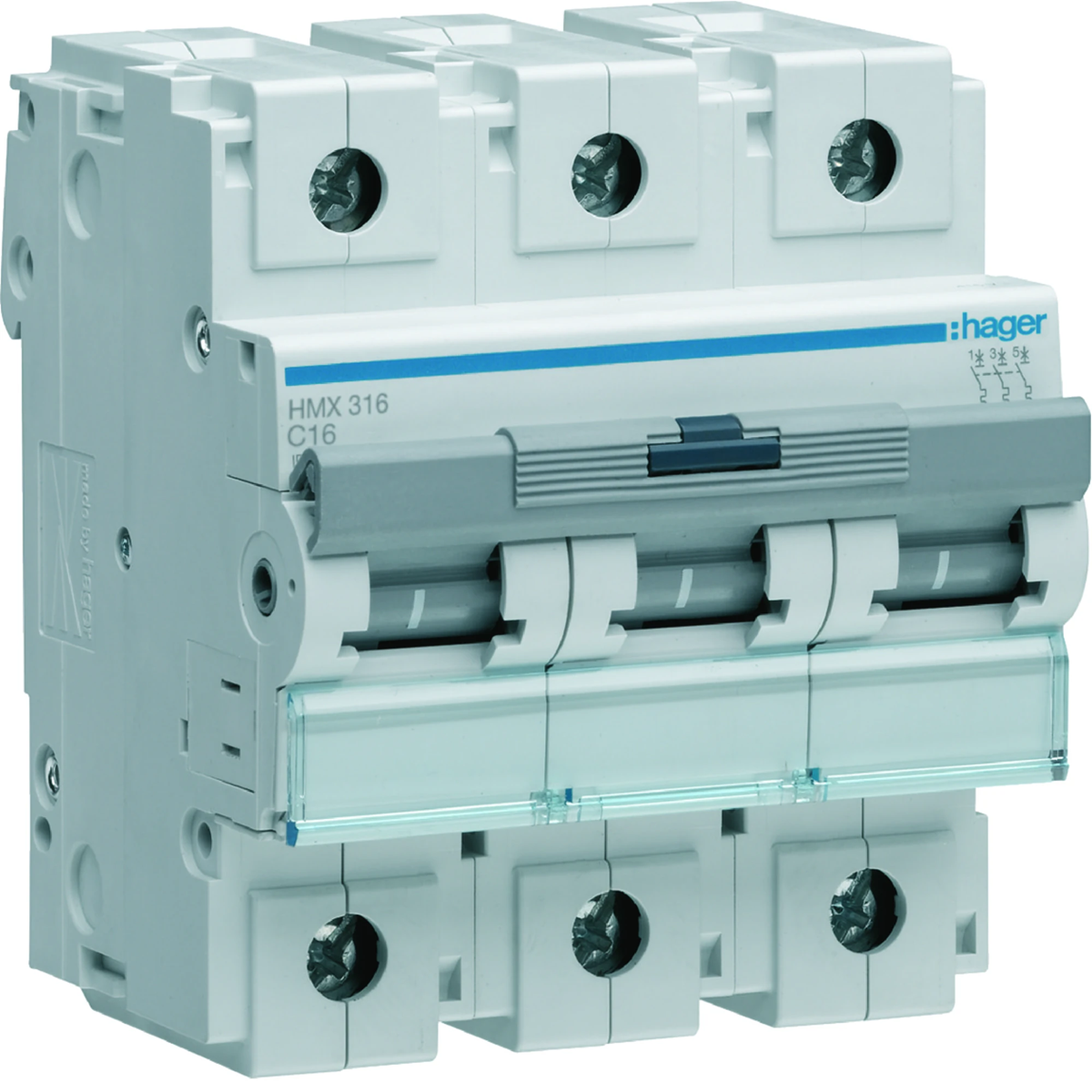

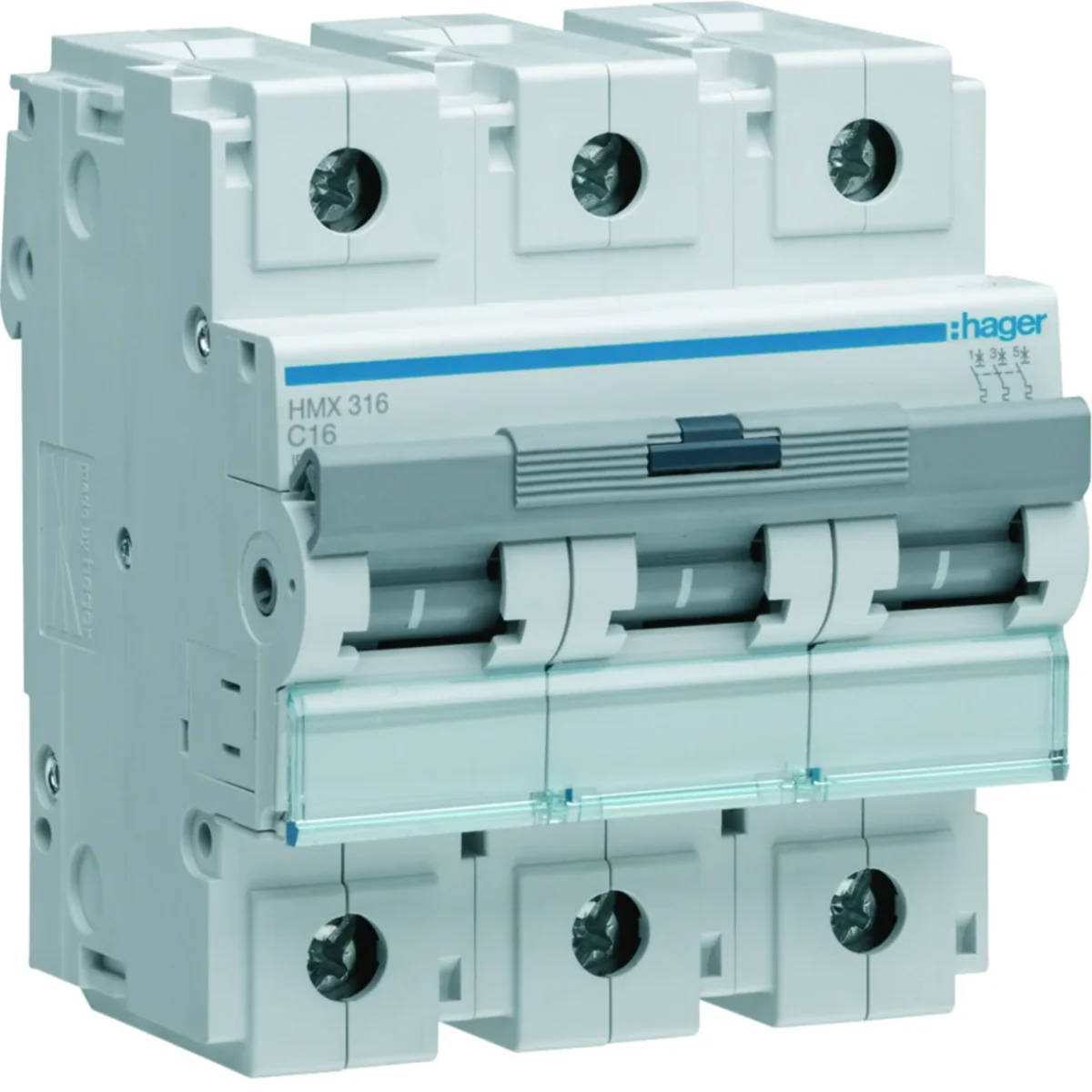

MCB Circuit breaker 50kA 3P C 16A HMX316

Name: MCB Circuit breaker 50kA 3P C 16A
Brand: HAGER
SKU: ABC072HAGE
Price: 386.75 PLN

local index:

ABC072HAGE

Catalog No:

HMX316

EAN code:

3250613231989

Click on the photo to enlarge

Manufacturer: HAGER

Characteristic: c

Rated frequency [Hz]: 60

Depth [mm]: 70

See full description

Price:

386,75 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Technical data

Characteristic

c
Depth [mm]

70
Tightening torque [Nm]

3.5 to 5
Rated current [A]

16
Level of security

IP20
power loss [W]

10.81
Width [mm]

80
Height [mm]

90
Mechanical durability (number of cycles)

20000
Rated switching voltage [V]

415
Number of modules

4.5
Ultimate short-circuit breaking capacity Icu for 230V [kA]

50
Ultimate short-circuit breaking capacity Icu for 400V [kA]

50
Ultimate short-circuit breaking capacity per pole for 400V [kA]

4.5
storage temperature [°C]

from -25 to 80
Rated current correction factor for 2 devices installed side by side

1
Rated surge voltage [V]

6000
Wire cross-section (cord) [mm²]

1.5 - 35
PKWIU

27.12.23.0

Rated frequency [Hz]

60
Number of poles

3
Rated insulation voltage [V]

500
Family

MCB
Power dissipation [W]

3.5
Power loss per pole [W]

3.61
Connection type

Clamps with alignment system
Electrical endurance (number of cycles)

4000
Operating temperature range [°C]

from -5 to 60
Rated short-circuit breaking capacity Icn [kA]

50
Max/min value of the AC current of the protection activation

7.9/11.9 in
Ultimate short-circuit breaking capacity Icu for 240V [kA]

50
Ultimate short-circuit breaking capacity Icu for 415V [kA]

50
Service short-circuit breaking capacity Ics [%]

50
Supply voltage type

AC
Rated current correction factor for 3 devices installed side by side

0.95
Number of protected poles

3
Conductor cross-section (wire) [mm²]

1.5 - 50

Other technical data

Built-in depth

70 mm
Number of poles (total)

3
Rated current

16 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

50 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 50 mm²

Release characteristic

C
Number of protected poles

3
Rated voltage

415 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

4.5
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 70 mm²

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	288 pcs.	1 pcs.	12 pcs.	288 pcs.
Weight (kg)	0,500	6,000	144,000	0,500	6,000	144,000
Width (m)	0,090	0,310	0,800	0,090	0,310	0,800
Length (m)	0,080	0,110	1,010	0,080	0,110	1,010
Depth (m)	0,100	0,360	1,200	0,100	0,360	1,200
