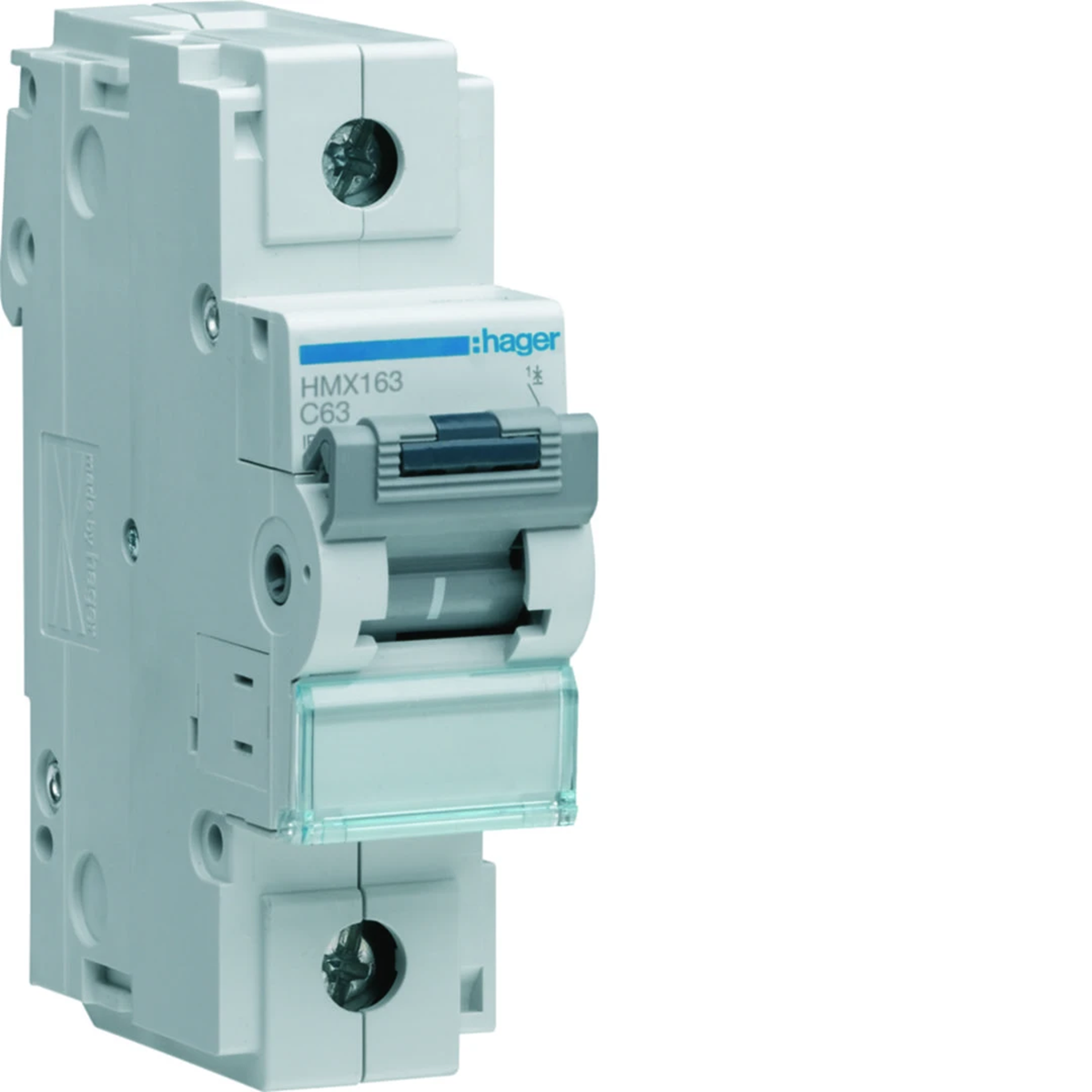

MCB Circuit breaker 50kA 1P C 63A HMX163

Name: MCB Circuit breaker 50kA 1P C 63A
Brand: HAGER
SKU: ABC062HAGE
Price: 622.65 PLN

Indice locale:

ABC062HAGE

Numero di catalogo:

HMX163

Codice EAN:

3250613231880

Clicca sulla foto per ingrandire

Produttore: HAGER

Characteristic: c

Rated frequency [Hz]: 60

Depth [mm]: 70

Vedi la descrizione completa

Prezzo:

622,65 zł

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 10 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Dati tecnici

Characteristic

c
Depth [mm]

70
Tightening torque [Nm]

3.5 to 5
Rated current [A]

63
Level of security

IP20
power loss [W]

5.36
Width [mm]

27
Height [mm]

90
Mechanical durability (number of cycles)

20000
Rated switching voltage [V]

240/415
Number of modules

1.5
Ultimate short-circuit breaking capacity Icu for 230V [kA]

50
Ultimate short-circuit breaking capacity Icu for 400V [kA]

50
Ultimate short-circuit breaking capacity per pole for 400V [kA]

4.5
storage temperature [°C]

from -25 to 80
Rated current correction factor for 2 devices installed side by side

1
Rated surge voltage [V]

6000
Wire cross-section (cord) [mm²]

1.5 - 35
PKWIU

27.12.23.0

Rated frequency [Hz]

60
Number of poles

1
Rated insulation voltage [V]

500
Family

MCB
Power dissipation [W]

13
Power loss per pole [W]

5.36
Connection type

Clamps with alignment system
Electrical endurance (number of cycles)

4000
Operating temperature range [°C]

from -5 to 60
Rated short-circuit breaking capacity Icn [kA]

50
Max/min value of the AC current of the protection activation

9.7/14.45 in
Ultimate short-circuit breaking capacity Icu for 240V [kA]

50
Ultimate short-circuit breaking capacity Icu for 415V [kA]

50
Service short-circuit breaking capacity Ics [%]

50
Supply voltage type

AC
Rated current correction factor for 3 devices installed side by side

0.95
Number of protected poles

1
Conductor cross-section (wire) [mm²]

1.5 - 50

Altri dati tecnici

Built-in depth

70 mm
Number of poles (total)

1
Rated current

63 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

50 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 50 mm²

Release characteristic

C
Number of protected poles

1
Rated voltage

415 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

1.5
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 70 mm²

Dettagli del produttore

Produttore

Hager Electro S.A.S.
Indirizzo

FR 67215 Obernai 123 boulevard d’Europe Francja
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Pakiet	Paleta
Quantità	1 pezzi	36 pezzi	864 pezzi
Peso (kg)	0,200	7,200	172,800
Larghezza (m)	0,080	0,310	0,800
Lunghezza (m)	0,040	0,210	1,010
Profondità (m)	0,090	0,360	1,200
