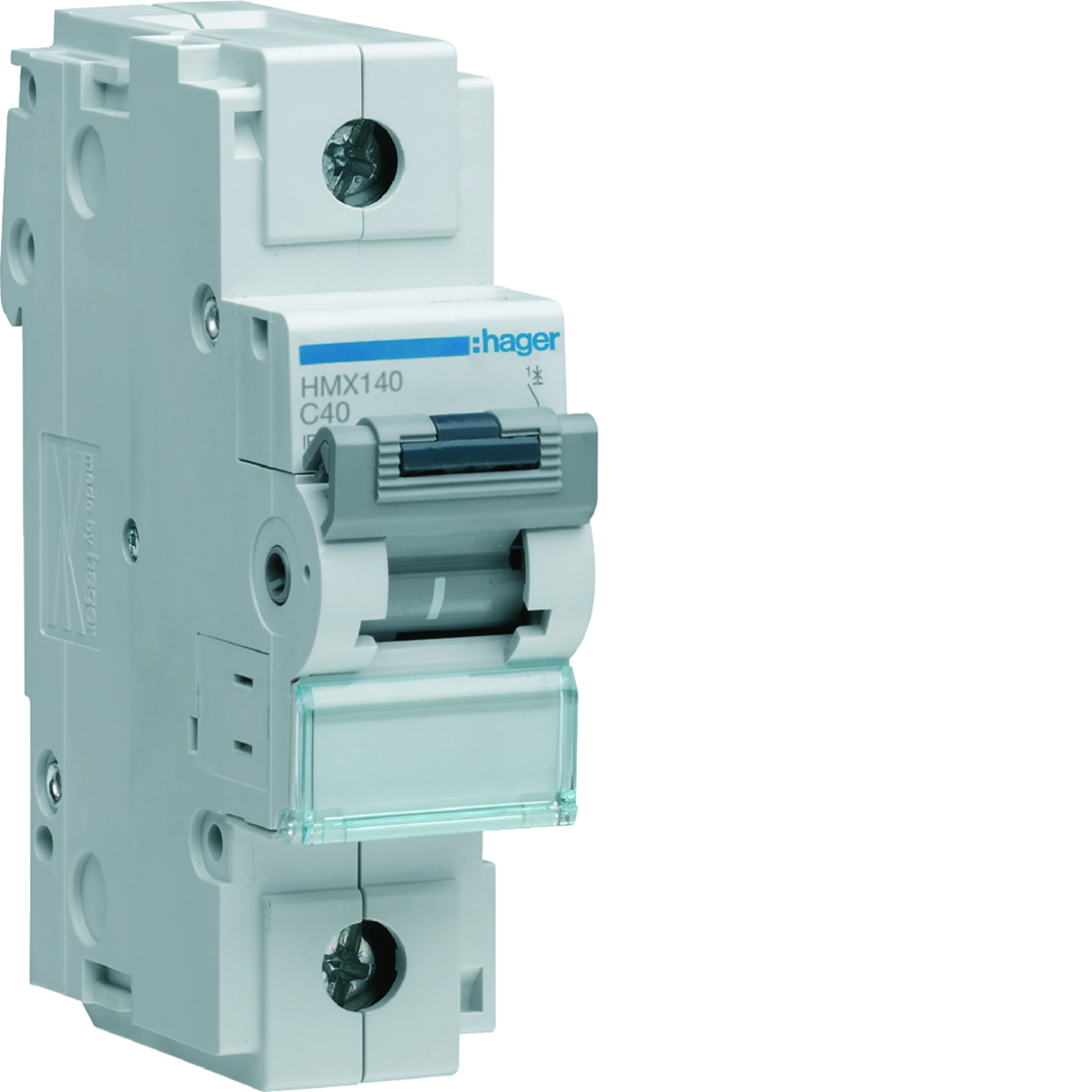

MCB Circuit breaker 50kA 1P C 40A HMX140
local index:
ABC060HAGE
Catalog No:
HMX140
EAN code:
3250613231866
Price:
137,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between a line conductor and an accessible conductive part or a protective conductor.
Technical data
-
Characteristicc
-
Depth [mm]70
-
Tightening torque [Nm]3.5 to 5
-
Rated current [A]40
-
Level of securityIP20
-
power loss [W]3.64
-
Width [mm]27
-
Height [mm]90
-
Mechanical durability (number of cycles)20000
-
Rated switching voltage [V]240/415
-
Number of modules1.5
-
Ultimate short-circuit breaking capacity Icu for 230V [kA]50
-
Ultimate short-circuit breaking capacity Icu for 400V [kA]50
-
Ultimate short-circuit breaking capacity per pole for 400V [kA]4.5
-
storage temperature [°C]from -25 to 80
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]6000
-
Wire cross-section (cord) [mm²]1.5 - 35
-
PKWIU27.12.23.0
-
Rated frequency [Hz]60
-
Number of poles1
-
Rated insulation voltage [V]500
-
FamilyMCB
-
Power dissipation [W]7.5
-
Power loss per pole [W]3.64
-
Connection typeClamps with alignment system
-
Electrical endurance (number of cycles)4000
-
Operating temperature range [°C]from -5 to 60
-
Rated short-circuit breaking capacity Icn [kA]50
-
Max/min value of the AC current of the protection activation9.1/13.6 in
-
Ultimate short-circuit breaking capacity Icu for 240V [kA]50
-
Ultimate short-circuit breaking capacity Icu for 415V [kA]50
-
Service short-circuit breaking capacity Ics [%]50
-
Supply voltage typeAC
-
Rated current correction factor for 3 devices installed side by side0.95
-
Number of protected poles1
-
Conductor cross-section (wire) [mm²]1.5 - 50
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)1
-
Rated current40 A
-
Rated insulation voltage Ui500 V
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50 kA
-
Current limiting class3
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 50 mm²
-
Release characteristicC
-
Number of protected poles1
-
Rated voltage415 V
-
Rated impulse withstand voltage Uimp6 kV
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorNo
-
Pollution degree3
-
Width in number of modular spacings1.5
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 70 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,200 | 0,205 | 5,070 | 144,680 |
| Width (m) | 0,026 | 0,080 | 0,310 | 0,800 |
| Length (m) | 0,090 | 0,045 | 0,100 | 1,010 |
| Depth (m) | 0,072 | 0,100 | 0,360 | 1,200 |
