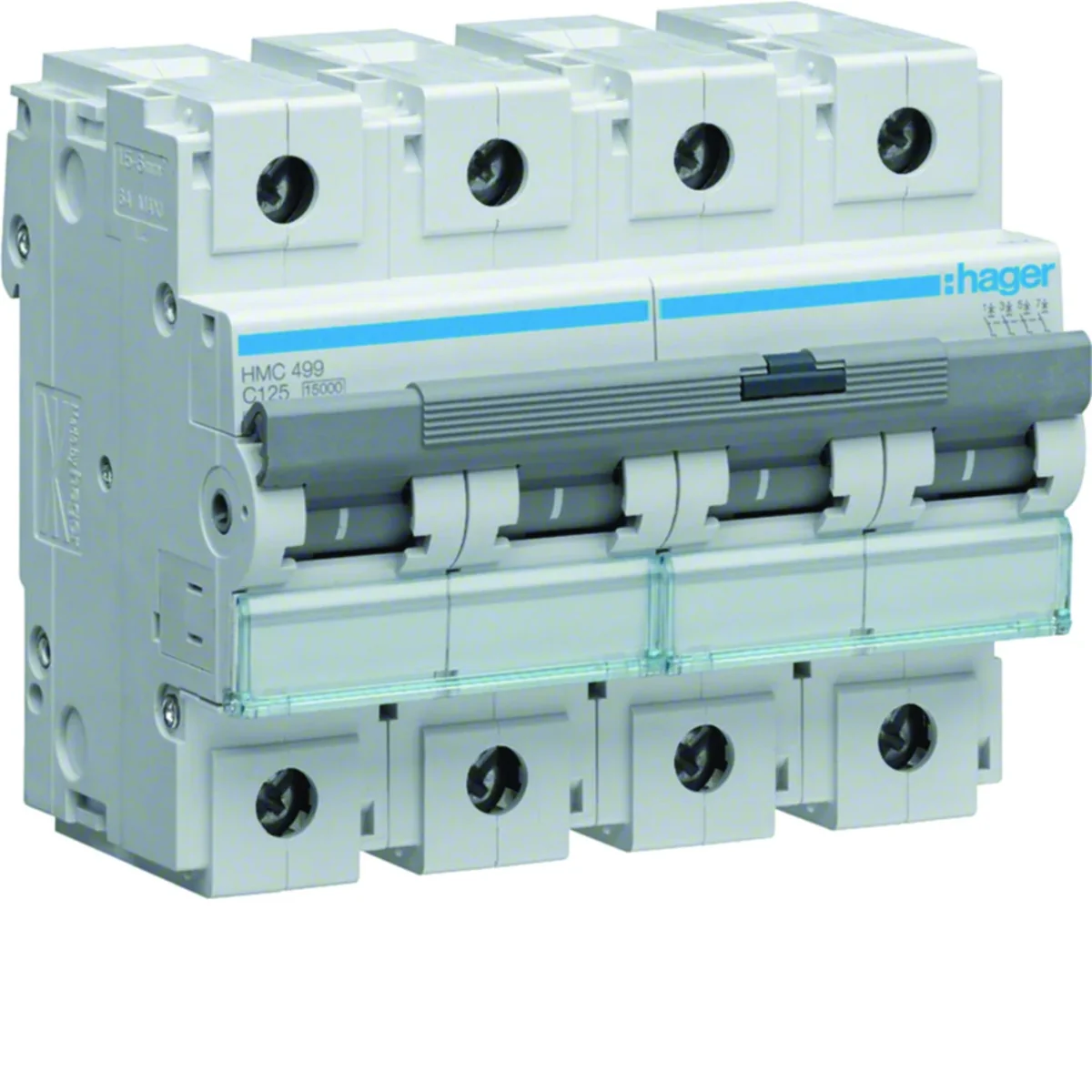

MCB Circuit breaker 15kA 4P C 125A HMC499
local index:
ABC038HAGE
Catalog No:
HMC499
EAN code:
3250613230241
Price:
347,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.
Technical data
-
Characteristicc
-
Depth [mm]70
-
Tightening torque [Nm]3.5 to 5
-
Rated current [A]125
-
Level of securityIP20
-
power loss [W]42.25
-
Width [mm]106
-
Height [mm]90
-
Mechanical durability (number of cycles)20000
-
Rated switching voltage [V]415
-
Number of modules6
-
Ultimate short-circuit breaking capacity Icu for 230V [kA]15
-
Ultimate short-circuit breaking capacity Icu for 400V [kA]15
-
Ultimate short-circuit breaking capacity per pole for 400V [kA]4.5
-
Rated current at 40°C [A]119
-
Rated current at 50°C [A]112
-
Rated current at 60°C [A]105.6
-
Operating short-circuit breaking current Ics [kA]7.5
-
Supply voltage typeAC
-
Rated current correction factor for 3 devices installed side by side0.95
-
Number of protected poles4
-
Conductor cross-section (wire) [mm²]70
-
Rated frequency [Hz]60
-
Number of poles4
-
Rated insulation voltage [V]500
-
FamilyMCB
-
Power dissipation [W]20
-
Power loss per pole [W]11.56
-
Connection typeClamps with alignment system
-
Electrical endurance (number of cycles)4000
-
Operating temperature range [°C]from -5 to 60
-
Rated short-circuit breaking capacity Icn [kA]15
-
Max/min value of the AC current of the protection activation5/10 In
-
Ultimate short-circuit breaking capacity Icu for 240V [kA]15
-
Ultimate short-circuit breaking capacity Icu for 415V [kA]15
-
Rated current at 30°C [A]125
-
Rated current at 45°C [A]115.7
-
Rated current at 55°C [A]109.1
-
Service short-circuit breaking capacity Ics [%]50
-
storage temperature [°C]from -25 to 80
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]6000
-
Wire cross-section (cord) [mm²]35
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)4
-
Rated current125 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
-
Concurrently switching neutral conductorNo
-
Pollution degree3
-
Width in number of modular spacings6
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 70 mm²
-
Release characteristicC
-
Number of protected poles4
-
Rated voltage415 V
-
Rated impulse withstand voltage Uimp6 kV
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 50 mm²
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 504 pcs. |
| Weight (kg) | 0,949 | 0,950 | 11,548 | 508,016 |
| Width (m) | 0,106 | 0,100 | 0,305 | 0,800 |
| Length (m) | 0,090 | 0,089 | 0,125 | 1,326 |
| Depth (m) | 0,072 | 0,124 | 0,360 | 1,200 |
