el12 Electrical apparatus fuses Circuit breakers with "C" characteristic
el12 sale Get in the game - HAGER

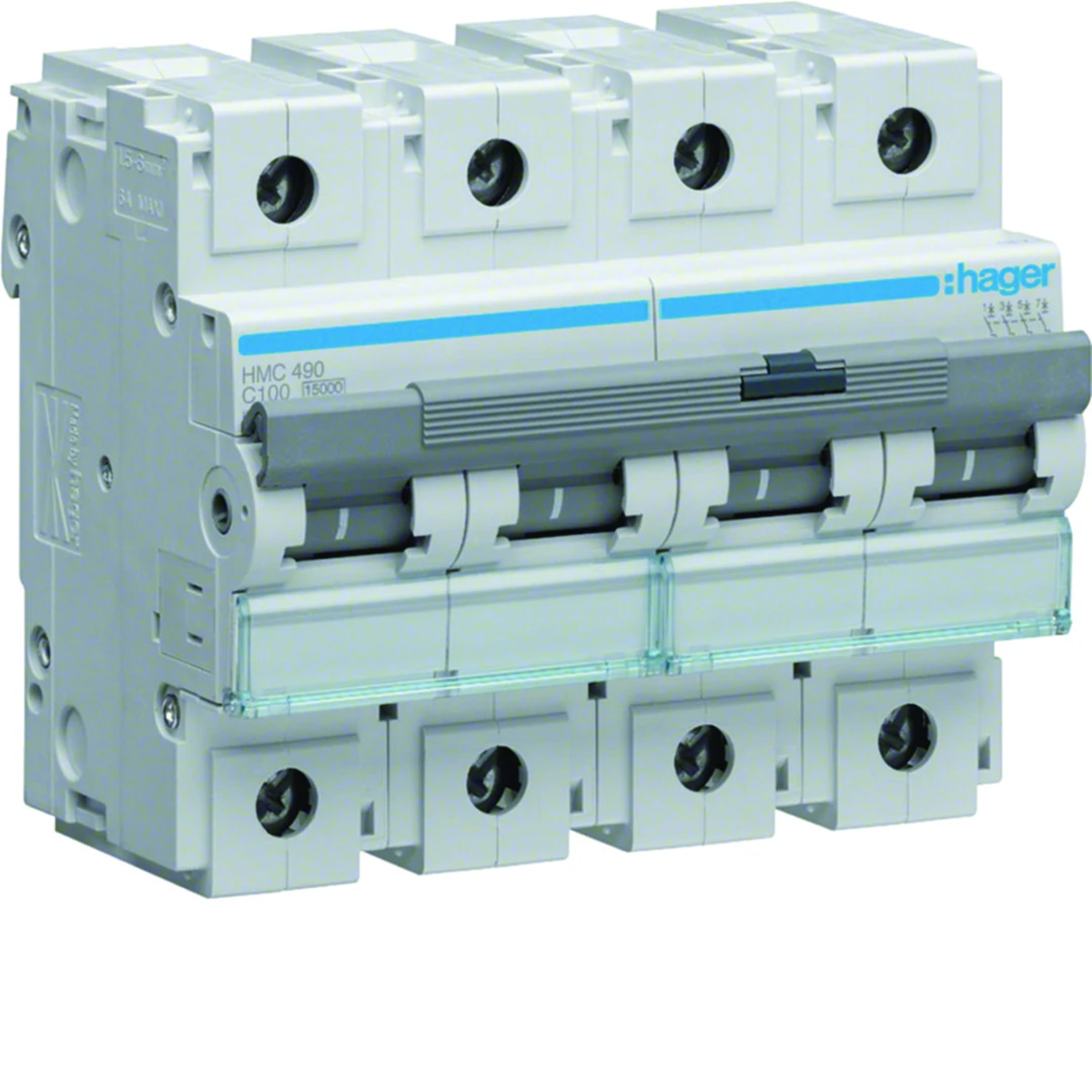

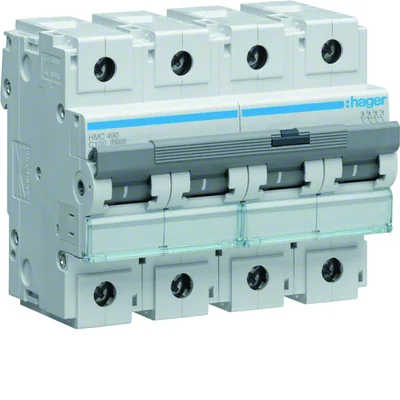

MCB Circuit breaker 15kA 4P C 100A HMC490

Indice locale:
ABC037HAGE
Numero di catalogo:
HMC490
Codice EAN:
3250613230234
MCB Circuit breaker 15kA 4P C 100A
MCB Circuit breaker 15kA 4P C 100A
MCB Circuit breaker 15kA 4P C 100A
MCB Circuit breaker 15kA 4P C 100A

Clicca sulla foto per ingrandire

Produttore: HAGER
Characteristic: c
Rated frequency [Hz]: 60
Depth [mm]: 70
Vedi la descrizione completa
Prezzo:
1551,35 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 10 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Dati tecnici

  • Characteristic
    c
  • Depth [mm]
    70
  • Tightening torque [Nm]
    3.5 to 5
  • Rated current [A]
    100
  • Level of security
    IP20
  • power loss [W]
    28.1
  • Width [mm]
    106
  • Height [mm]
    90
  • Mechanical durability (number of cycles)
    20000
  • Rated switching voltage [V]
    415
  • Number of modules
    6
  • Ultimate short-circuit breaking capacity Icu for 230V [kA]
    15
  • Ultimate short-circuit breaking capacity Icu for 400V [kA]
    15
  • Ultimate short-circuit breaking capacity per pole for 400V [kA]
    4.5
  • Rated current at 30°C [A]
    100
  • Rated current at 45°C [A]
    89.4
  • Rated current at 55°C [A]
    81.6
  • Service short-circuit breaking capacity Ics [%]
    50
  • storage temperature [°C]
    from -25 to 80
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    6000
  • Wire cross-section (cord) [mm²]
    35
  • PKWIU
    27.12.22.0
  • Rated frequency [Hz]
    60
  • Number of poles
    4
  • Rated insulation voltage [V]
    500
  • Family
    MCB
  • Power dissipation [W]
    15
  • Power loss per pole [W]
    7.74
  • Connection type
    Clamps with alignment system
  • Electrical endurance (number of cycles)
    4000
  • Operating temperature range [°C]
    from -5 to 60
  • Rated short-circuit breaking capacity Icn [kA]
    15
  • Max/min value of the AC current of the protection activation
    5/10 In
  • Ultimate short-circuit breaking capacity Icu for 240V [kA]
    15
  • Ultimate short-circuit breaking capacity Icu for 415V [kA]
    15
  • Rated current at 20°C [A]
    108
  • Rated current at 40°C [A]
    93.1
  • Rated current at 50°C [A]
    85.6
  • Rated current at 60°C [A]
    77.5
  • Operating short-circuit breaking current Ics [kA]
    7.5
  • Supply voltage type
    AC
  • Rated current correction factor for 3 devices installed side by side
    0.95
  • Number of protected poles
    4
  • Conductor cross-section (wire) [mm²]
    70

Altri dati tecnici

  • Built-in depth
    70 mm
  • Number of poles (total)
    4
  • Rated current
    100 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    15 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    15 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    6
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 70 mm²
  • Release characteristic
    C
  • Number of protected poles
    4
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 50 mm²

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 12 pezzi 504 pezzi
Peso (kg) 0,940 11,380 478,290
Larghezza (m) 0,100 0,300 0,800
Lunghezza (m) 0,080 0,120 1,050
Profondità (m) 0,120 0,360 1,200
