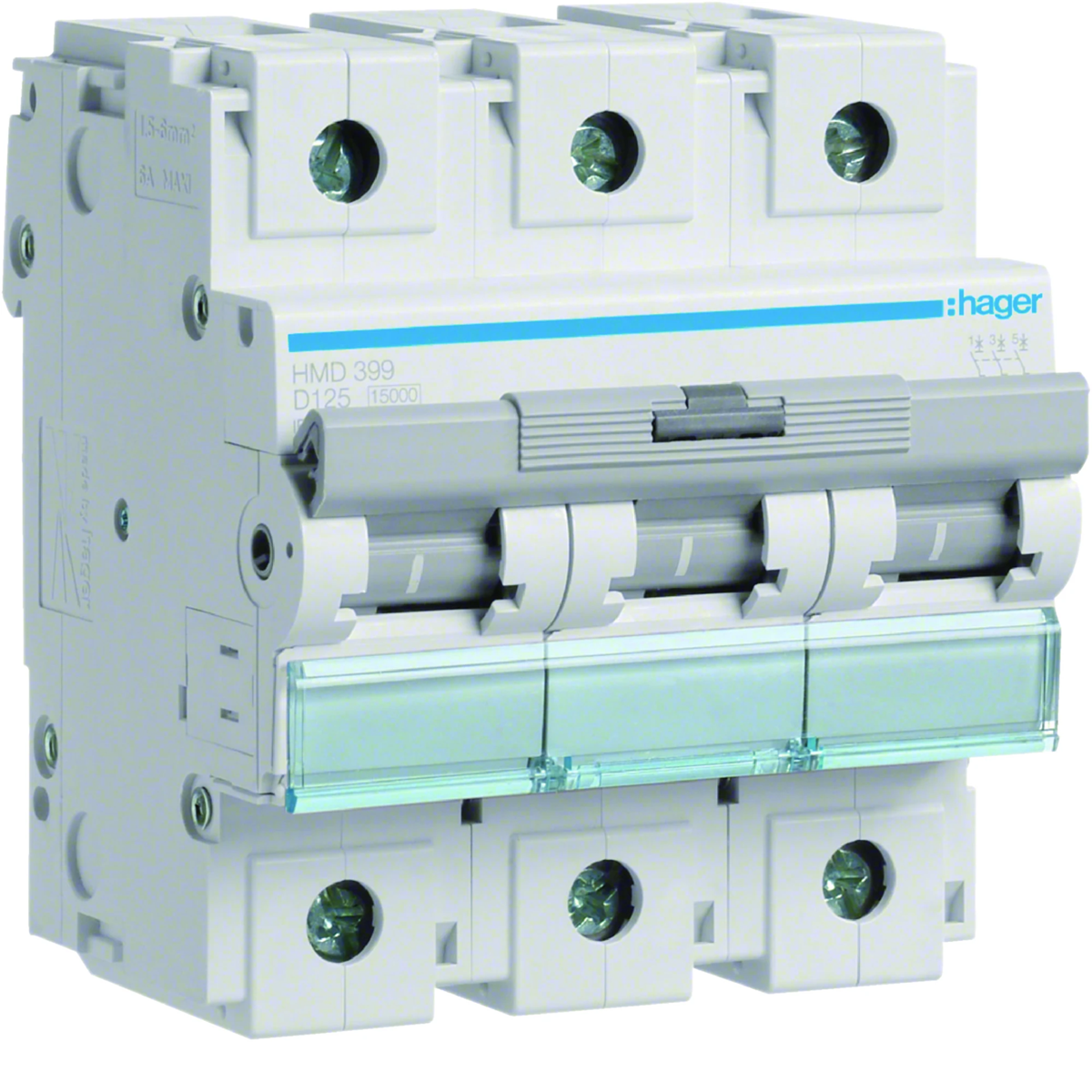

MCB Circuit breaker 15kA 3P D 125A HMD399
local index:
ABD516HAGE
Catalog No:
HMD399
EAN code:
3250613230333
Price:
344,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Rated short-circuit breaking capacity 15000 A. • rated short-circuit switching capacity (Icn): 15000 A, in accordance with PN-EN 60898-1
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2
• low power loss
• the open state is indicated by a green marker above the lever
• cage clamps: wire up to 70 mm2, strand up to 35 mm2
• the possibility of using residual current blocks
• rated ultimate short-circuit breaking capacity (Icu): 15 kA, in accordance with PN-EN 60947-2
• low power loss
• the open state is indicated by a green marker above the lever
• cage clamps: wire up to 70 mm2, strand up to 35 mm2
• the possibility of using residual current blocks
Technical data
-
Characteristicd
-
Number of poles3
-
Rated insulation voltage [V]500
-
Power dissipation [W]13.5
-
Number of modules4.5
-
Number of modules4.5
-
Rated voltage [V]400
-
Rated current [A]125
-
Rated short-circuit breaking capacity [kA]15
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)3
-
Rated current125 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
-
Concurrently switching neutral conductorNo
-
Pollution degree3
-
Width in number of modular spacings4.5
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 70 mm²
-
Release characteristicD
-
Number of protected poles3
-
Rated voltage415 V
-
Rated impulse withstand voltage Uimp6 kV
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 50 mm²
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 504 pcs. |
| Weight (kg) | 0,712 | 0,724 | 8,950 | 398,900 |
| Width (m) | 0,080 | 0,095 | 0,313 | 0,800 |
| Length (m) | 0,090 | 0,080 | 0,105 | 0,885 |
| Depth (m) | 0,072 | 0,100 | 0,360 | 1,200 |
