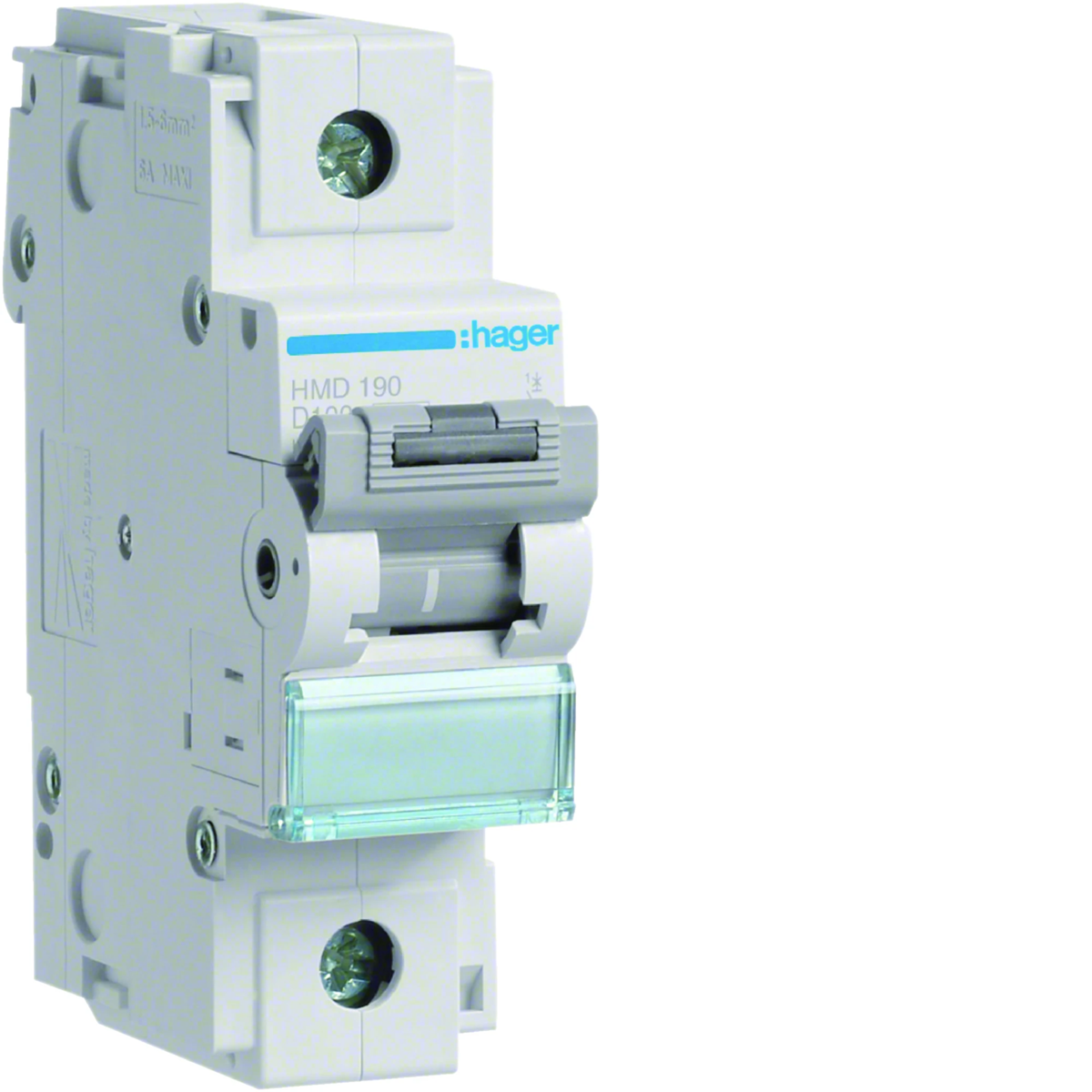

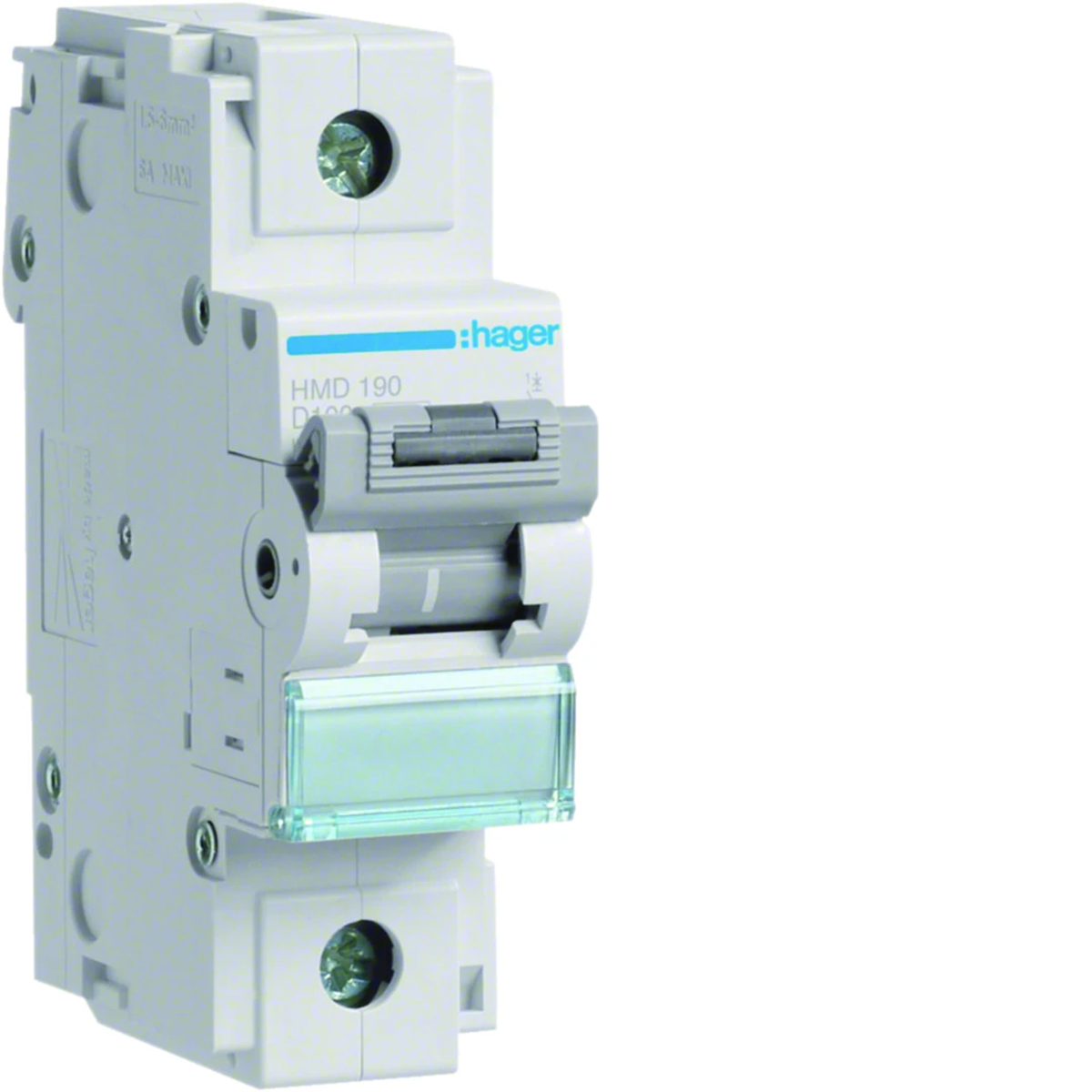

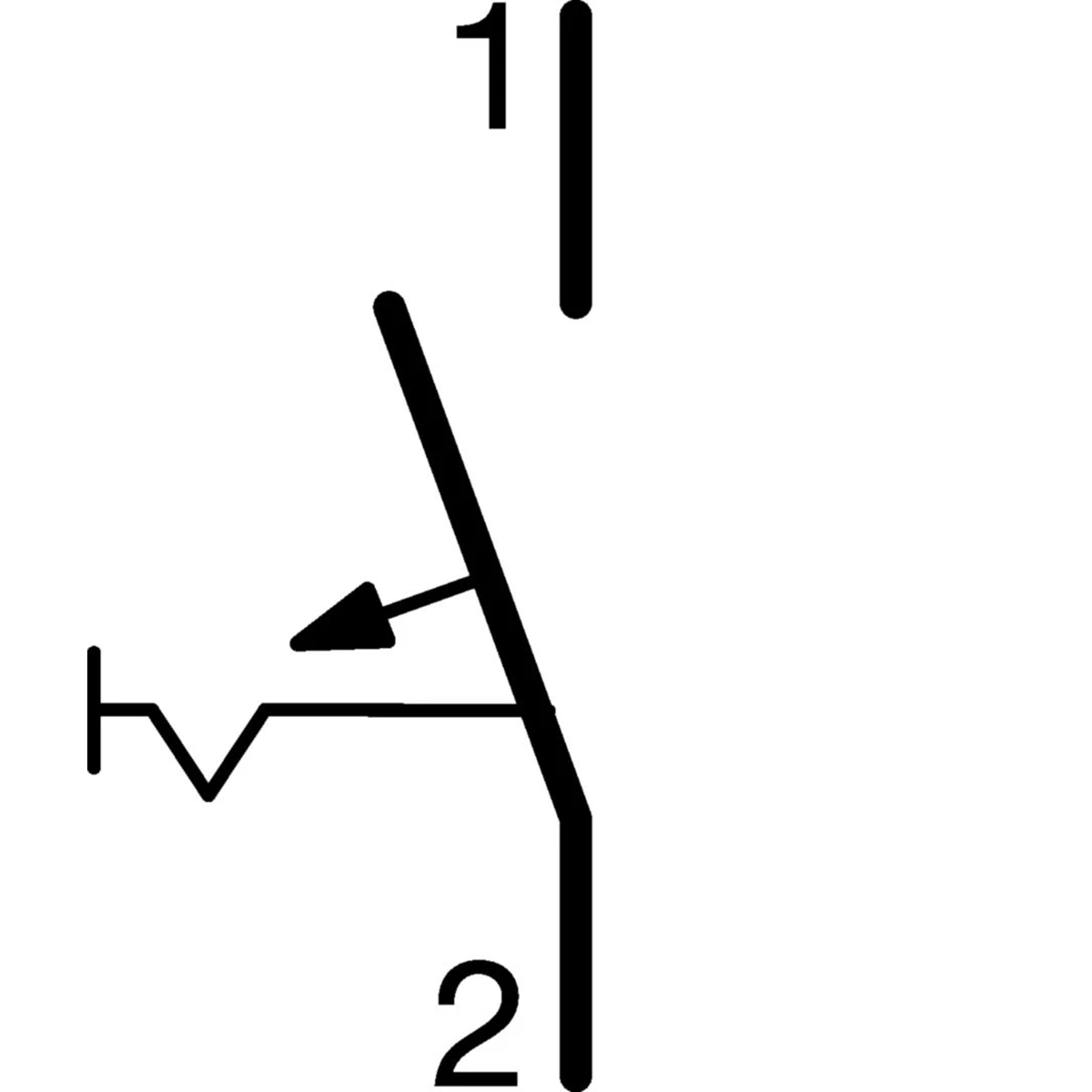

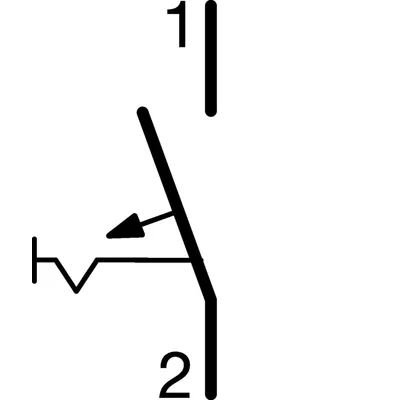

MCB Circuit breaker 15kA 1P D 100A HMD190

local index:
ABD026HAGE
Catalog No:
HMD190
EAN code:
3250613230265
Manufacturer: HAGER
Characteristic: d
Rated frequency [Hz]: 60
Depth [mm]: 70
Price:
107,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between a line conductor and an accessible conductive part or a protective conductor.

Technical data

  • Characteristic
    d
  • Depth [mm]
    70
  • Tightening torque [Nm]
    3.5 to 5
  • Rated current [A]
    100
  • Level of security
    IP20
  • power loss [W]
    6.48
  • Width [mm]
    27
  • Height [mm]
    90
  • Mechanical durability (number of cycles)
    20000
  • Rated switching voltage [V]
    240/415
  • Number of modules
    1.5
  • Ultimate short-circuit breaking capacity Icu for 230V [kA]
    15
  • Ultimate short-circuit breaking capacity Icu for 400V [kA]
    15
  • Ultimate short-circuit breaking capacity per pole for 400V [kA]
    4.5
  • Rated current at 30°C [A]
    100
  • Rated current at 45°C [A]
    89.4
  • Rated current at 55°C [A]
    81.6
  • Service short-circuit breaking capacity Ics [%]
    50
  • storage temperature [°C]
    from -25 to 80
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    6000
  • Wire cross-section (cord) [mm²]
    35
  • PKWIU
    27.12.22.0
  • Rated frequency [Hz]
    60
  • Number of poles
    1
  • Rated insulation voltage [V]
    500
  • Family
    MCB
  • Power dissipation [W]
    15
  • Power loss per pole [W]
    6.48
  • Connection type
    Clamps with alignment system
  • Electrical endurance (number of cycles)
    4000
  • Operating temperature range [°C]
    from -5 to 60
  • Rated short-circuit breaking capacity Icn [kA]
    15
  • Max/min value of the AC current of the protection activation
    10/20 In
  • Ultimate short-circuit breaking capacity Icu for 240V [kA]
    15
  • Ultimate short-circuit breaking capacity Icu for 415V [kA]
    15
  • Rated current at 20°C [A]
    108
  • Rated current at 40°C [A]
    93.1
  • Rated current at 50°C [A]
    85.6
  • Rated current at 60°C [A]
    77.5
  • Operating short-circuit breaking current Ics [kA]
    7.5
  • Supply voltage type
    AC
  • Rated current correction factor for 3 devices installed side by side
    0.95
  • Number of protected poles
    1
  • Conductor cross-section (wire) [mm²]
    70

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    1
  • Rated current
    100 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    15 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    15 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    1.5
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 70 mm²
  • Release characteristic
    D
  • Number of protected poles
    1
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 50 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1512 pcs.
Weight (kg) 0,240 0,245 8,945 398,690
Width (m) 0,026 0,080 0,313 0,800
Length (m) 0,090 0,040 0,130 1,050
Depth (m) 0,072 0,100 0,360 1,200
