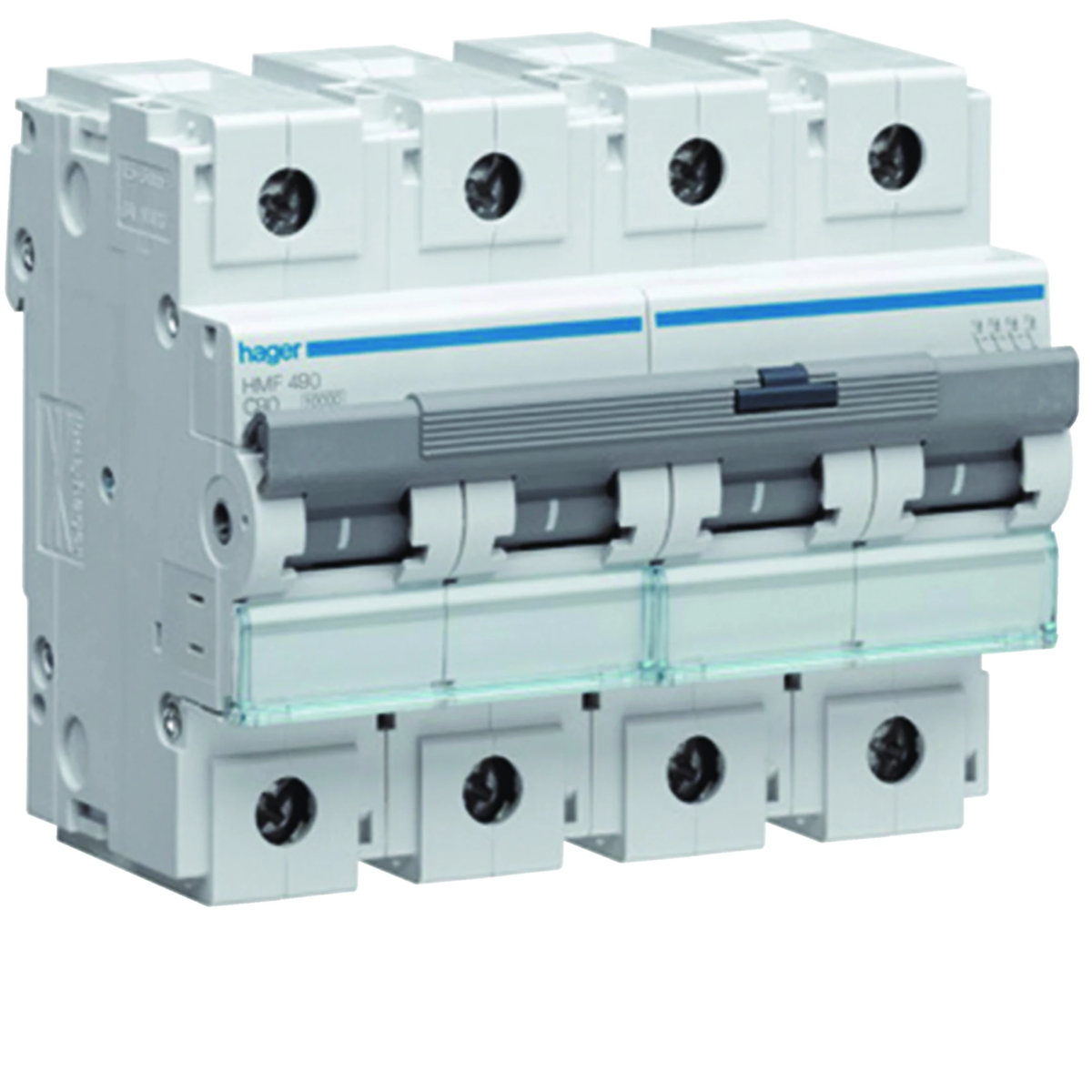

MCB Circuit breaker 10kA 4P C 100A HMF490

local index:
ABC027HAGE
Catalog No:
HMF490
EAN code:
3250613231071
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 70
Number of poles: 4
Price:
255,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

MCB Circuit breaker

Technical data

  • Rated frequency [Hz]
    50/60
  • Number of poles
    4
  • Rated insulation voltage [V]
    500
  • Power dissipation [W]
    28.1
  • Working temperature [°C]
    -5 to 60
  • Electrical endurance (number of cycles)
    4000
  • Rated short-circuit breaking capacity [kA]
    10
  • Number of modules
    6
  • PKWIU
    27.12.23.0
  • Depth [mm]
    70
  • Tightening torque [Nm]
    3.5 to 5
  • Rated current [A]
    100
  • Width [mm]
    106
  • Height [mm]
    90
  • Mechanical durability (number of cycles)
    20000
  • Connection type
    Clamps with alignment system
  • AC rated voltage [V]
    415

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    4
  • Rated current
    100 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    6
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 70 mm²
  • Release characteristic
    C
  • Number of protected poles
    4
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    10 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 50 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 504 pcs.
Weight (kg) 0,954 0,955 11,655 512,510
Width (m) 0,097 0,100 0,310 0,800
Length (m) 0,082 0,085 0,125 1,334
Depth (m) 0,120 0,120 0,360 1,200
