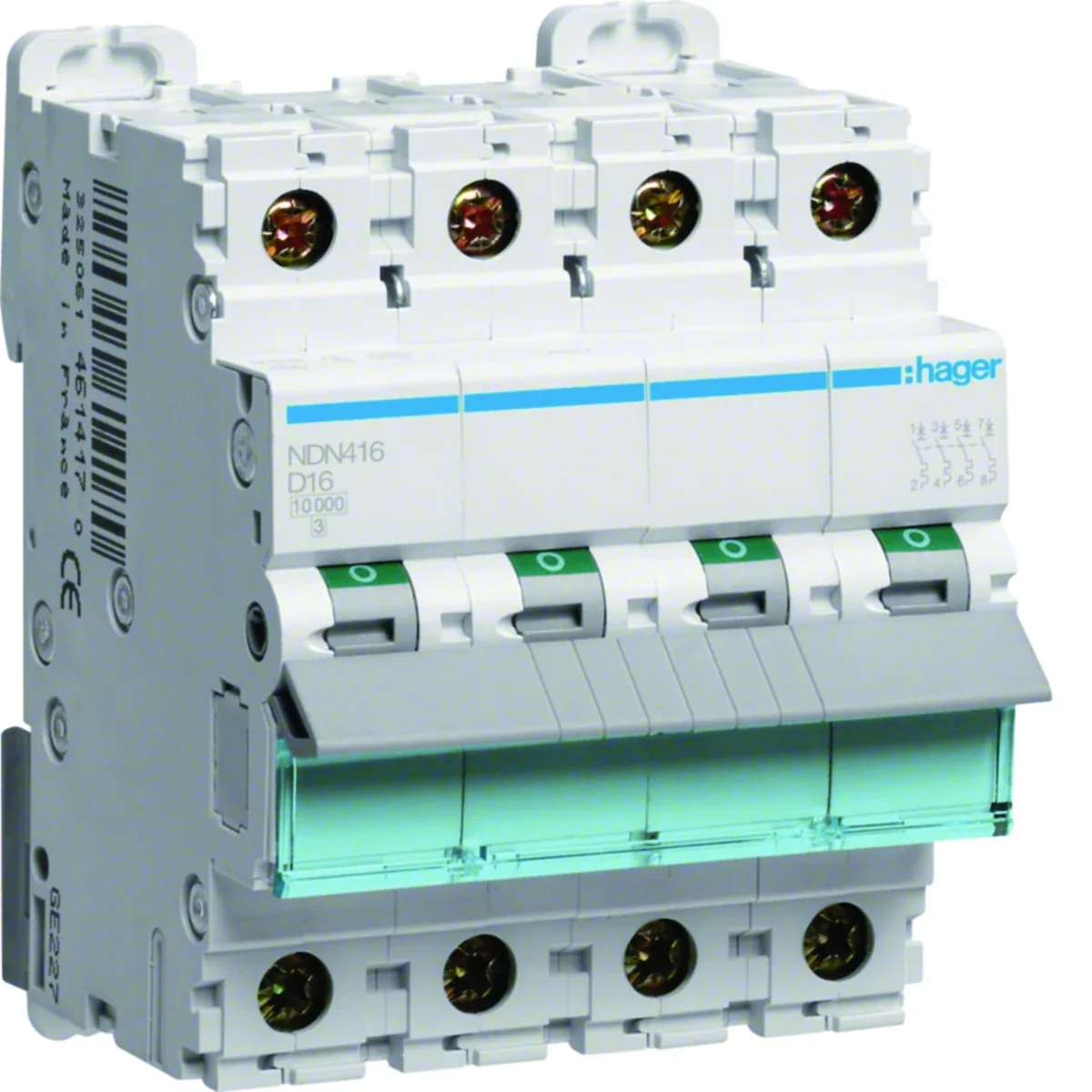

MCB Circuit Breaker 10kA 4 Pole 16A Characteristic D NDN416

local index:
ABD052HAGE
Catalog No:
NDN416
EAN code:
3250614611919
Manufacturer: HAGER
Characteristic: d
Depth [mm]: 70
Number of poles: 4
Price:
80,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

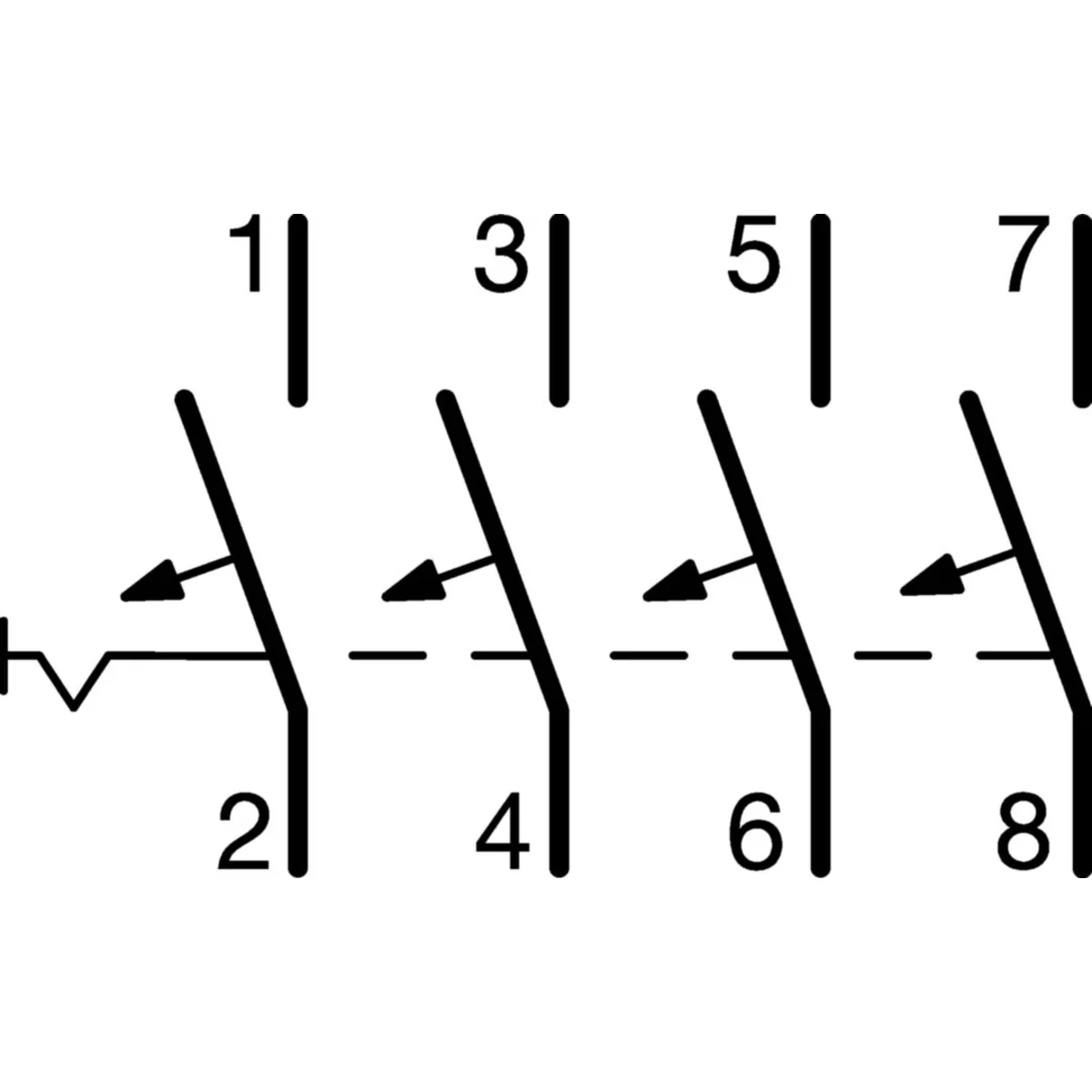

Product description

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Technical data

  • Characteristic
    d
  • Number of poles
    4
  • Rated insulation voltage [V]
    500
  • Family
    MCB
  • Power dissipation [W]
    3.5
  • Power loss per pole [W]
    2.79
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    20000
  • Rated short-circuit breaking capacity [kA]
    10
  • Short-circuit breaking capacity [kA]
    10
  • Maximum operating voltage [V]
    440
  • Input terminal capacity (cord) [mm²]
    1/25
  • Output terminal capacity (cord) [mm²]
    1/25
  • Ultimate short-circuit breaking capacity Icu for 230V [kA]
    thirty
  • Ultimate short-circuit breaking capacity Icu for 400V [kA]
    15
  • Rated current at 30°C [A]
    16
  • Rated current at 45°C [A]
    14.38
  • Rated current at 55°C [A]
    13.19
  • Rated current at 65°C [A]
    11.89
  • storage temperature [°C]
    from -25 to 80
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    6000
  • PKWIU
    27.12.22.0
  • Depth [mm]
    70
  • Tightening torque [Nm]
    2.8
  • Rated current [A]
    16
  • Level of security
    IP20
  • power loss [W]
    11.08
  • Width [mm]
    70
  • Electrical endurance (number of cycles)
    4000
  • Operating temperature range [°C]
    from -25 to 60
  • Rated switching voltage [V]
    415
  • Number of modules
    4
  • Max/min value of the AC current of the protection activation
    10/14.4 in
  • Input terminal capacitance (wire) [mm²]
    1/35
  • Output terminal capacitance (wire) [mm²]
    1/35
  • Ultimate short-circuit breaking capacity Icu for 240V [kA]
    thirty
  • Rated current at 20°C [A]
    16.86
  • Rated current at 40°C [A]
    14.94
  • Rated current at 50°C [A]
    13.8
  • Rated current at 60°C [A]
    12.56
  • Rated current at 70°C [A]
    11.18
  • Supply voltage type
    AC
  • Rated current correction factor for 3 devices installed side by side
    0.95
  • Number of protected poles
    4

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    4
  • Rated current
    16 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
  • Release characteristic
    D
  • Number of protected poles
    4
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    30 kA
  • Frequency
    50 ... 60 Hz
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,433 1,327 16,355 415,520
Width (m) 0,070 0,097 0,318 0,800
Length (m) 0,087 0,082 0,234 1,086
Depth (m) 0,073 0,226 0,366 1,200
