MCB Circuit Breaker 10kA 4 Pole 13A Characteristic B NBN413

Name: MCB Circuit Breaker 10kA 4 Pole 13A Characteristic B
Brand: HAGER
SKU: ABB062HAGE
Price: 59.06 PLN

Lokaler Index:

ABB062HAGE

Katalognummer:

NBN413

EAN-Code:

3250614614163

MCB Circuit Breaker 10kA 4 Pole 13A Characteristic B

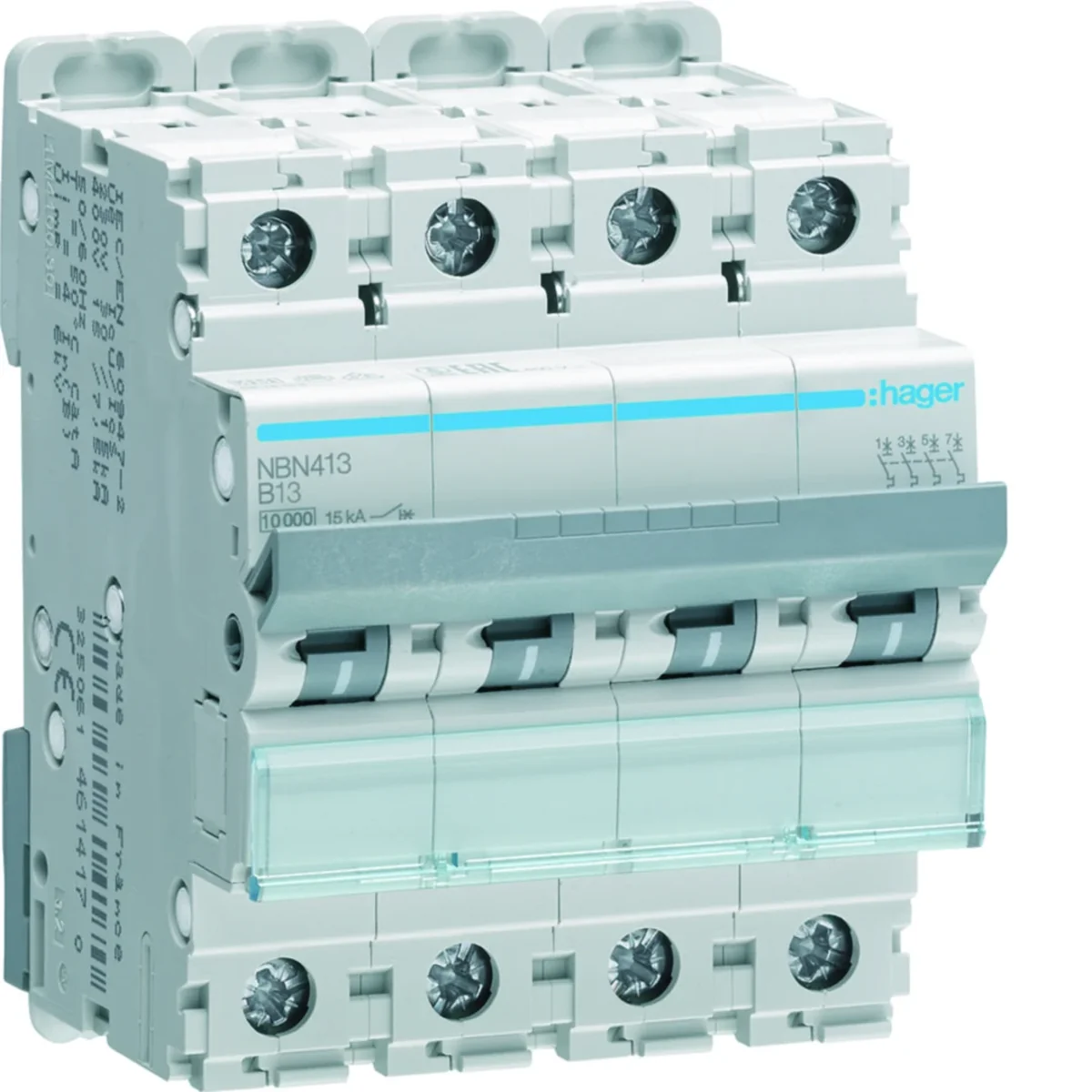

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Characteristic: b

Rated frequency [Hz]: 60

Depth [mm]: 70

Siehe vollständige Beschreibung

Preis:

59,06 €

gross / stk.

(inklusive MwSt 23%)

Lieferung in 3h

bis zu 10 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

1

)

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Großpackungen

Produktbeschreibung

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Technische Daten

Characteristic

b
Depth [mm]

70
Tightening torque [Nm]

2.8
Rated current [A]

13
Level of security

IP20
power loss [W]

8.9
Width [mm]

70
Height [mm]

83
Mechanical durability (number of cycles)

20000
Rated switching voltage [V]

400
Max/min value of the AC current of the protection activation

3/5 In
Input terminal capacitance (wire) [mm²]

1/35
Output terminal capacitance (wire) [mm²]

1/35
Rated current at 20°C [A]

13.58
Rated current at 40°C [A]

12.3
Rated current at 50°C [A]

11.56
Rated current at 60°C [A]

10.77
Rated current at 70°C [A]

9.92
Supply voltage type

AC
Rated current correction factor for 3 devices installed side by side

0.95
Number of protected poles

4

Rated frequency [Hz]

60
Number of poles

4
Rated insulation voltage [V]

500
Family

MCB
Power dissipation [W]

3.5
Power loss per pole [W]

2.27
Connection type

With a screw
Electrical endurance (number of cycles)

4000
Operating temperature range [°C]

from -25 to 60
Number of modules

4
Input terminal capacity (cord) [mm²]

1/25
Output terminal capacity (cord) [mm²]

1/25
Ultimate short-circuit breaking capacity per pole for 400V [kA]

3
Rated current at 30°C [A]

13
Rated current at 45°C [A]

11.94
Rated current at 55°C [A]

11.18
Rated current at 65°C [A]

10.36
storage temperature [°C]

from -25 to 80
Rated current correction factor for 2 devices installed side by side

1
Rated surge voltage [V]

6000
PKWIU

27.12.22.0

Weitere technische Daten

Built-in depth

70 mm
Number of poles (total)

4
Rated current

13 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

4
Rated voltage

400 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

30 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Großpackungen

Eine Art Paket		Karton	Pakiet	Paleta
Menge	1 stk.	3 stk.	36 stk.	864 stk.
Gewicht (kg)	0,414	1,346	5,384	10,768
Breite (m)	0,070	0,097	0,315	0,800
Länge (m)	0,087	0,082	0,239	1,150
Tiefe (m)	0,073	0,226	0,365	1,200
