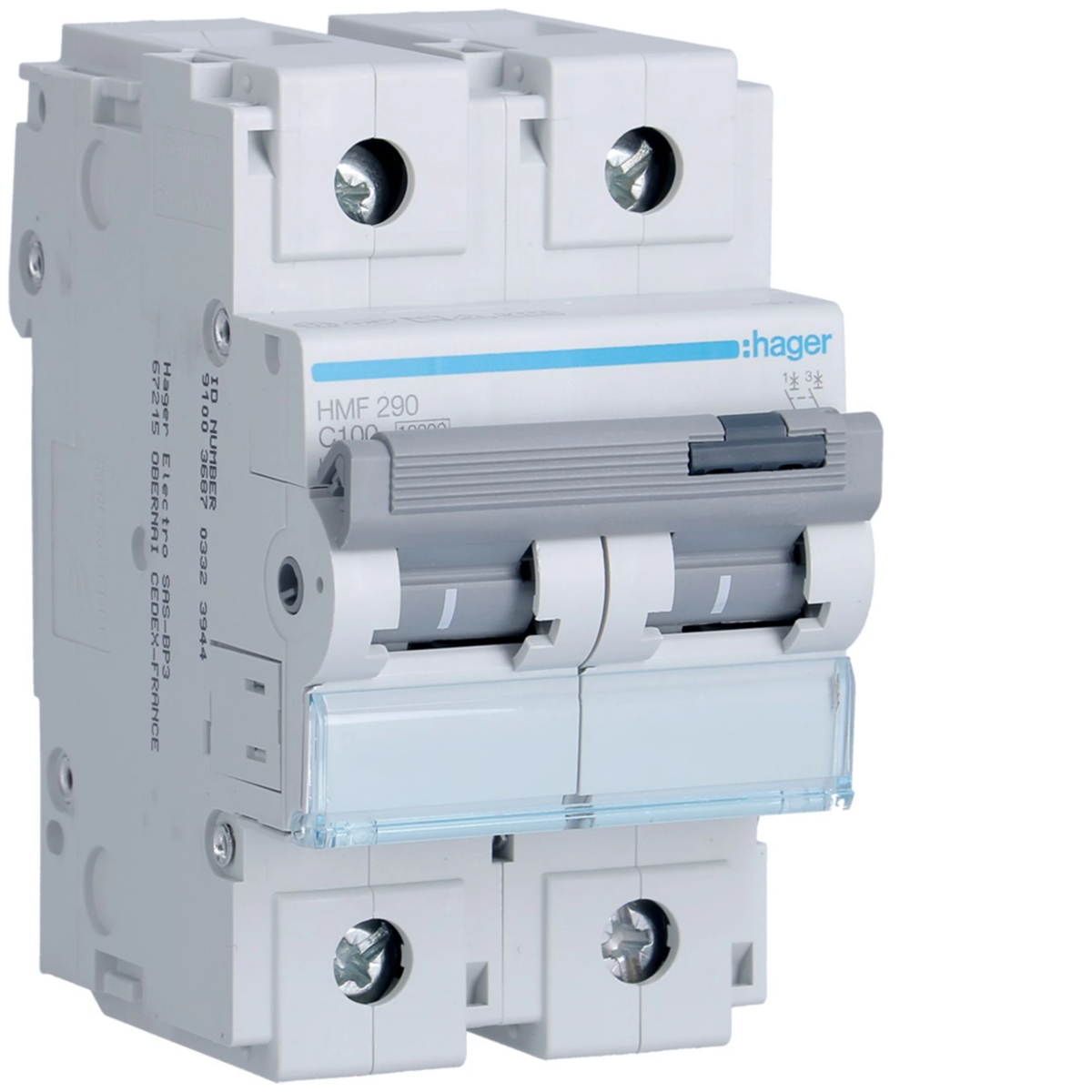

MCB Circuit breaker 10kA 2P C 100A HMF290

Indeks lokalny:

ABC042HAGE

Nr katalogowy:

HMF290

Kod EAN:

3250613231019

MCB Circuit breaker 10kA 2P C 100A

MCB Circuit breaker 10kA 2P C 100A

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Characteristic: c

Rated frequency [Hz]: 60

Depth [mm]: 70

Zobacz cały opis

Cena:

143,64 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 10 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

1

)

Dodaj do schowka

Dodaj do schowka

Drukuj

Zapytaj o produkt

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between a line conductor and an accessible conductive part or a protective conductor.

Dane techniczne

Characteristic

c
Depth [mm]

70
Tightening torque [Nm]

3.5 to 5
Rated current [A]

100
Level of security

IP20
power loss [W]

16.33
Width [mm]

53
Height [mm]

90
Mechanical durability (number of cycles)

20000
Rated switching voltage [V]

415
Number of modules

3
Ultimate short-circuit breaking capacity Icu for 230V [kA]

10
Ultimate short-circuit breaking capacity Icu for 400V [kA]

10
Ultimate short-circuit breaking capacity per pole for 400V [kA]

4.5
Rated current at 30°C [A]

100
Rated current at 45°C [A]

89.4
Rated current at 55°C [A]

81.6
Service short-circuit breaking capacity Ics [%]

75
storage temperature [°C]

from -25 to 80
Rated current correction factor for 2 devices installed side by side

1
Rated surge voltage [V]

6000
Wire cross-section (cord) [mm²]

35
PKWIU

27.12.22.0

Rated frequency [Hz]

60
Number of poles

2
Rated insulation voltage [V]

500
Family

MCB
Power dissipation [W]

15
Power loss per pole [W]

9.12
Connection type

Clamps with alignment system
Electrical endurance (number of cycles)

4000
Operating temperature range [°C]

from -5 to 60
Rated short-circuit breaking capacity Icn [kA]

10
Max/min value of the AC current of the protection activation

5/10 In
Ultimate short-circuit breaking capacity Icu for 240V [kA]

10
Ultimate short-circuit breaking capacity Icu for 415V [kA]

10
Rated current at 20°C [A]

108
Rated current at 40°C [A]

93.1
Rated current at 50°C [A]

85.6
Rated current at 60°C [A]

77.5
Operating short-circuit breaking current Ics [kA]

7.5
Supply voltage type

AC
Rated current correction factor for 3 devices installed side by side

0.95
Number of protected poles

2
Conductor cross-section (wire) [mm²]

70

Pozostałe dane techniczne

Built-in depth

70 mm
Number of poles (total)

2
Rated current

100 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Concurrently switching neutral conductor

No
Pollution degree

3
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 70 mm²

Release characteristic

C
Number of protected poles

2
Rated voltage

415 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Frequency

50 ... 60 Hz
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 50 mm²

Dane producenta

Producent

HAGER POLO Sp. z o. o.
Adres

43-100 Tychy Fabryczna 10
NIP

6460015532

Opakowania zbiorcze

Rodzaj opakowania	Karton	Pakiet	Paleta
Ilość	1 szt.	24 szt.	1008 szt.
Waga (kg)	0,470	11,460	504,320
Szerokość (m)	0,080	0,310	0,800
Długość (m)	0,060	0,120	1,050
Głębokość (m)	0,095	0,365	1,200
