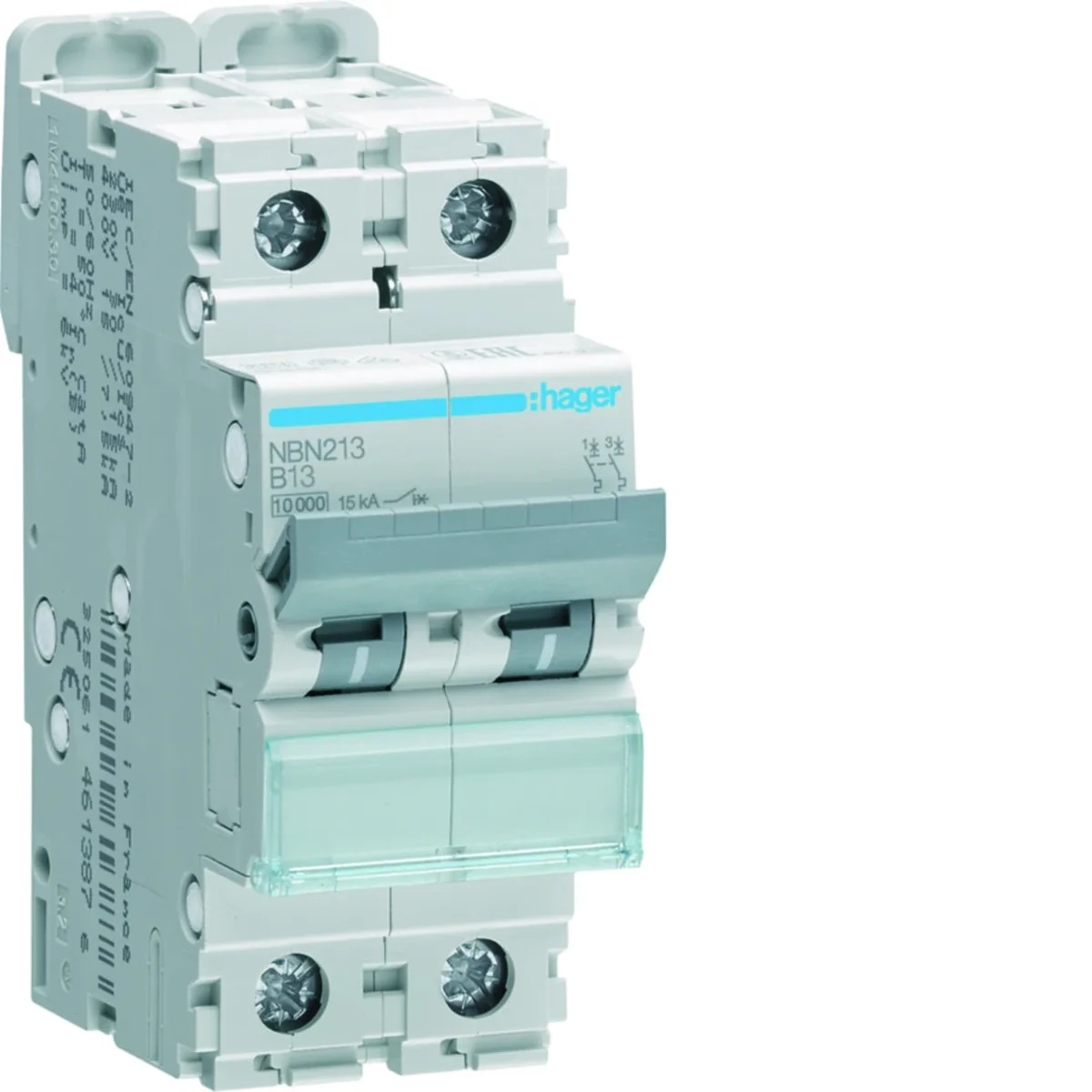

MCB Circuit Breaker 10kA 2 Pole 13A Characteristic B NBN213
local index:
ABB046HAGE
Catalog No:
NBN213
EAN code:
3250614613869
Price:
31,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between a line conductor and an accessible conductive part or a protective conductor.
Technical data
-
Characteristicb
-
Depth [mm]70
-
Tightening torque [Nm]2.8
-
Rated current [A]13
-
Level of securityIP20
-
power loss [W]4.58
-
Width [mm]35
-
Height [mm]83
-
Mechanical durability (number of cycles)20000
-
Rated switching voltage [V]400
-
Max/min value of the AC current of the protection activation3/5 In
-
Input terminal capacitance (wire) [mm²]1/35
-
Output terminal capacitance (wire) [mm²]1/35
-
Rated current at 20°C [A]13.75
-
Rated current at 40°C [A]12.2
-
Rated current at 50°C [A]11.35
-
Rated current at 60°C [A]10.42
-
Rated current at 70°C [A]9.41
-
Supply voltage typeAC
-
Rated current correction factor for 3 devices installed side by side0.95
-
Number of protected poles2
-
Rated frequency [Hz]60
-
Number of poles2
-
Rated insulation voltage [V]500
-
FamilyMCB
-
Power dissipation [W]3.5
-
Power loss per pole [W]2.3
-
Connection typeWith a screw
-
Electrical endurance (number of cycles)4000
-
Operating temperature range [°C]from -25 to 60
-
Number of modules2
-
Input terminal capacity (cord) [mm²]1/25
-
Output terminal capacity (cord) [mm²]1/25
-
Ultimate short-circuit breaking capacity per pole for 400V [kA]3
-
Rated current at 30°C [A]13
-
Rated current at 45°C [A]11.78
-
Rated current at 55°C [A]10.9
-
Rated current at 65°C [A]9.93
-
storage temperature [°C]from -25 to 80
-
Rated current correction factor for 2 devices installed side by side1
-
Rated surge voltage [V]6000
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)2
-
Rated current13 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
-
Current limiting class3
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicB
-
Number of protected poles2
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp6 kV
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30 kA
-
Frequency50 ... 60 Hz
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 6 pcs. | 72 pcs. | 1728 pcs. |
| Weight (kg) | 0,208 | 1,340 | 16,475 | 418,400 |
| Width (m) | 0,035 | 0,100 | 0,320 | 0,800 |
| Length (m) | 0,087 | 0,080 | 0,235 | 1,150 |
| Depth (m) | 0,073 | 0,230 | 0,365 | 1,200 |
