MCB Circuit breaker 10kA 1+N 16A characteristic C NCN516

Name: MCB Circuit breaker 10kA 1+N 16A characteristic C
Brand: HAGER
SKU: ABC095HAGE
Price: 129.13 PLN

Místní index:

ABC095HAGE

Katalogové číslo.:

NCN516

EAN kód:

3250614615221

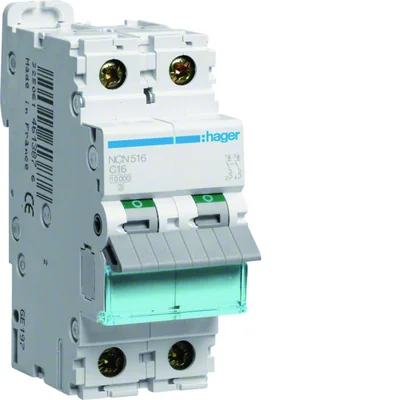

MCB Circuit breaker 10kA 1+N 16A characteristic C

Kliknutím na obrázek jej zvětšíte

Výrobce: HAGER

Characteristic: c

Depth [mm]: 70

Number of poles: 2

Zobrazit celý popis

Cena:

129,13 zł

gross / kusů.

(včetně DPH 23%)

Dodání do 3 hodin

do 10 týdnů (pracovní dny)

Vyzvednutí za 1h

Množství kusů.

(vícenásobné:

1

)

Přidat do žádosti o cenovou nabídku

Přidat do schránky

Vytisknout

Dotaz na výrobek

Popis produktu Technické údaje Podrobnosti o výrobci Velkoobjemová balení Soubory ke stažení

Popis produktu

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between the line conductor and the accessible conductive part or the protective conductor.

Technické údaje

Characteristic

c
Number of poles

2
Rated insulation voltage [V]

500
Family

MCB
Power dissipation [W]

3.5
Power loss per pole [W]

2.7
Height [mm]

83
Mechanical durability (number of cycles)

20000
Rated switching voltage [V]

240
Number of modules

2
Max/min value of the AC current of the protection activation

5/10 In
Input terminal capacitance (wire) [mm²]

1/35
Output terminal capacitance (wire) [mm²]

1/35
Ultimate short-circuit breaking capacity Icu for 240V [kA]

15
Rated current at 30°C [A]

16
Rated current at 45°C [A]

14.54
Rated current at 55°C [A]

13.48
Rated current at 65°C [A]

12.32
storage temperature [°C]

from -25 to 80
Rated current correction factor for 2 devices installed side by side

1
Rated surge voltage [V]

6000
PKWIU

27.12.22.0

Depth [mm]

70
Tightening torque [Nm]

2.8
Rated current [A]

16
Level of security

IP20
power loss [W]

5.34
Width [mm]

35
Electrical endurance (number of cycles)

4000
Operating temperature range [°C]

from -25 to 60
Short-circuit breaking capacity [kA]

10
Maximum operating voltage [V]

253
Input terminal capacity (cord) [mm²]

1/25
Output terminal capacity (cord) [mm²]

1/25
Ultimate short-circuit breaking capacity Icu for 230V [kA]

15
Rated current at 20°C [A]

16.9
Rated current at 40°C [A]

15.04
Rated current at 50°C [A]

14.02
Rated current at 60°C [A]

12.91
Rated current at 70°C [A]

11.7
Supply voltage type

AC
Rated current correction factor for 3 devices installed side by side

0.95
Number of protected poles

1

Další technické údaje

Built-in depth

70 mm
Number of poles (total)

2
Rated current

16 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

C
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

6 kV
Voltage type

AC
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

Yes
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Podrobnosti o výrobci

Výrobce

Hager Electro S.A.S.
Adresa

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Velkoobjemová balení

Typ obalu	Karton	Pakiet	Paleta
Množství	6 kusů.	72 kusů.	1728 kusů.
Hmotnost (kg)	1,240	14,970	359,420
Šířka (m)	0,090	0,310	0,800
Délka (m)	0,080	0,230	1,070
Hloubka (m)	0,220	0,370	1,200

Soubory ke stažení

DECLARATION_24_3594_09_24.pdf

rohs_declaration_NCN5164.pdf

NCN516.pdf
