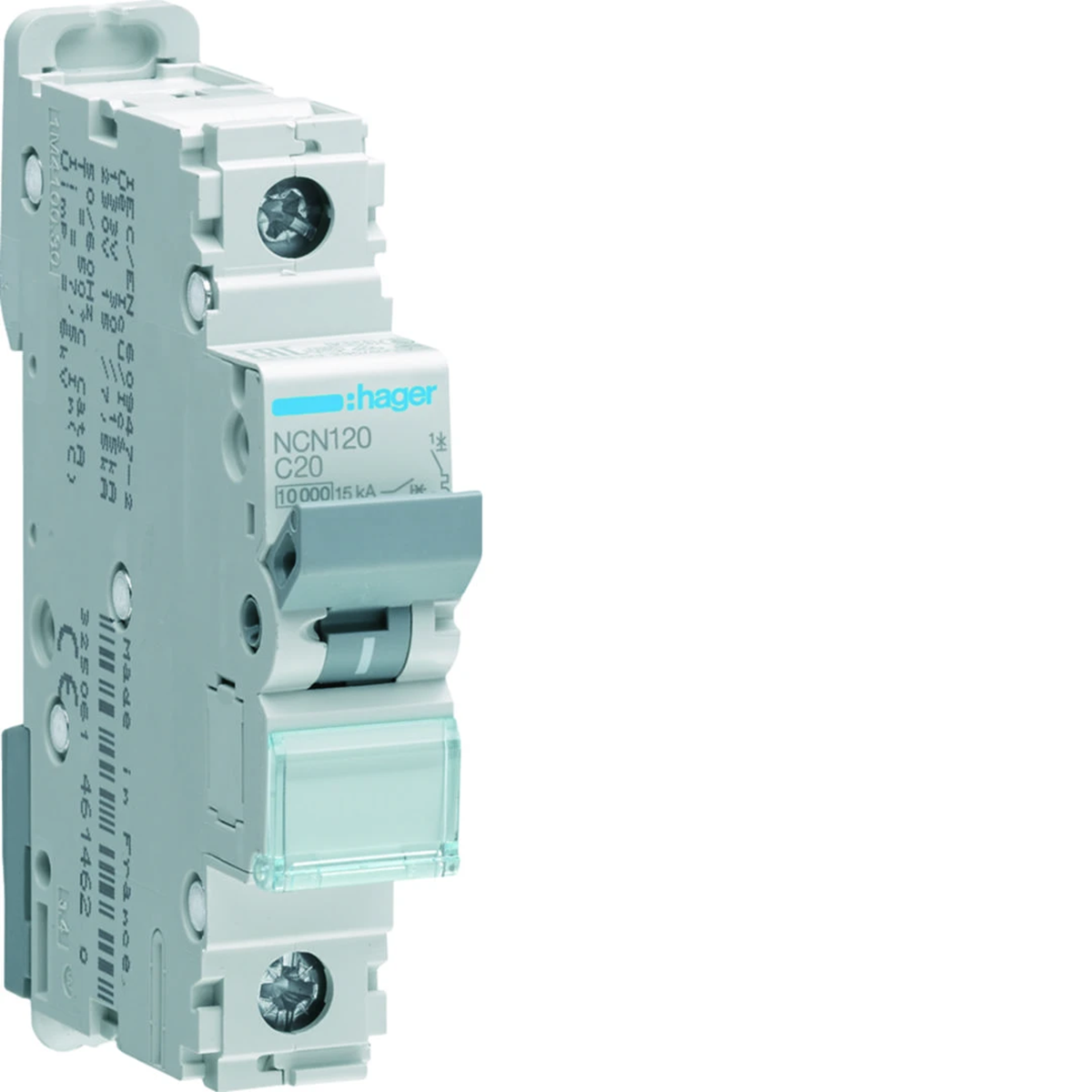

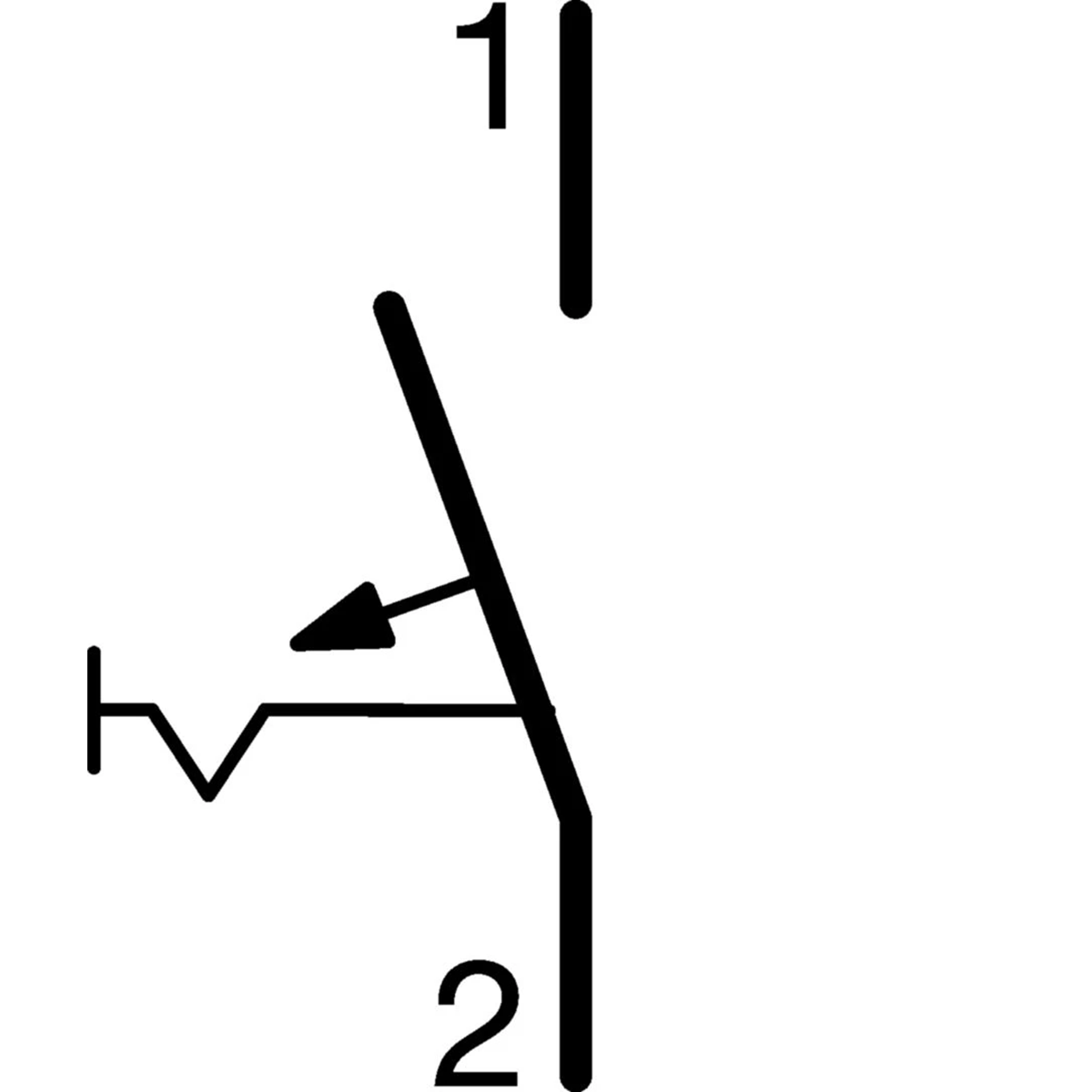

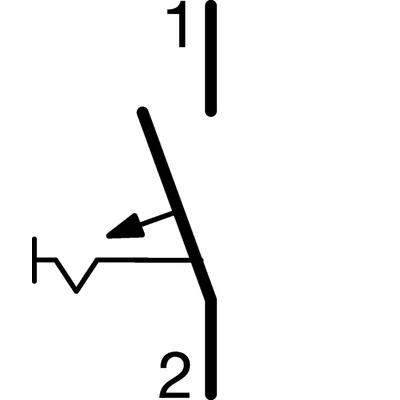

MCB Circuit Breaker 10kA 1 Pole 20A Characteristic C NCN120

Indice locale:
ABC103HAGE
Numero di catalogo:
NCN120
Codice EAN:
3250614614637
Produttore: HAGER
Characteristic: c
Depth [mm]: 70
Number of poles: 1
Prezzo:
13,71 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 10 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

MCB circuit breaker to protect the electrical installation against the effects of short circuits and overloads. It can also be used as a means of protection against electric shock - automatic shutdown in the event of a short-circuit with negligible impedance between a line conductor and an accessible conductive part or a protective conductor.

Dati tecnici

  • Characteristic
    c
  • Number of poles
    1
  • Rated insulation voltage [V]
    500
  • Family
    MCB
  • Power dissipation [W]
    4.5
  • Power loss per pole [W]
    2.56
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    20000
  • Rated switching voltage [V]
    240/415
  • Number of modules
    1
  • Max/min value of the AC current of the protection activation
    5/10 In
  • Input terminal capacitance (wire) [mm²]
    1/35
  • Output terminal capacitance (wire) [mm²]
    1/35
  • Ultimate short-circuit breaking capacity Icu for 240V [kA]
    15
  • Rated current at 30°C [A]
    20
  • Rated current at 45°C [A]
    18.37
  • Rated current at 55°C [A]
    17.2
  • Rated current at 65°C [A]
    15.94
  • storage temperature [°C]
    from -25 to 80
  • Rated current correction factor for 2 devices installed side by side
    1
  • Rated surge voltage [V]
    6000
  • PKWIU
    27.12.22.0
  • Depth [mm]
    70
  • Tightening torque [Nm]
    2.8
  • Rated current [A]
    20
  • Level of security
    IP20
  • power loss [W]
    2.56
  • Width [mm]
    17.5
  • Electrical endurance (number of cycles)
    4000
  • Operating temperature range [°C]
    from -25 to 60
  • Short-circuit breaking capacity [kA]
    10
  • Maximum operating voltage [V]
    440
  • Input terminal capacity (cord) [mm²]
    1/25
  • Output terminal capacity (cord) [mm²]
    1/25
  • Ultimate short-circuit breaking capacity Icu for 230V [kA]
    15
  • Rated current at 20°C [A]
    21.02
  • Rated current at 40°C [A]
    18.93
  • Rated current at 50°C [A]
    17.8
  • Rated current at 60°C [A]
    16.58
  • Rated current at 70°C [A]
    15.28
  • Supply voltage type
    AC
  • Rated current correction factor for 3 devices installed side by side
    0.95
  • Number of protected poles
    1

Altri dati tecnici

  • Built-in depth
    70 mm
  • Number of poles (total)
    1
  • Rated current
    20 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Voltage type
    AC
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Imballaggio sfuso

Una specie di pacchetto Karton Pakiet Paleta
Quantità 1 pezzi 12 pezzi 144 pezzi 3456 pezzi
Peso (kg) 0,108 1,391 17,058 432,392
Larghezza (m) 0,018 0,097 0,316 0,800
Lunghezza (m) 0,087 0,082 0,234 1,086
Profondità (m) 0,074 0,227 0,366 1,200
