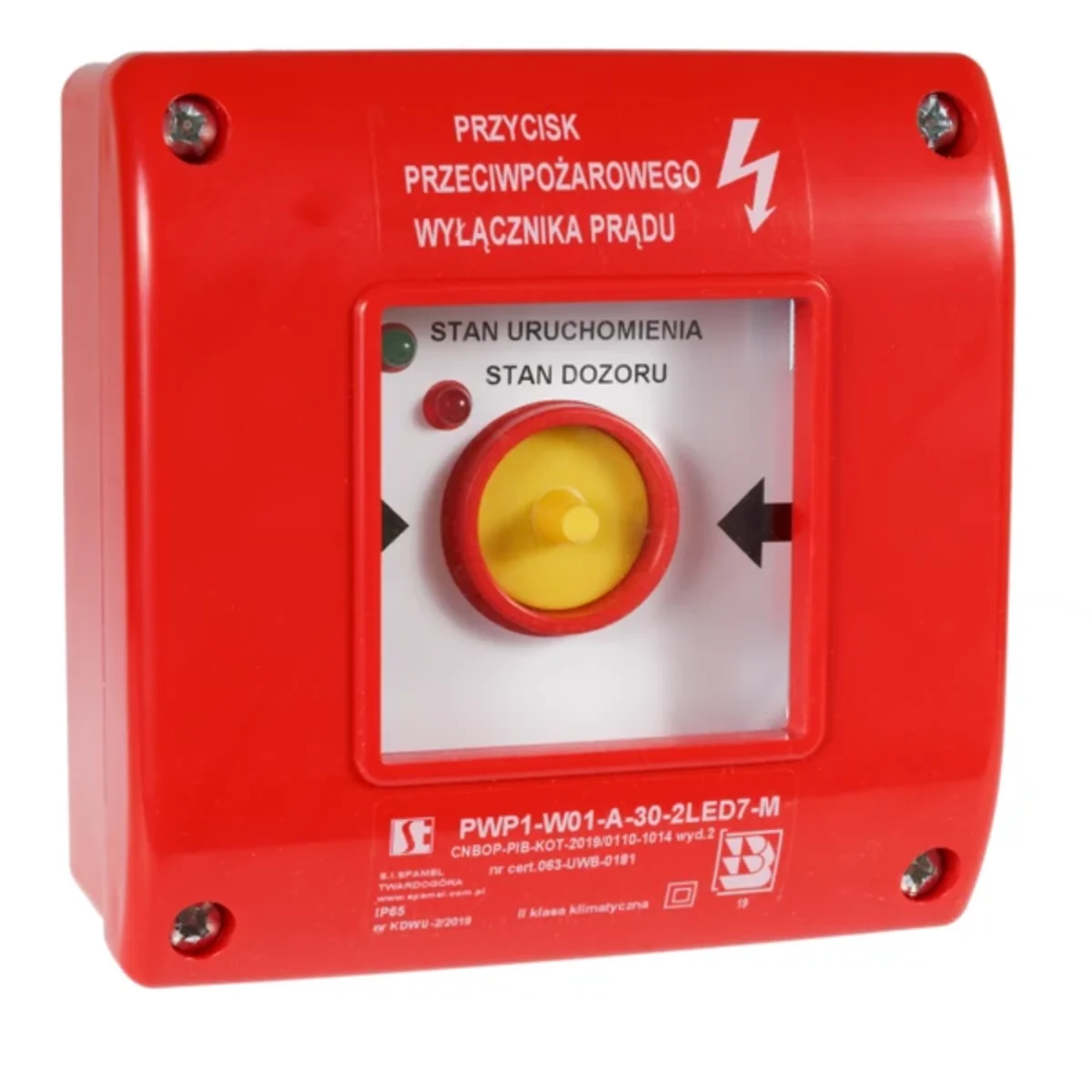

Manual button of the PWP1 fire protection switch PWP1-W01-A-11-2LED7\.

local index:
AKS246SPAM
Catalog No:
PWP1-W01-A-11-2LED7\.
EAN code:
5907723227385
Manufacturer: SPAMEL
Color: Red
Rated insulation voltage [V]: 500
Continuous rated current [A]: 10
Price:
41,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 57 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The manual button is designed to activate the ”Fire protection switch”, which will disconnect the building's power supply from the electricity source during a fire during a rescue operation. Fire protection switch, cuts off the power supply to all circuits, with the exception of circuits supplying the installation and equipment, the functioning of which is necessary during a fire, should be used in fire zones with a cubic capacity exceeding 1000 m3; or contain hazardous areas. The fire-fighting power switch should be placed near the main entrance to the facility or properly marked connector. Cutting off the power supply with the fire-fighting switch may not cause automatic switching on of the second source of electricity, including the generating set. The exceptions are power sources for electrical equipment that must function during a fire. The set includes a self-adhesive plate: “Fire protection switch”. The PWP1 manual push button can be used as a ”Fire protection switch” provided that a plate is placed above it: “Fire-fighting power switch”. The PWP1 manual start button with double LED signaling provides information about the position of the actuator contacts: 1. Green diode – interruption of power supply 2. Red LED – activation of the circuit breaker.

Technical data

  • Color
    Red
  • Continuous rated current [A]
    10
  • Rated insulation voltage [V]
    500
  • The degree of protection of the device
    IP65

Other technical data

  • Type of messaging
    Fire brigade alarm (red)

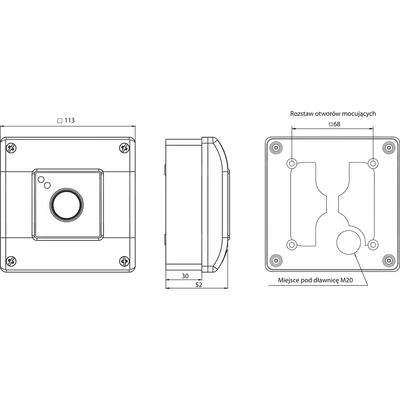

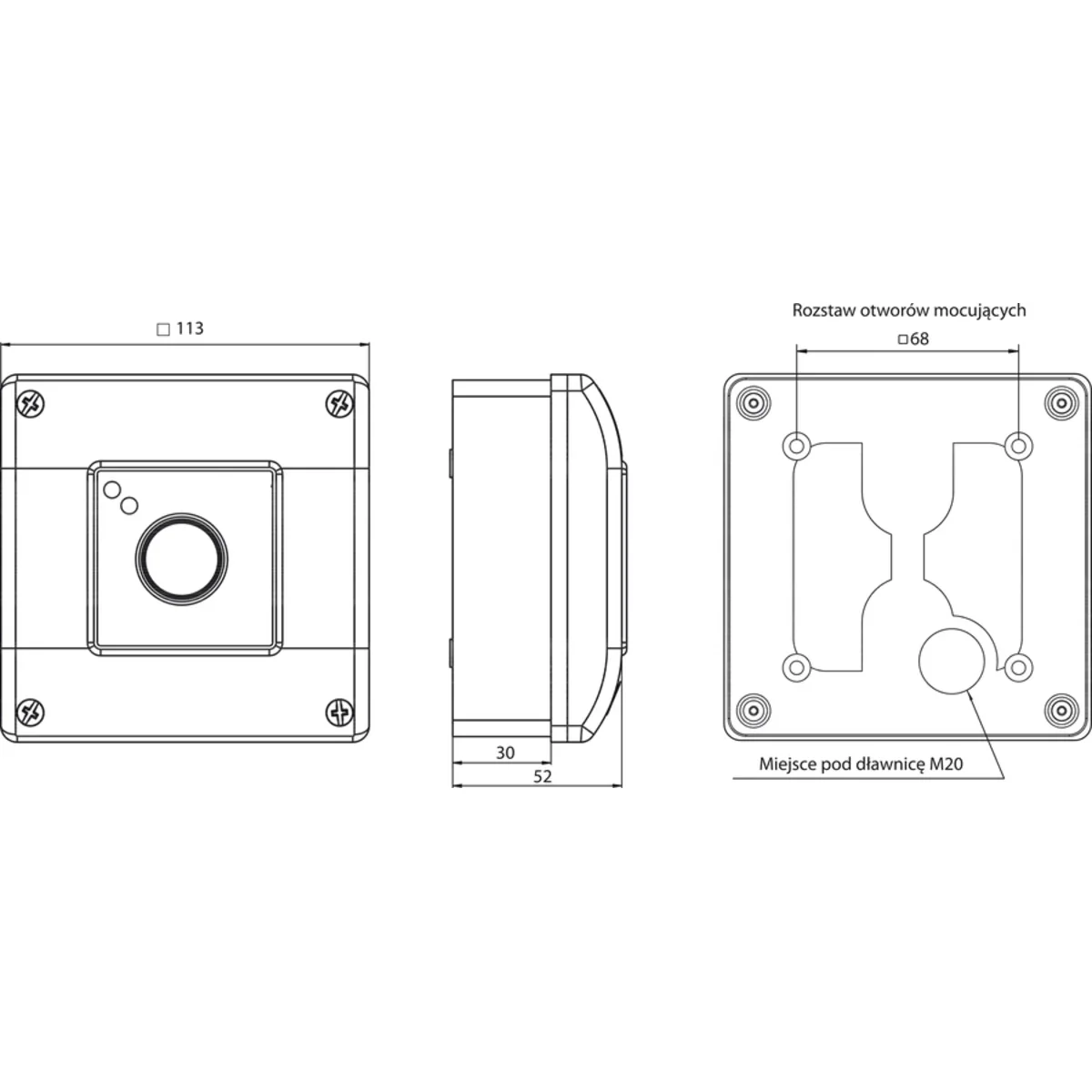

  • Width
    113 mm
  • Radio system
    No
  • With paper cover
    No
  • Material
    Plastic
  • Height
    113 mm
  • Depth
    52 mm
  • With glass disc
    Yes
  • Colour
    Red
  • Degree of protection (IP)
    IP65
