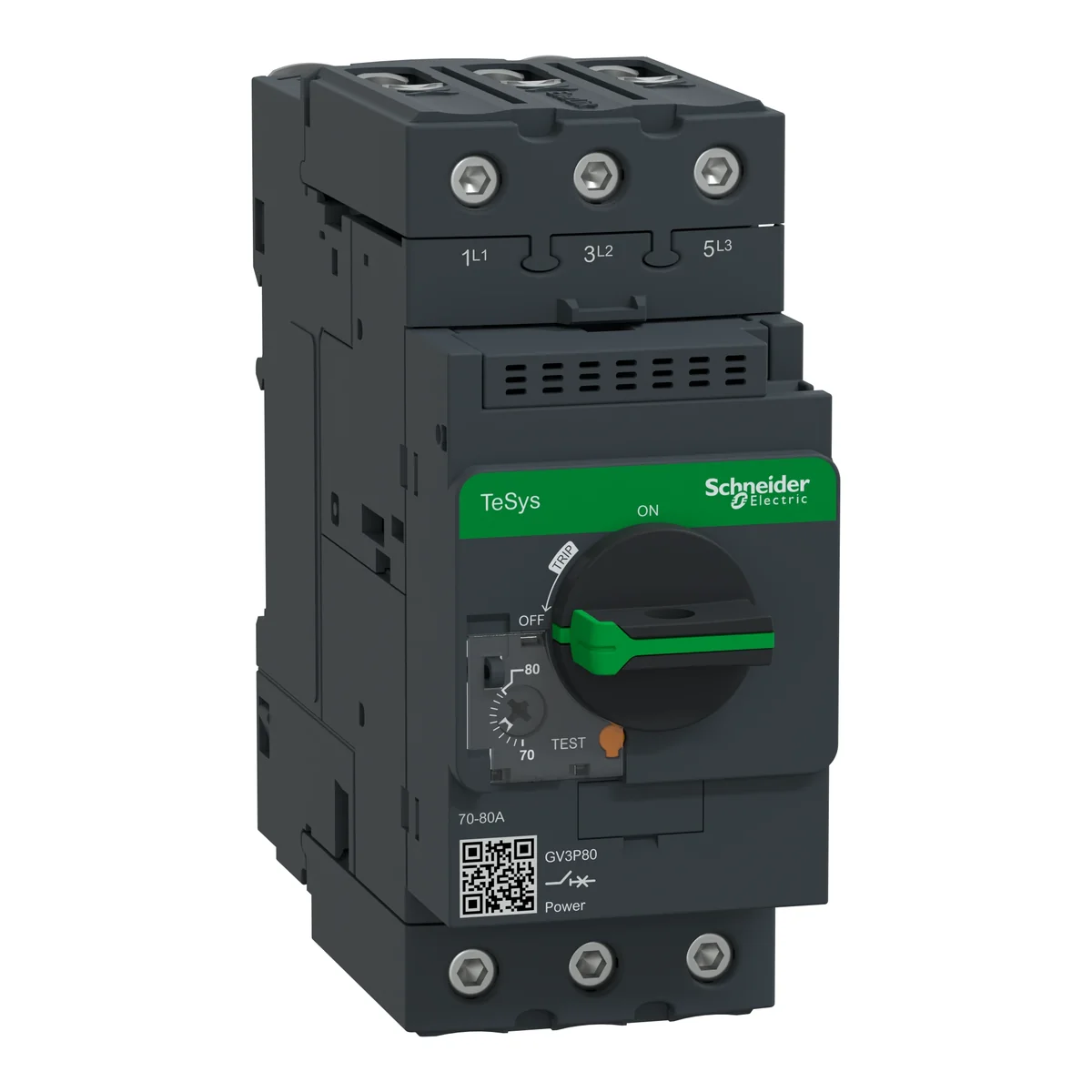

Magnetothermal motor circuit breaker TeSys GV3P rotary drive 70-80A everlink terminals GV3P80

local index:
ASN072SCHN
Catalog No:
GV3P80
EAN code:
3606481304568
Manufacturer: SCHNEIDER ELECTRIC
Level of security: IP20
Price:
316,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Magnetothermal motor circuit breaker TeSys GV3P rotary drive 70-80A everlink terminals

Technical data

  • Level of security
    IP20
  • PKWIU
    27.12.22.0

Other technical data

  • Overload release current setting
    70 ... 80 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    80 A
  • Rated operation power at AC-3, 400 V
    45 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    55 mm
  • Adjustment range undelayed short-circuit release
    1120 ... 1120 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    0 ... 690 V
  • Rated operation power at AC-3, 230 V
    22 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Height
    132 mm
  • Depth
    136 mm
