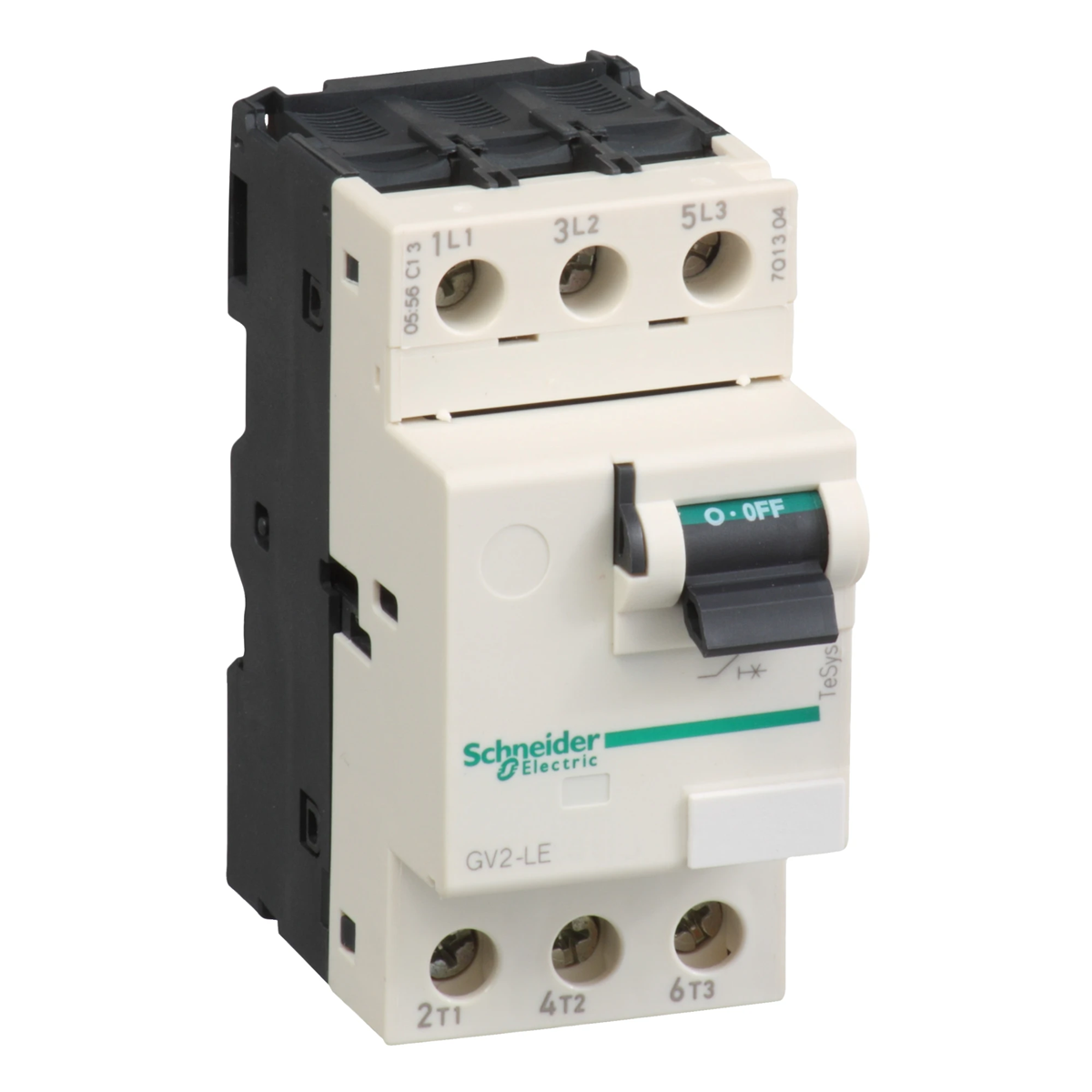

Magnetic motor switch GV2LE lever drive 18A GV2LE20

local index:
ASN061SCHN
Catalog No:
GV2LE20
EAN code:
3389110517019
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 89
Price:
69,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Magnetic motor switch GV2LE lever drive 18A

Technical data

  • Height [mm]
    89
  • PKWIU
    27.12.22.0

Other technical data

  • Adjustment range undelayed short-circuit release
    223 ... 223 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    0 ... 690 V
  • Rated operation power at AC-3, 230 V
    4 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    15 kA
  • Height
    89 mm
  • Depth
    78.5 mm
  • With thermal overload protection
    No
  • Switch off technique
    Magnetic
  • Rated permanent current Iu
    18 A
  • Rated operation power at AC-3, 400 V
    7.5 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
