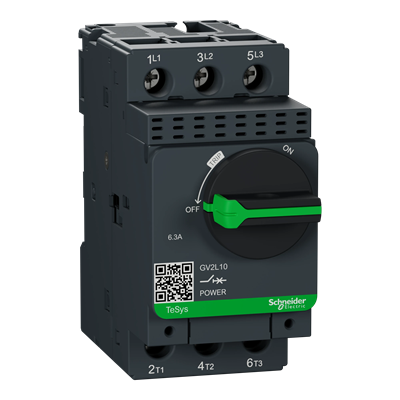

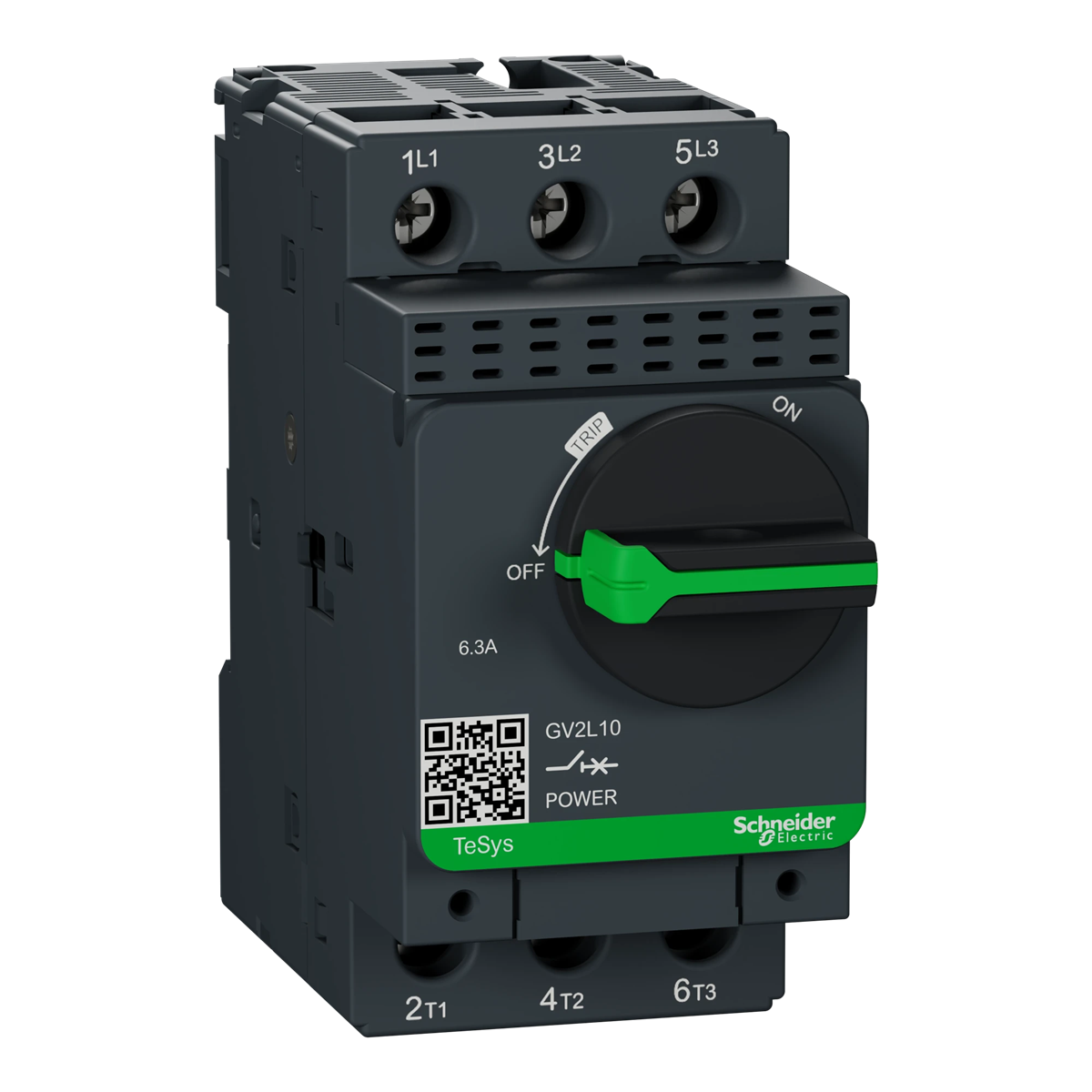

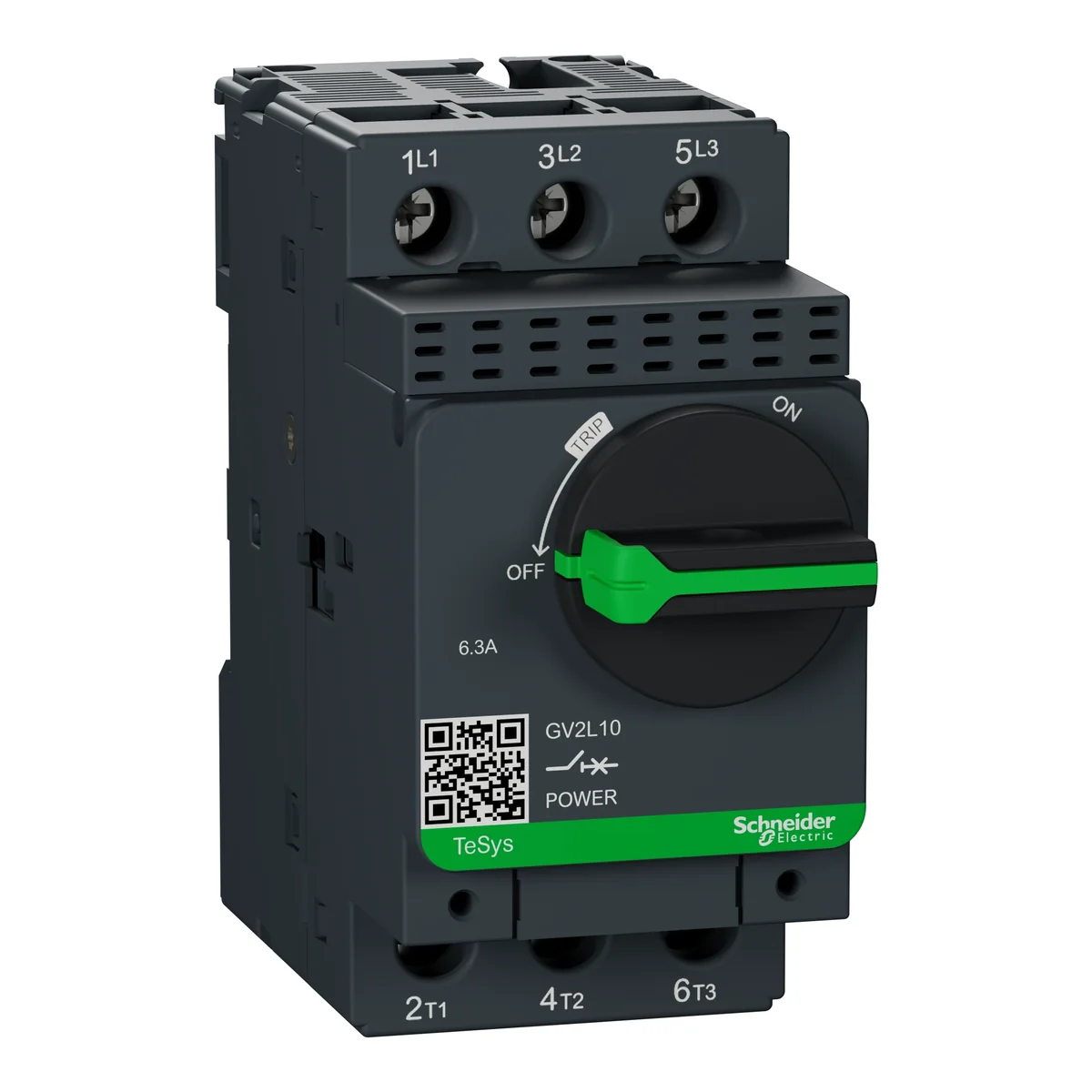

Magnetic motor switch GV2L rotary drive 6.3A GV2L10

Index local:
ASN063SCHN
Numéro de catalogue:
GV2L10
Code EAN:
3389110213263
Prix:
76,48 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

Magnetic motor switch GV2L rotary drive 6.3A

Données techniques

  • Height [mm]
    89
  • PKWIU
    27.12.22.0

Autres données techniques

  • Adjustment range undelayed short-circuit release
    6.3 ... 6.3 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    1.5 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Complete device in housing
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100 kA
  • Height
    89 mm
  • Depth
    97 mm
  • With thermal overload protection
    No
  • Switch off technique
    Magnetic
  • Rated permanent current Iu
    6.3 A
  • Rated operation power at AC-3, 400 V
    2.2 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm

Détails du fabricant

  • Producteur
    Schneider Electric Polska Sp. z o.o.
  • Adresse
    02-673 Warszawa ul. Konstruktorska 12
  • Numéro identifiant TVA
    5220011965
