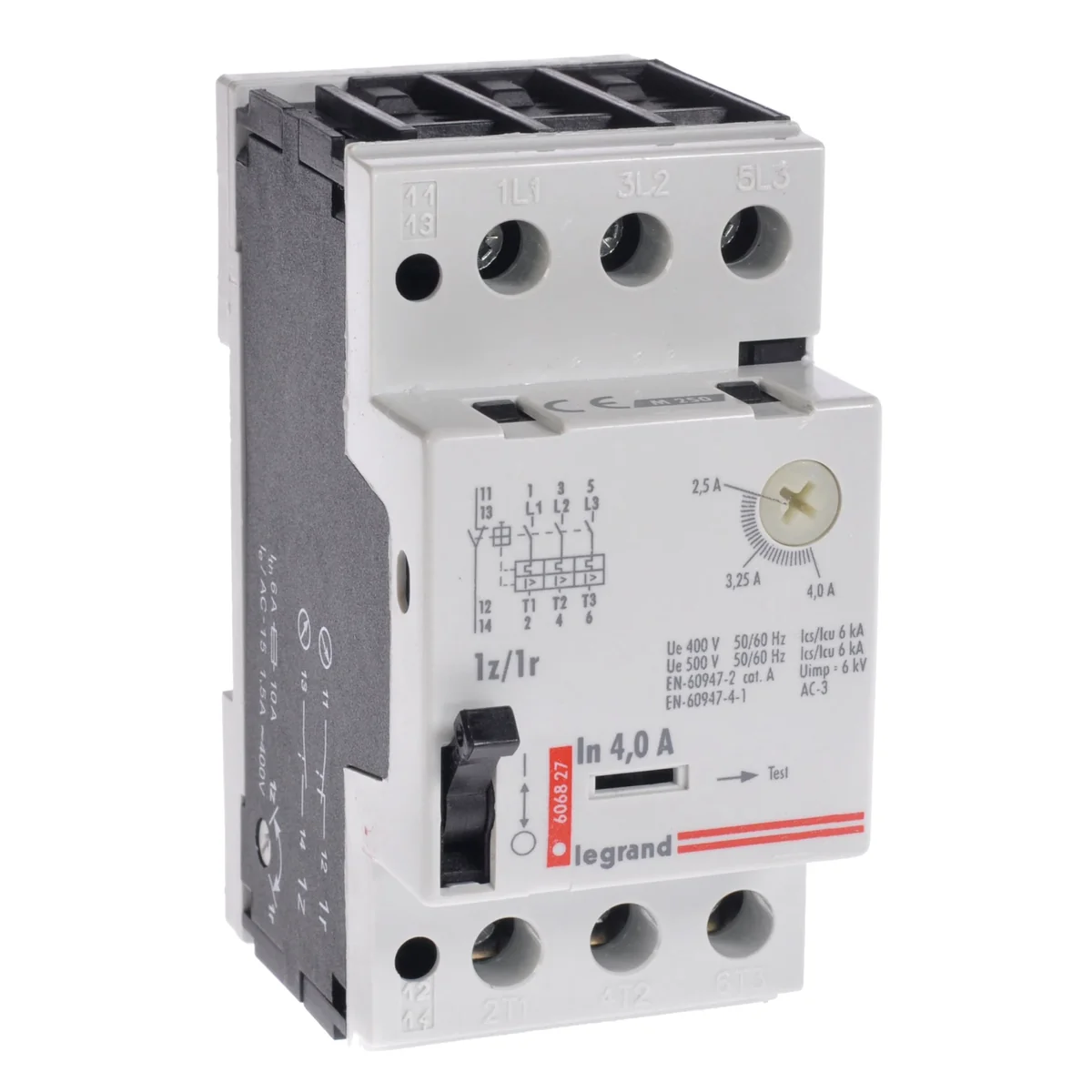

M250 1NO/1NC 4.0A power circuit breaker 606827

local index:
ASN030LEGR
Catalog No:
606827
Manufacturer: LEGRAND
Level of security: IP20
Price:
58,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Current range of thermal releases: 2.5 - 4 A
Opening current of electromagnetic releases (+/- 20%): 56 A
Width in 17.5 modules: 2.5

Technical data

  • Level of security
    IP20
  • PKWIU
    27.12.22.0

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    6 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    6 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    44 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of protected poles
    2
  • Rated insulation voltage Ui
    440 V
  • Rated current
    40 A
  • Leakage current type
    AC
  • Rated short-circuit breaking capacity according to EN 61009
    6 kA
  • Voltage type
    AC
  • Release characteristic
    C
  • With interlocking device
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    2
  • Do instalacji podtynkowych
    No
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
