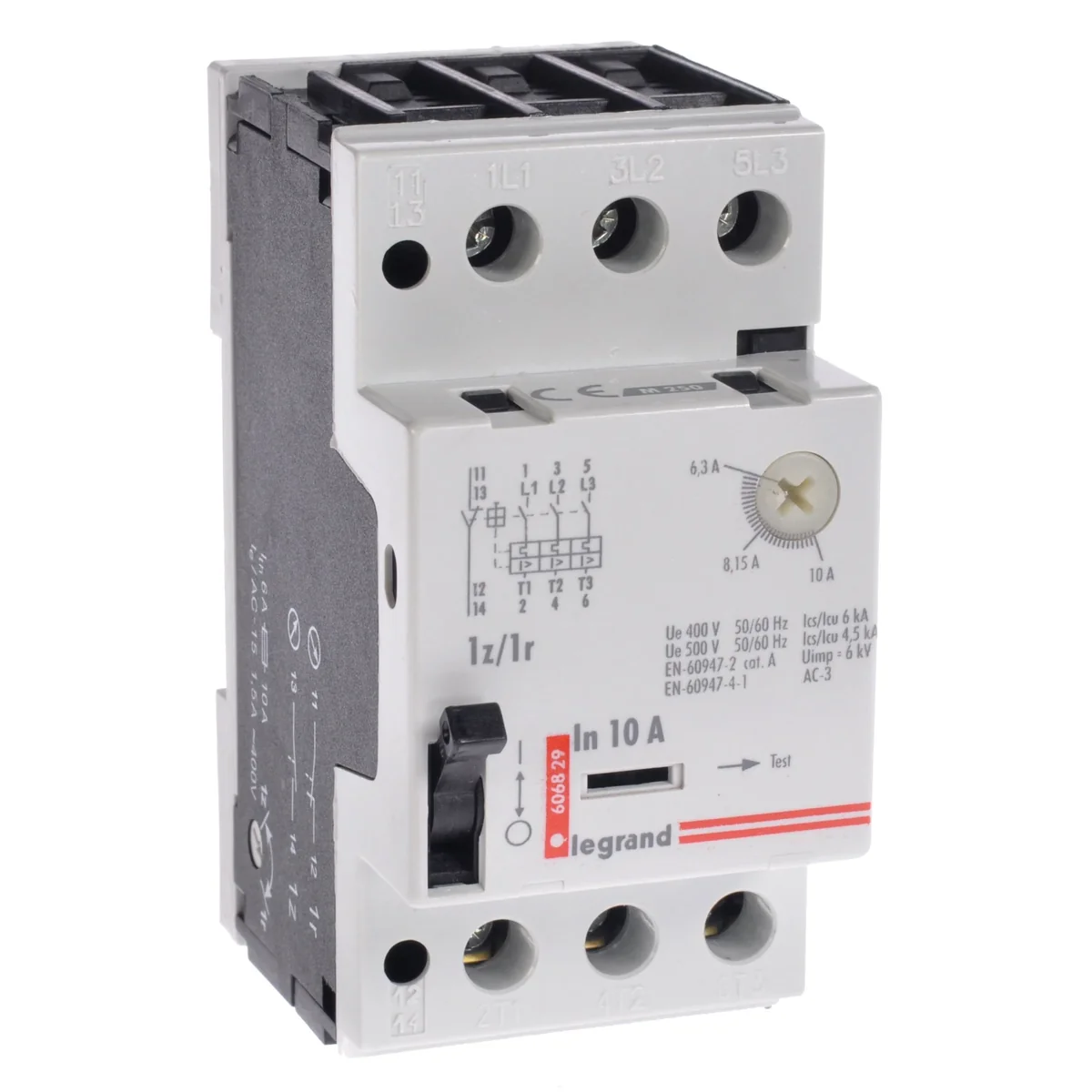

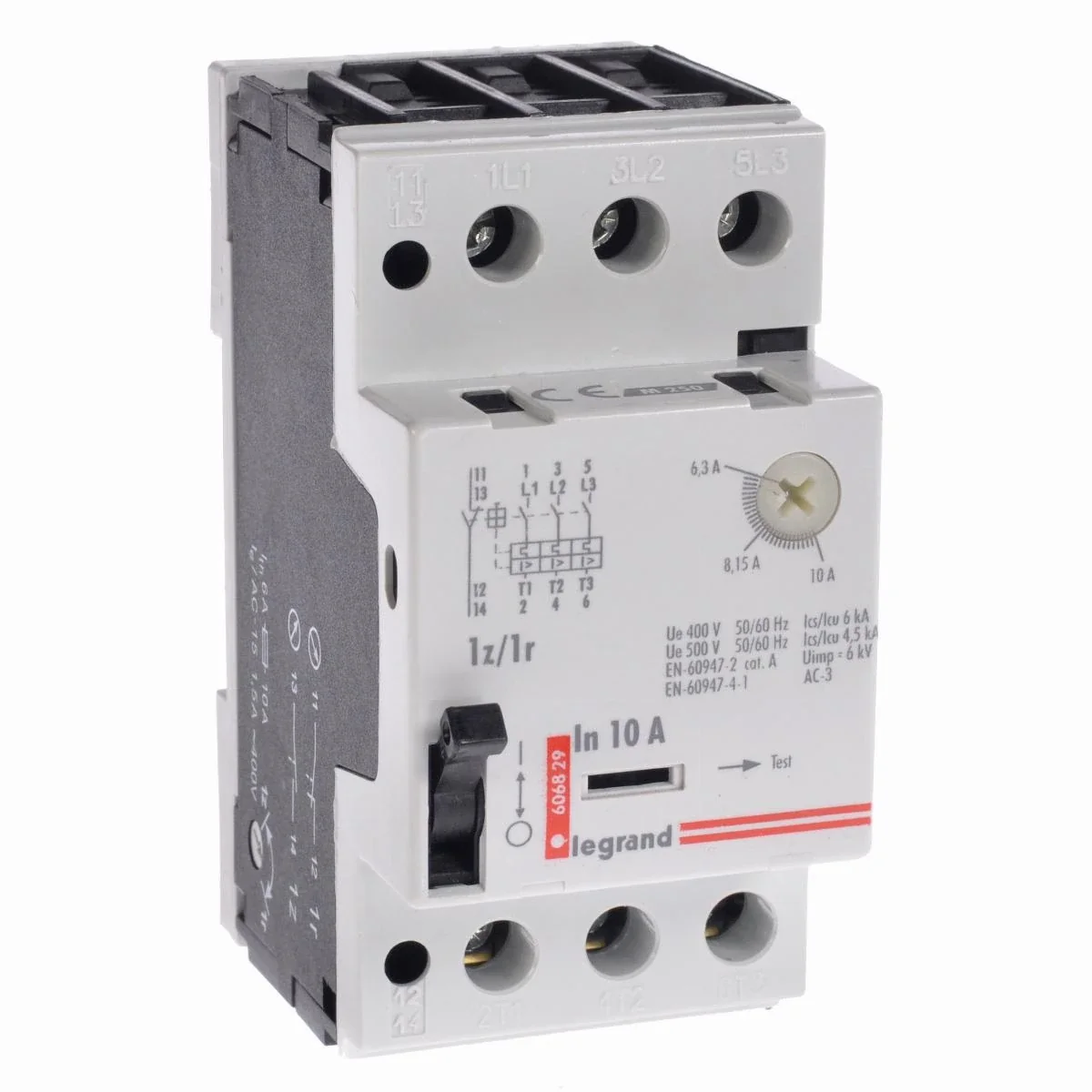

M250 1NO/1NC 10.0A power circuit breaker 606829
Lokaler Index:
ASN040LEGR
Katalognummer:
606829
Hersteller:
LEGRAND
Level of security: IP20
Preis:
515,41 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Current range of thermal releases: 6.3 - 10 A
Opening current of electromagnetic releases (+/- 20%): 140 A
Width in 17.5 modules: 2.5
Opening current of electromagnetic releases (+/- 20%): 140 A
Width in 17.5 modules: 2.5
Technische Daten
-
Level of securityIP20
-
PKWIU27.12.22.0
Weitere technische Daten
-
Number of poles (total)2
-
Rated voltage230 V
-
Rated impulse withstand voltage Uimp6 kV
-
Rated fault current0.3 A
-
Current limiting class3
-
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorNo
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth44 mm
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Number of protected poles2
-
Rated insulation voltage Ui440 V
-
Rated current10 A
-
Leakage current typeAC
-
Rated short-circuit breaking capacity according to EN 610096 kA
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceNo
-
Pollution degree3
-
Width in number of modular spacings2
-
Do instalacji podtynkowychNo
-
Connectable conductor cross section solid-core1 ... 35 mm²
Hersteller-Details
-
HerstellerLegrand Polska Sp. z o.o.
-
Adresse57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
