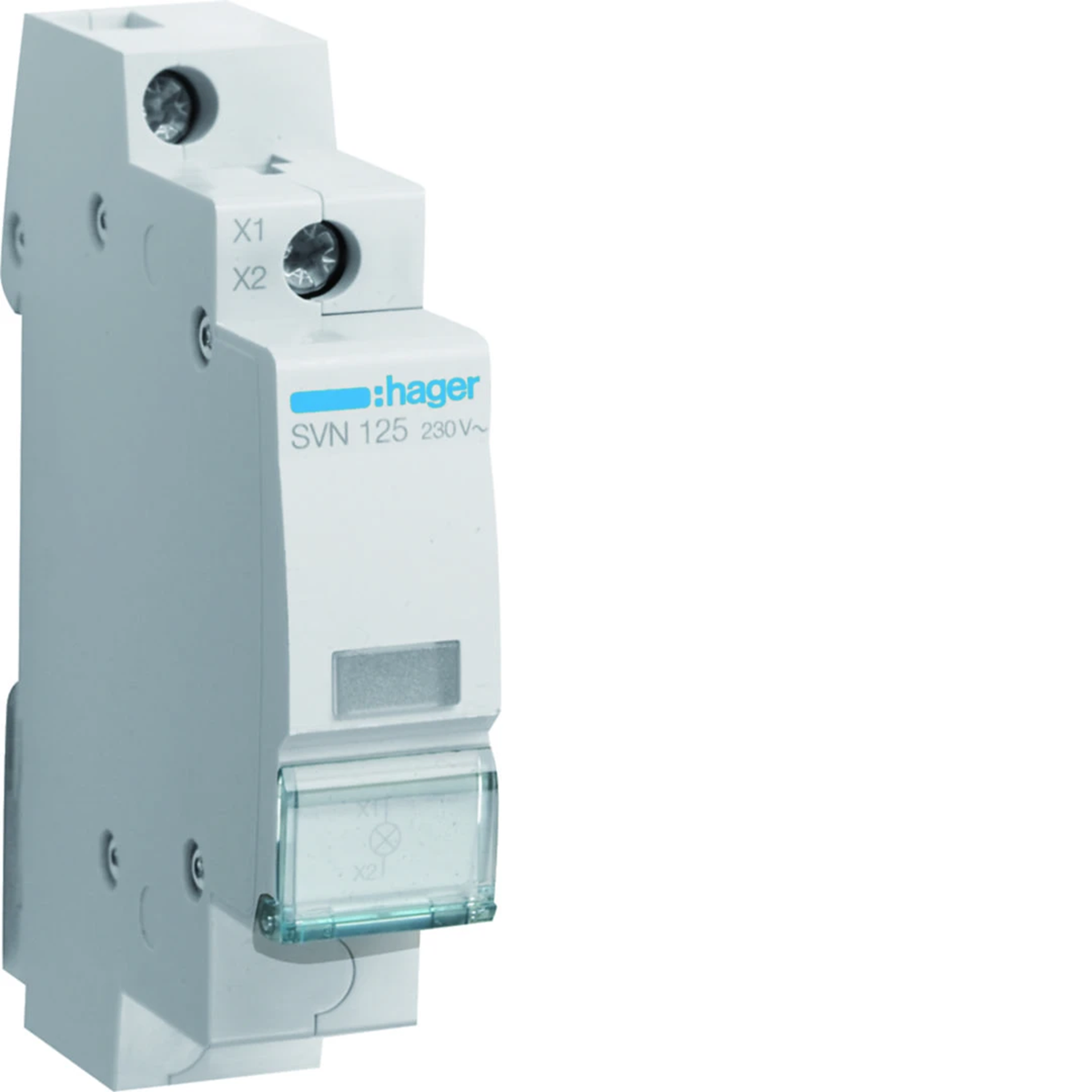

LED indicator lamp, transparent 230V AC SVN125

Name: LED indicator lamp, transparent 230V AC
Brand: HAGER
SKU: AKS011HAGE
Price: 51.01 PLN

local index:

AKS011HAGE

Catalog No:

SVN125

EAN code:

3250615721686

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 50/60

Depth [mm]: 62

Rated insulation voltage [V]: 250

See full description

Price:

51,01 zł

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

• standards:
button: DIN VDE 632
signal lamp: DIN VDE 710
• rated operating voltage of the button: 250 V AC
• 230 V AC LED indicator light
• LED diodes with durability up to 100,000 h
• terminals:
stranded 6 mm², solid 10 mm²
• touch protection according to DIN VDE 0106 part 100

Technical data

Rated frequency [Hz]

50/60
Rated insulation voltage [V]

250
Width [mm]

17.5
Height [mm]

83
Source of light

LED
Number of modules

1
PKWIU

27.90.20.0

Depth [mm]

62
power loss [W]

0.8
Working temperature [°C]

-20 to 50
Rated impulse voltage [kV]

4
Connection type

With a screw
AC rated voltage [V]

230

Other technical data

Lamp type

LED
Max. lamp power

0.8 W
Voltage type

AC
Built-in depth

62 mm

Lamp socket

Other
Rated voltage

230 V
Width in number of modular spacings

1
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	12 pcs.	144 pcs.	3456 pcs.
Weight (kg)	0,480	5,760	138,240
Width (m)	0,090	0,310	0,800
Length (m)	0,080	0,230	1,090
Depth (m)	0,220	0,360	1,200
