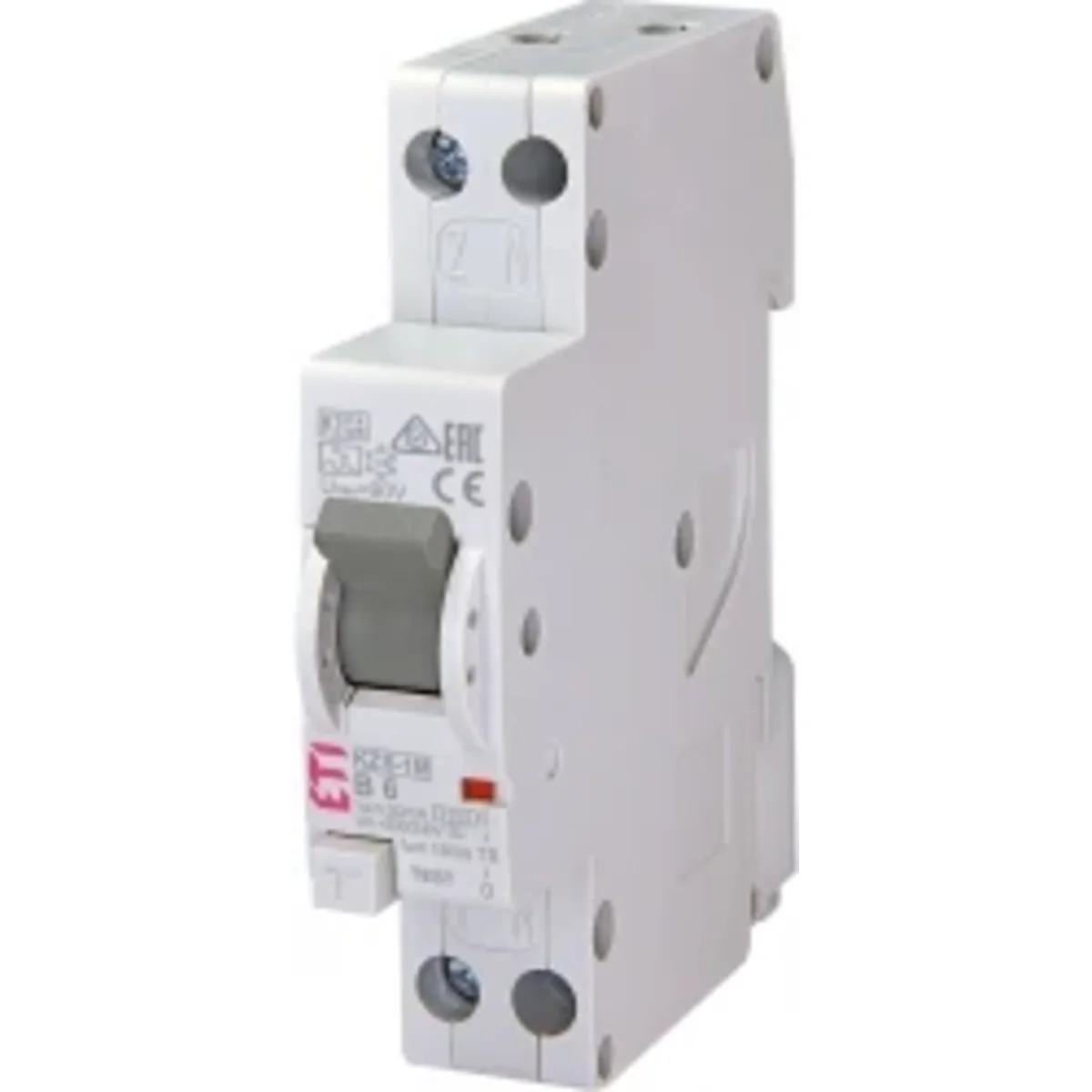

KZS-1M 1p+N A B6/0.03 6kA Differential circuit breaker with overcurrent protection (bottom supply) 002175201
local index:
ARB026ETIP
Catalog number:
002175201
EAN code:
3838895548515
Manufacturer:
ETI POLAM
Price:
455,00 zł
gross / pcs.
(including VAT 23%)
Add to inquiry
Print
Ask about the product
Technical data
-
PKWIU27.12.22.0
Other technical data
-
Number of poles (total)2
-
Rated voltage230 V
-
Rated fault current0.03 A
-
Current limiting class3
-
Frequency50 Hz
-
Concurrently switching neutral conductorYes
-
Built-in depth69 mm
-
Connectable conductor cross section solid-core1 ... 10 mm²
-
Number of protected poles1
-
Rated current6 A
-
Leakage current typeA
-
Rated short-circuit breaking capacity according to EN 610096 kA
-
Release characteristicB
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 10 mm²
Manufacturer details
-
ManufacturerETI Polam Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18 Polska
-
E-mail
Files to download
Report an error
